Tecnogen H6500TE
Three-Phase Generator
Electric Start with ATS

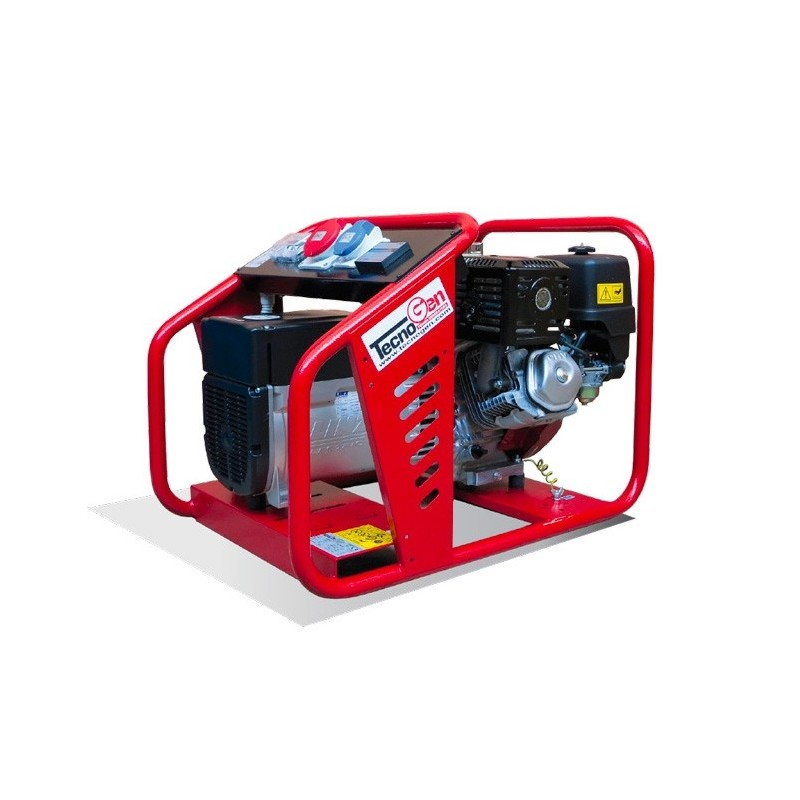

Tecnogen Compact H6500TE - Three-Phase Generator with Electric Start and ATS

T ecnogen H6500TE is a professional petrol generator from the Compact series , intended for industrial and professional applications. Equipped with a 270 cm³ Honda GX270 engine and 3000 RPM , it delivers up to 5.4 kVA three-phase 400V and 3.8 kVA single-phase 230V . The electric-start unit is designed to ensure operational continuity and reliability in construction site and service contexts.

Available models

• H6500TE with standard panel
• H6500TE with ATS panel only

TECHNICAL SPECIFICATIONS

The Tecnogen H6500TE generator set is petrol -powered and integrates a 270 cm³ single-cylinder Honda GX270 OHV engine with a high-efficiency combustion system. It operates at 3000 RPM with a maximum power of 4.4 kW at 400V three-phase and 3.1 kW at 230V single-phase , with stabilized power delivery. The system includes a 6 L tank , average consumption of 1.5 L/h at 75% load , 12V electric start , low oil level protection , thermal protections on the outputs and mounting on anti-vibration mounts . AVR preparation available upon request at the time of ordering.

FUNCTIONAL SPECIFICATIONS

Honda GX270 professional engine

The Honda GX270 engine delivers industrial reliability with OHV technology for optimized combustion, reduced fuel consumption and long operating life in heavy-duty applications.

12V electric start

The electric start system allows for immediate generator start-up, reducing start-up times and improving operational efficiency in professional environments.

Engine and system protections

Tecnogen H6500TE integrates thermal protection sockets and a low oil level system, safeguarding the engine and connected loads from critical operating conditions.

Anti-vibration structure

The frame with anti-vibration supports reduces mechanical stress and noise, improving the stability and durability of the professional generator.

Dual output 400V / 230V

The three-phase and single-phase configuration allows for flexible use of the Tecnogen H6500TE generator, adaptable to mixed industrial and professional loads.

AVR ready

The option of integrating an AVR (Automatic Voltage Regulator) upon request allows for more stable voltage regulation for use with sensitive equipment.

Characteristics

• Professional petrol generator
• 400V three-phase generator set
• Maximum power at 230V 3.8 kVA / 3.1 kW
• Maximum power at 400V 5.4 kVA / 3.1 kW
• Honda GX270 single-cylinder OHV 270 cm³ engine
• Engine speed 3000 RPM
• Electric start
• Fuel consumption 1.5 L/h at 75% load
• 6 L fuel tank
• Low engine oil level protection system
• Thermal and magnetothermal protection on sockets
• Tubular frame with anti-vibration supports
• Integrated exhaust silencer
• AVR regulator provision on request
• ATS framework selectable from drop-down menu
• Industrial assembly made in Italy
