Pramac PMD5050S
3.6 kW Diesel Generator
Trailer-mounted with AVR
MPN: PMD5050S
400V - 4 kW
418 cc
Diesel
Warranty 2 years
Shipped on Pallet
Pramac PMD5000S - 5 kW Silent Diesel Generator

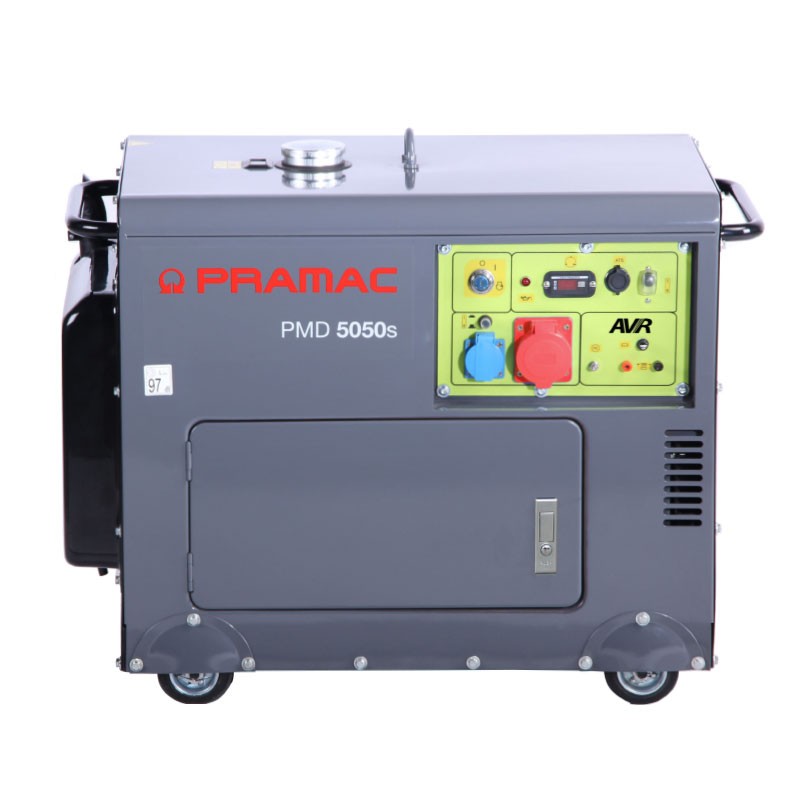

The Pramac PMD 5050S generator is an ideal diesel generator for those seeking reliability, power and operating comfort. The OHV diesel engine guarantees consistent performance with reduced fuel consumption, while the electric starting system simplifies use. Advanced soundproofing ensures low noise levels, making it suitable even for noise-sensitive environments. The structure with integrated handles and wheels facilitates transport and movement, while the 14.5 L tank offers up to 11 hours of autonomy at 50% load . The digital multimeter allows you to monitor voltage, frequency and operating hours, ensuring scheduled maintenance and optimal operation. The automatic voltage regulator (AVR) maintains stable current in all conditions. The integrated panel includes Schuko and CEE sockets, controls, instruments and complete protections , including low oil level and fuses, with a 12V battery charging output. Rated power up to 3600 W, perfect for professional and domestic applications.
Functional specifications
Three-phase Easy to transport and reliable
The Pramac PMD 5050S generator features ergonomic handles and four integrated wheels for easy movement. The central lifting eye allows for easy transport, even by mechanical means. The 14.5 L tank guarantees up to 11.3 hours of operation at 50% load, with a fuel consumption of 1.28 L/h , allowing for prolonged, uninterrupted operation.
Power 4 kW max and AVR
The Pramac PMD 5050S provides a nominal power of 3600 W and a maximum of 4000 W in three-phase , with single-phase capacity up to 1200 W nominal. The Electronic Voltage Regulator (AVR) maintains a constant voltage output, protecting sensitive equipment and ensuring reliable performance under any load conditions.
Low Noise
With its compact dimensions and weight of 185 kg , the generator is robust yet easy to position. The sound power of 97 dBA and the sound pressure level of 69 dBA at 7 meters ensure low noise levels, ideal for work or home environments.
Control Panel
Commands
- Ignition key OFF - ON - START
Instrumentation
- Voltmeter
- Hour counter
- Frequency meter
- Fuel Level
Protections
- Magneto-thermal protections
- Oil Guard (low oil level)
- 9A fuses (12V DC)
Exits
- 12V DC battery charger
Sockets
- SCHUKO 230V 16A IP44
- 3P+N+T CEE 400V 16A IP44
Watch the video
PMD Generator Tutorial
Maintenance Tutorial
Scope of use
Given its soundproofing and AVR features, this Pramac diesel generator can be used:
- Shipbuilding and professional sector
- Logistics and Warehouses
- Outdoor events and entertainment
- Home and professional emergency and backup
Characteristics
- Three-phase generator
- Reliable OHV diesel engine
- Electric start with battery
- 14.5 L tank
- Rated power 3.6 kW - 4 kW max
- Electronic voltage regulator AVR
- Low oil protection and fuses
Technical Data
| Fuel | Diesel |
| Start-up | Electric |
| Voltage | 400 V |
| Maximum Power | 4 KVA - 4 KW cos φ 1 |
| Nominal Power | 3.6 KVA - 3.6 KW cos φ 1 |
| Nominal Horsepower | 8.4 HP |
| Motor | 186FAD - 8.4 HP 418 cc |
| Phase | Three-phase |
| Oil Capacity | 1.65 L |
| Low Oil Level Protection | YES |
| Fuel Tank Capacity | 14.5 L |
| Autonomy 50% Load | 11.3 h |
| AVR | YES |
| Noise level at 7 m | 69 dB |
| Voltmeter | YES |
| Hour meter | YES |
| Frequency meter | YES |
| Fuel Level | YES |
| Magnetothermal Protection | YES |
| Oil Guard | YES |
| ATS framework | Optional |
| Battery Charger Output | 12 V |
| Schuko socket 16 A IP44 | 1 |
| 3P+N+T CEE 400V 16A IP44 | 1 |
| Dimensions | 93 x 74 x 54 cm |
| Weight | 161 kg |
Technical Data
| Fuel | Diesel |
| Start-up | Electric |
| Voltage | 400 V |
| Maximum Power | 4 KVA - 4 KW cos φ 1 |
| Nominal Power | 3.6 KVA - 3.6 KW cos φ 1 |
| Nominal Horsepower | 8.4 HP |
| Motor | 186FAD - 8.4 HP 418 cc |
| Phase | Three-phase |
| Oil Capacity | 1.65 L |
| Low Oil Level Protection | YES |
| Fuel Tank Capacity | 14.5 L |
| Autonomy 50% Load | 11.3 h |
| AVR | YES |
| Noise level at 7 m | 69 dB |
| Voltmeter | YES |
| Hour meter | YES |
| Frequency meter | YES |
| Fuel Level | YES |
| Magnetothermal Protection | YES |
| Oil Guard | YES |
| ATS framework | Optional |
| Battery Charger Output | 12 V |
| Schuko socket 16 A IP44 | 1 |
| 3P+N+T CEE 400V 16A IP44 | 1 |
| Dimensions | 93 x 74 x 54 cm |
| Weight | 161 kg |
