Pramac PX 8000 Three-Phase
4.8 kW Wheeled Generator

Pramac PX 8000 Three-Phase - Trailer-Mounted Generator with 400V AVR

The Pramac PX 8000 Trifase three-phase generator is a portable machine designed for intensive professional and semi-professional use . Ideal for light industrial applications, construction sites , events and rentals , it guarantees continuous power up to 4.8 kW at 400V with automatic voltage regulation ( AVR ) for a stable supply. The compact frame with folding handle and integrated wheel kit ensures easy transport and quick use in the field.

TECHNICAL SPECIFICATIONS

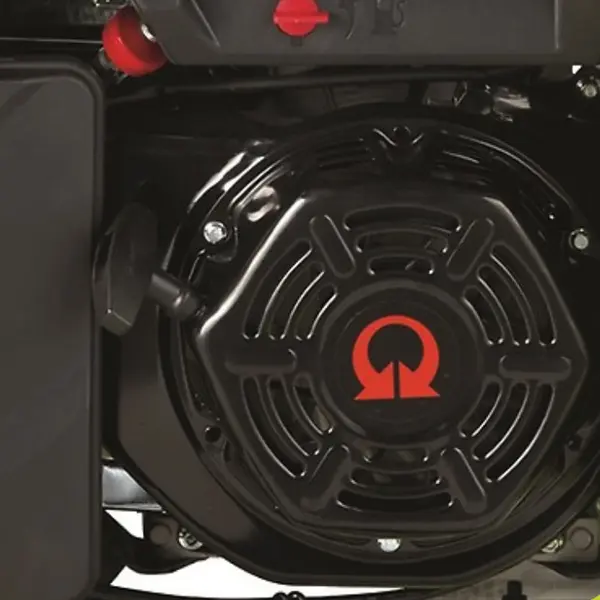

Powered by a 420cc Pramac SR190F air -cooled engine with electric start , the three-phase PX 8000 generator operates at 3000 RPM . The 27 L steel tank allows for a runtime of over 13 hours at 75% load, with a consumption of 2.06 L/h. The power output is 4.0 kW (5.0 kVA) in continuous service and up to 4.8 kW (6.0 kVA) in emergency mode at 400V three-phase , with a power factor of 0.8.

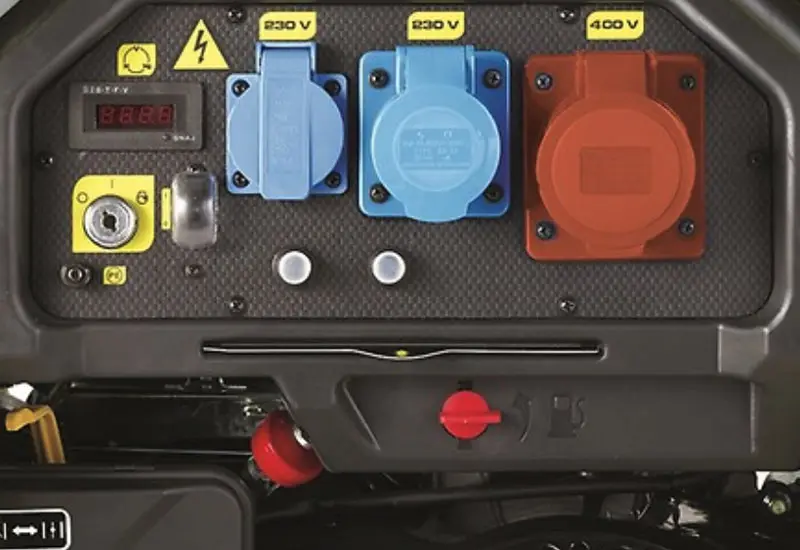

The electrical panel includes Schuko and CEE IP44/IP54 sockets, and a BEIBEI F-class alternator with IP23 protection. The AVR system ensures stable voltage even with variable loads.

FUNCTIONAL SPECIFICATIONS

AVR Automatic Adjustment

It ensures voltage stability and quality, which is essential for electronic equipment and three-phase motors .

Integrated digital display

Monitor voltage , frequency and running hours in real time for precise operational control.

Advanced engine protection

Oil guard system and thermal protection prevent damage from overheating or low oil level.

Maximum mobility and ease of use

Sturdy frame with folding handle and integrated wheels , for quick movement without tools.

Among the controls on this petrol generator are:

• Electric start ;
• A 230V 16A IP54 Schuko socket ;
• One 230V 16A IP44 CEE socket
• A 400V 16A IP44 CEE socket
• Engine ON/OFF switch , voltmeter, ammeter, frequency meter
• Fuel level warning light ,

Among the protections this device is equipped with are:

• Oil Guard system protects the engine if the oil level drops below a safe level. The generator is also equipped with an air valve .
• Engine thermal protection

Characteristics

• 4.8 kW generator with stable power
• Retractable handle and large tires for transport
• Electric start
• Controls with ON/OFF switch and counters
• OHV petrol engine with 420cc displacement
• Oil bath lubrication
• Air cooling
• 27 L fuel tank
• Oil Crankcase 1.1 L
• 2-pole alternator with AVR
• Noise level at 7 meters 69 dB

How to choose a portable generator

After describing the features of the Pramac PX 8000 three-phase portable generator, we'd like to provide some helpful advice on choosing the product that's best for you. First, let's focus on the following three points:

• Product use : if you need the generator for occasional emergency use, for long-term or limited-time use;
• Voltage type : evaluate whether you need a generator compatible with domestic current (single-phase) or a three-phase industrial device;
• Amount of power : the need for energy support must be assessed

Don't hesitate to contact us with any questions or if you need further information!
