CGM 4000IE
3.6 kW Petrol Power Generator

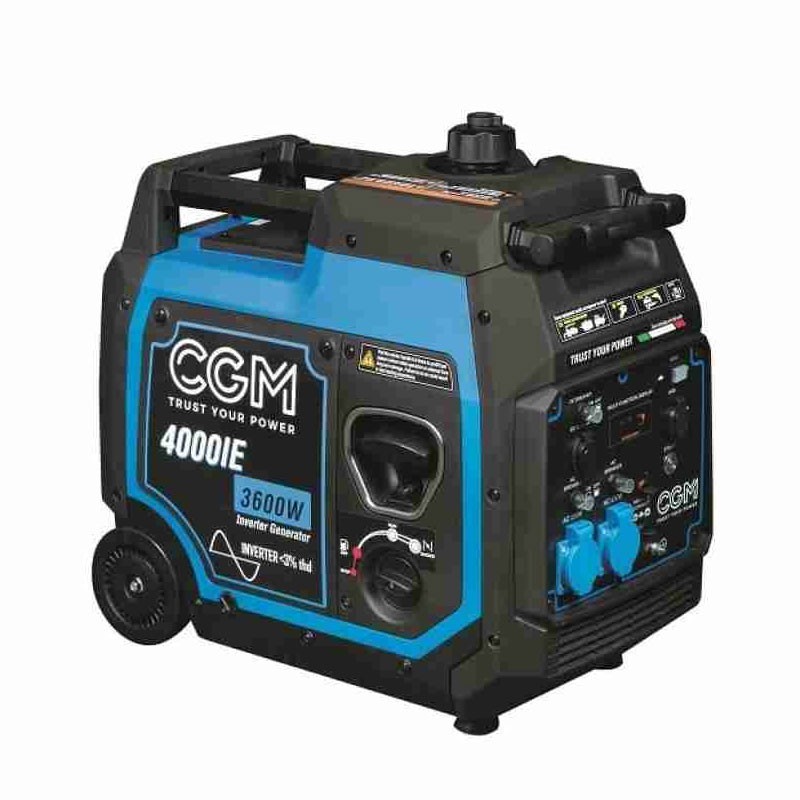

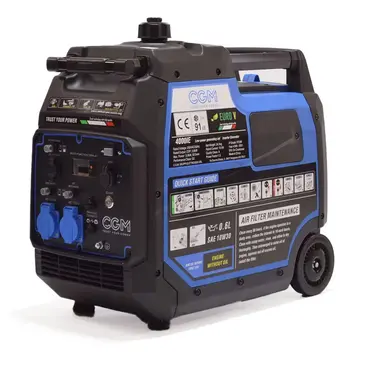

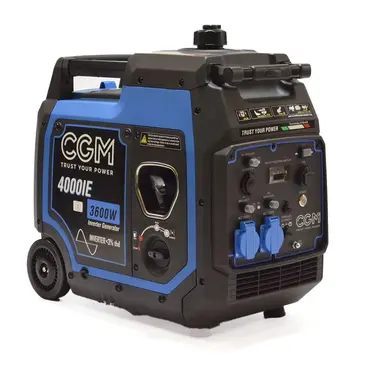

CGM 4000IE - 3.6 kW Petrol Power Generator

The CGM 4000IE power generator, part of the CGM Super Power Inverter series, represents a practical and efficient solution for those who need portable and reliable energy in emergency situations or temporary applications. CGM 4000IE is designed to operate at 3000 rpm , maintaining a perfect balance between power and portability.

The CGM 4000IE generator is ideal for those who work in environments where it is necessary to minimize noise and emissions, such as construction sites, artisan workshops, precision workshops and industrial environments. It is also suitable for those who need to power sensitive electronic equipment, such as computers and measuring instruments, thanks to the stable energy quality produced by the inverter generator.

The CGM 4100IE generator set Super Power Inverter series has single-phase operation and max power of 3.6 kW (4 KVA) . Furthermore, CGM 4000IE thanks to the extractable handle and the two-wheel trolley is easy to transport, without effort and in complete safety.

Functional specifications

This CGM inverter generator has a single-phase voltage of 230V and is powered by petrol via a large 7.8 L tank that allows an average autonomy of 7.2 hours at 75% of the load. The start is Electric with Battery and Manual with Rope.

Generator set 3000 rpm

The 3000 rpm generator sets are designed for emergency use.

Generator with AVR

From an electrical point of view, the single-phase CGM 4000IE generator set  It is designed to offer stable and safe voltage.

Remote Control for Remote Shutdown

With the convenient remote control provided, it will be possible to remotely manage the generator shutdown and, if necessary, hot starts.

Series Alternator

The standard alternator is of the PMG (permanent magnet) type, which brings significant benefits in terms of weight and size reduction and improved efficiency in the entire energy management process.

Safety Indicators

There are a number of safety indicators : the overload indicator (red) which means the generator is overloaded and the AC protector is activated; running indicator (green) which indicates when the generator is starting and the output is normal; oil alarm indicator (yellow) which automatically stops the engine when the oil level is below the limit.

FIELDS OF APPLICATION

• Emergency
• Homes
• Mobile installations
• Campsites
• Hobbies
• Shipyards

Characteristics

• Petrol generator
• Super Power Inverter Series
• 3000 rpm
• Electric Start
• AVR Voltage Regulation
• Petrol - Tank 7.8 L

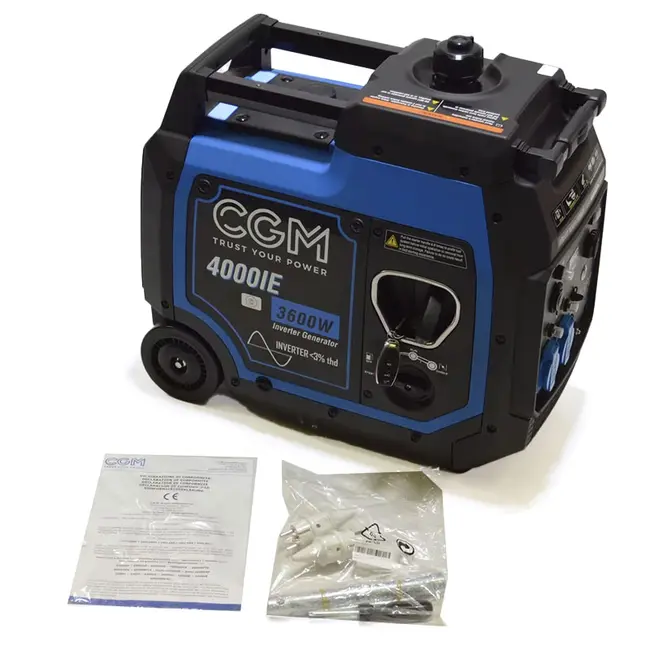

Standard Equipment

• Remote Control Remote Ignition
• Maintenance Kit
• Instruction Manual
