Fral FD33ECO BLU
Professional Portable Dehumidifier

Fral FD33ECO - Professional Portable Dehumidifier

Fral FD33ECO professional portable dehumidifier Fral designed to eliminate condensation and obtain optimal humidity . The dehumidifier is portable, equipped with 4 pivoting wheels in order to use it wherever necessary.

It presents itself as a high-performance dehumidification device, with a sturdy structure in galvanized sheet metal painted with epoxy resins . Removing humidity from homes , shops , offices or other particularly humid environments such as archives , libraries , laundries has never been easier: Fral FD33ECO is the perfect ally for dehumidifying environments , containing condensation mold and preventing humidity on the walls from ruining rooms.

This Fral FD33ECO professional dehumidifier uses a high-efficiency polyurethane filter that is washable and easily replaceable ; the condensation collection tray of the portable dehumidifier is very capacious and has the possibility of direct discharge . On this indoor dehumidifier , it is in fact possible to install a condensation lifting pump in place of the tray that allows it to be pumped up to a height of 15 m from the level where the Fral dehumidifier is positioned.

This dehumidifier has an ENERGY METER , which indicates the ACTUAL CONSUMPTION of the device.

Can mount universal condensate pump.

Functional specifications

The structure and sheets of Fral FD33ECO are hot-dip galvanized and then painted with epoxy powders , guaranteeing this professional dehumidifier high resistance and a long life over time.

The high-efficiency air filter makes this dehumidifier ideal for professional use: thanks to the supplied washable and replaceable polyurethane filter, Fral FD33ECO is a dehumidifier air conditioner suitable for extracting and reducing the amount of humidity in the air, acting on rising humidity and therefore reducing environmental pollution .

The Fral FD33ECO compressor It is of the rotary type, mounted on anti-vibration mounts . In the upper part of this humidity control machine, there is a simple and intuitive control panel , to adjust the Fral dehumidifier according to your needs.

Refrigeration circuit and fan

This dehumidifier for home and other indoor environments, mounts a cutting-edge refrigeration circuit :

• Evaporator : the battery is made of copper tubes . The smooth tubes guarantee a high efficiency of the dehumidifier, significantly reducing energy consumption even at low relative humidity.
• Condenser : the coil is made of copper tubes and aluminum fins ; the wide pitch of the condenser fins ensures resistance to dust, long life of the machine and easy maintenance.
• Ventilation : This dehumidifier uses axial ventilation . The fan is statically and dynamically balanced. Durable and long-lasting.

Refrigerant circuit leak tests, electrical discharge tests and functional tests are performed.

Condensate container and pump

The Fral FD33ECO portable dehumidifier has a very large and easily removable condensation collection container , fitted as standard . The Fral FD33ECO anti-humidity machine it is also designed for connection to the fixed condensate drain .

Optional for all versions, the condensate lifting pump , which replaces the condensate collection container and allows the condensed water to be expelled from the dehumidifier up to a height of 15 m , compared to the position of Fral FD33ECO .

It is also equipped with a block alarm in case of pump malfunction , the portable dehumidifier blocks instantly . Alternatively, a condensation lifting pump kit is available that can be easily applied to the outside of the dehumidifier, equipped with a malfunction alarm and machine block .

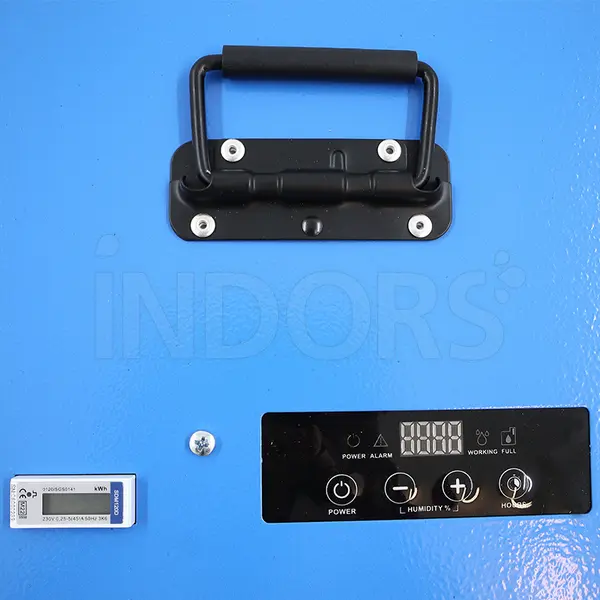

Command detail

Exhaust Detail

Technical specifications

The LRA starting current of the small and silent dehumidifier we are describing is 8.5 A. The maximum power of this machine is 480 W , with an absorbed power of 2.3 A.

This wheeled dehumidifier has an R290 refrigerant. With an air flow rate of 350 m3/h , this low consumption dehumidifier has an operating range for temperatures between 6 ÷ 33 °C, with an operating range for relative humidity between 35 ÷ 93 % (with T < 30°C), between 35 ÷ 90 % (with T between 30 ÷ 32 °C) and humidity between 35 ÷ 70 % (with T between 32 ÷ 35 °C).

The capacity of the Fral FD33ECO exhaust container is 7 kg . The connection on the machine for the exhaust is 16 mm . The sound pressure of this portable professional dehumidifier, measured in free field at a distance of 3 meters is 43 dB . This home dehumidifier has dimensions 32 x 59 x 33 cm and weighs 23.5 kg .

Condensed water at different temperatures

Fields of application

• Houses
• Archives
• Industry
• Craftsmanship
• Bathrooms
• SPA
• Swimming pools
• Taverns
• Bookshops
• Offices
• Hotel
• Shops

Characteristics

• Very light professional dehumidifier
• Portable with 4 swivel wheels
• Sturdy structure in galvanized sheet metal
• Automatic dehumidifier
• Counter
• Smooth tube evaporator
• Washable and easily replaceable filter
• Prepared for fixed exhaust
• Refrigerant gas R290
• ENERGY METER, which indicates the ACTUAL CONSUMPTION
• Condensation container capacity 7 kg
• It has an automatic digital dehumidifier (humidistat)
• Weight 23.5 kg
• Professional quality
• Made in Italy

Standard Equipment

• Manual
• Hour meter
• Electronic humidistat
• Energy Meter

Optional

• Condensate lifting pump
• External condensate lifting pump kit
• Electronic control
