Fral FDNP33
Professional Dehumidifier

Fral FDNP33 - Professional Portable Dehumidifier

Fral FDNP33 is a professional portable dehumidifier belonging to the FDNP series, robust and capable of providing high performance . Mounted on 2 wheels for easy transport, Fral FDNP33 has a solid structure in galvanized sheet metal painted with epoxy resins , to facilitate movement on construction sites or in industrial environments , easily avoiding obstacles.

It has a connector for pump connection - available separately.

These professional dehumidifiers have a washable and easily replaceable high-efficiency polyurethane filter , with a large condensation collection tray with the possibility of direct drainage . As an alternative to the tray, it is possible to install a condensation lifting pump that pumps to a height of 3.5 m from the level where Fral FDNP33 is positioned.

The distinctive feature of this Fral FDNP33 dehumidifier is an evaporation battery made of smooth aluminum tubes . This results in lower energy expenditure and the maintenance, in the long term, of a very high efficiency , even when the relative humidity is low .

This Fral FDNP33 professional dehumidifier has an hour meter and hot gas defrosting .

Technical specifications

The nominal absorbed power is 380W , with a starting current of 2.3A . The air flow rate of this dehumidifier is 380 m3/h . The operating range in degrees is from 1÷35 °C .

The dimensions of this machine are 48 x 75 x 37 cm and it weighs 35 kg .

Functional specifications

Solid structure and battery

The structure and the sheets are hot-dip galvanized, then painted with epoxy powders guarantee high resistance and a long life over time to Fral FDNP33. This dehumidifier mounts a rotary compressor, placed on anti-vibration mounts.

Refrigeration circuit

Fral FDNP33 is composed of a refrigeration circuit for:

• Evaporator : where the battery is made of smooth aluminum tubes. The smooth tubes guarantee a high efficiency of the dehumidifier, significantly reducing energy consumption even at low relative humidity.
• Condenser : the battery is made of copper tubes and aluminum fins, the wide pitch of the condenser fins ensures resistance to dust, long life of the machine and easy maintenance.

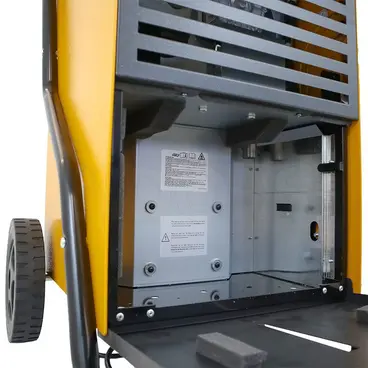

Condensate container and lifting pump

Fral FDNP33 has a condensate collection container fitted as standard. Roomy, removable, the machine is also set up for a fixed condensate drain . The condensate lifting pump , which can be purchased as an optional , replaces the container already supplied, allowing the condensed water to be pumped to a maximum height of 3.5 m .

Fan and air filter

The fan is axial type, statically and dynamically balanced, it can be applied to the outside and is equipped with an alarm in case of malfunction of the machine. This portable Fral dehumidifier is made of polyurethane, an air filter easily washable and replaceable.

Control Panel

A microprocessor controls the hot gas defrost cycles. There is also a timer and an alarm screen. The control panel is located on the top of the machine, intuitive and easily visible.

Testing

Refrigerant circuit leak tests, electrical discharge tests and functional testing are performed. For safe use of the dehumidifier.

Fields of Application

• Drying out buildings after floods
• Water Damage Restoration
• For maintaining a humidity-free environment in warehouses, archives, libraries, industries
• For storage of products sensitive to humidity such as: medicines, wooden and iron objects, paper and leather products, electronic devices, etc.

Characteristics

• Portable Dehumidifier Professional Robust
• High performance with low energy consumption
• High efficiency polyurethane filter, washable and easily replaceable
• Evaporator battery with smooth aluminum tubes
• Continuous Discharge
• Complete control panel
• It has an automatic digital dehumidifier (humidistat)
