Fral FD33ECO cod. 2000
Portable Dehumidifier

Fral FD33ECO cod. 2000 - Portable Dehumidifier to Eliminate Condensation

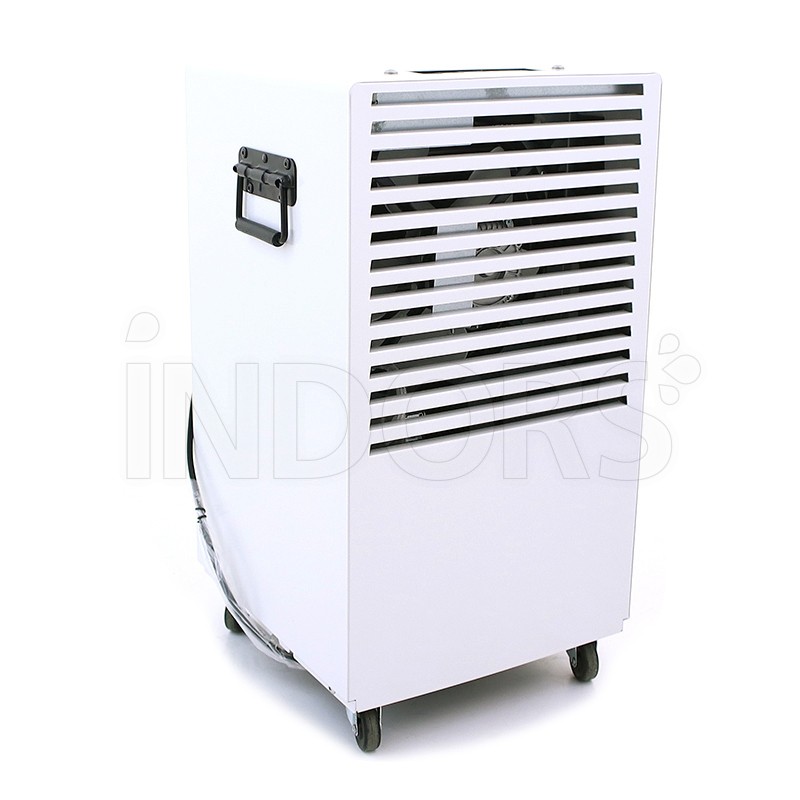

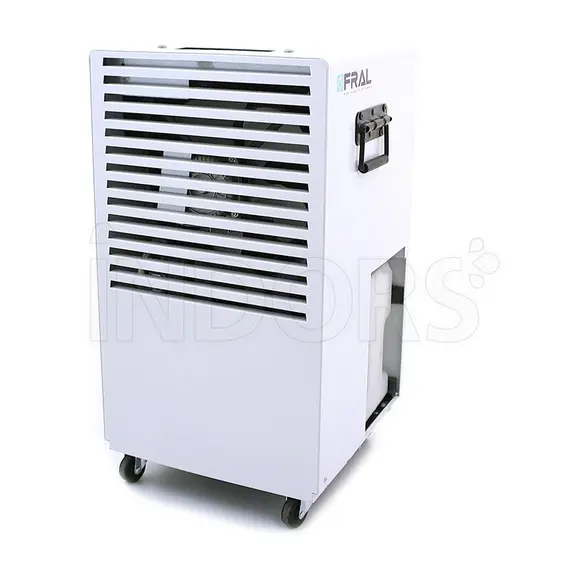

Fral FD33ECO , code FD33ECO.2000, is a Fral dehumidifier designed to eliminate condensation in the home and obtain optimal humidity . Portable dehumidifier, Fral FD33 ECO is equipped with 4 pivoting wheels in order to use this dehumidifier for the home (and for other internal environments) wherever it is necessary!

Belonging to the Fral FDNF-FDND series of portable dehumidifiers , Fral FD33ECO presents itself as a high-performance dehumidification device, with a robust structure in galvanized sheet metal painted with epoxy resins .

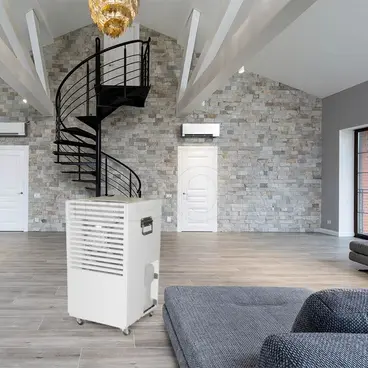

Removing humidity from your home , shop , office or other particularly humid environments such as archives , libraries , laundries has never been easier: in Fral FD33ECO you will find the perfect ally for dehumidifying environments , containing condensation mould and preventing humidity on the walls from ruining the rooms.

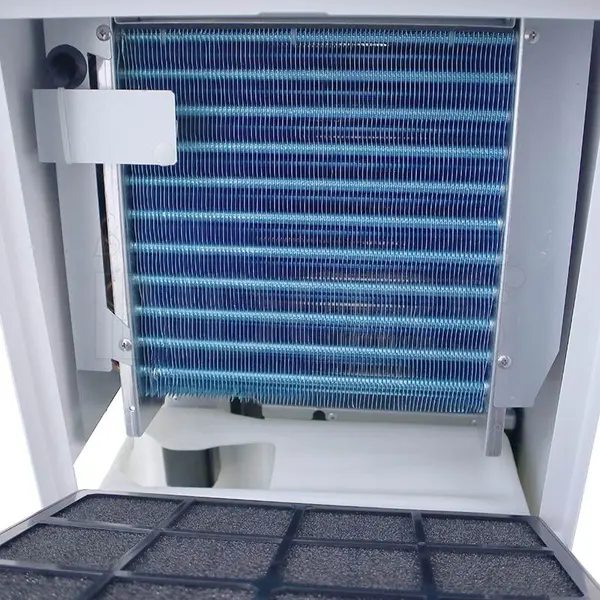

With a filtering system, the Fral FD33ECO professional dehumidifier uses a high-efficiency polyurethane filter that is washable and easily replaceable ; the condensation collection tray of the portable dehumidifier we are describing is, however, very capacious and with the possibility of direct drainage .

In fact, on this indoor dehumidifier , it is possible to install a condensation lifting pump in place of the tray which allows it to be pumped up to a height of 3.5 m from the level at which the Fral dehumidifier is positioned.

Technical specifications

The structure and sheets of Fral FD33ECO are hot-dip galvanized and subsequently painted with epoxy powders , guaranteeing this professional dehumidifier high resistance and a long life over time.

The high-efficiency air filter makes Fral FD33ECO a portable dehumidifier ideal for professional use: thanks to the supplied washable and replaceable polyurethane filter, Fral FD33ECO is a dehumidifier air conditioner suitable for extracting and reducing the amount of humidity in the air, acting on rising humidity and therefore reducing environmental pollution .

The Fral FD33ECO compressor is of the rotary type, mounted on anti-vibration mounts .

This silent dehumidifier has a microprocessor that controls the hot gas defrost cycles , the compressor timer and the alarm board .

At the top of this humidity control machine, there is a control panel : simple , intuitive , to adjust the Fral dehumidifier according to your needs!

Refrigeration circuit and fan

This dehumidifier for home and other indoor environments, mounts a cutting-edge refrigeration circuit . In particular:

• Evaporator : as mentioned, the battery is made of copper tubes . The smooth tubes guarantee a high efficiency of the dehumidifier , significantly reducing energy consumption even at low relative humidity.
• Condenser : the coil is made of copper tubes and aluminum fins ; the wide pitch of the condenser fins ensures resistance to dust, long life of the machine and easy maintenance.
• Ventilation : This dehumidifier uses axial ventilation . The fan is statically and dynamically balanced. Durable and long-lasting.

Refrigerant circuit leak tests, electrical discharge tests and functional tests are performed.

Condensate container and pump

The Fral FD33ECO portable dehumidifier has a very large and easily removable condensation collection container , fitted as standard . The Fral FD33ECO anti-humidity machine is also designed for connection to a fixed condensation drain .

Optional for all versions, the condensate lifting pump : this replaces the condensate collection container and allows the condensed water to be expelled from the dehumidifier up to a height of 15 m , compared to the position of the Fral FD33ECO.

Equipped with a block alarm in case of pump malfunction, the lightweight portable dehumidifier stops instantly.

Alternatively, a condensate lifting pump kit is available that can be easily fitted to the outside of the dehumidifier and is equipped with a malfunction alarm and machine lock.

Technical specifications

The LRA starting current of the small and silent dehumidifier we are describing is 8.5 A. The maximum power of this machine is 480 W , with an absorbed power of 2.3 A.

This wheeled dehumidifier has an R290 refrigerant. With an air flow rate of 350 m3/h , this low consumption dehumidifier has an operating range for temperatures between 6 ÷ 33 °C, with an operating range for relative humidity between 35 ÷ 93 % (with T < 30°C), between 35 ÷ 90 % (with T between 30 ÷ 32 °C) and humidity between 35 ÷ 70 % (with T between 32 ÷ 35 °C).

The capacity of the Fral FD33ECO waste container is 7 kg . The connection on the machine for the waste is 16 mm .

The sound pressure of this portable professional dehumidifier, measured in free field at a distance of 3 meters is 43 dB .

This home dehumidifier has dimensions of 32 x 59 x 33 cm , and weighs 23.5 kg .
