Fral FDW016
Wall-Mounted Dehumidifier

Fral FDW016 - Wall-Mounted Dehumidifier with Continuous Drainage

Fral FDW016, code FDW016.001, is a Fral dehumidifier designed to achieve optimal home humidity. A wall-mounted dehumidifier, the Fral FDW016 is a Made in Italy quality machine: an electric dehumidifier, the Fral FDW016 combines an elegant design and robustness with functional mechanics and electronics, making it a quiet dehumidifier, efficient even at low temperatures and humidity, with low consumption.

This professional dehumidifier is suitable for dehumidifying your shop, reducing humidity in small cellars, basements, garages, and for removing humidity at home, in bedrooms or in the bathroom. The Fral FDW016 is a wall dehumidifier with a connection to a fixed condensate drain: this Fral dehumidifier, belonging to the FDW series, features a smooth aluminum tube evaporator coil as its main characteristic.

Aspirating and reducing the amount of humidity in the air reduces the formation of mold, fungi, and dust mites: with a professional dehumidifier like the Fral FDW016, you will limit domestic pollution, reducing condensation at home, dry air, and bringing your environment back to an ideal humidity level.

Features of the Fral FDW016 Wall-Mounted Dehumidifier

The structure of this air conditioner dehumidifier is made of hot-dip galvanized sheet metal, subsequently epoxy powder coated to ensure high resistance and long durability of the anti-humidity device over time.

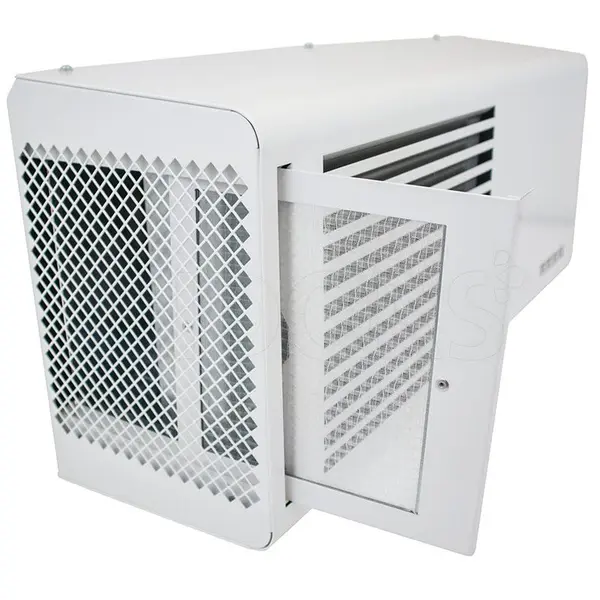

With a reciprocating compressor and a double filtration system, the Fral FDW016 uses a washable polyurethane filter. The dehumidifier filter is easily replaceable.

The defrost cycles of this Fral-branded, Made in Italy wall dehumidifier, as well as the timer and alarm board, are controlled by a microprocessor designed to extract the maximum performance from the Fral FDW016.

The humidistat for the dehumidifier is located on the side of the device, while the operation indicator lights are on the front of this electric dehumidifier. The control panel of the Fral FDW016 is therefore intuitive and easy to understand.

Refrigeration Circuit and Fan

This dehumidifier for homes and other indoor environments features a state-of-the-art refrigeration circuit. Specifically:

• Evaporator: as mentioned, the coil is made of smooth aluminum tubes. Smooth tubes ensure high efficiency of the dehumidifier, significantly reducing energy consumption even at low relative humidity.
• Condenser: the coil is made of copper tubes and aluminum fins; The wide fin spacing of the condenser ensures resistance to dust, long machine life, and easy maintenance.
• Ventilation: this dehumidifier uses axial ventilation. The fan is statically and dynamically balanced. Resistant and durable.

Leak tests of the refrigeration circuit, electrical discharge tests, and functional testing are performed.
Does not include a remote control

Technical Specifications

The wall-mounted dehumidifier described has a single-phase voltage of 230V, with an average nominal absorbed power of 240 W and a maximum absorbed current of 1.27 A. This quiet dehumidifier has a noise level of 39 dB, measured at 3 meters in free field. This professional dehumidifier has an air flow rate of 160 m³/h.

The operating range of this electric dehumidifier operates within a temperature range of 7 ÷ 35 °C, with a relative humidity operating range of 30 ÷ 99 %.

The defrost control system of the Fral FDW016 is electronic.

This home dehumidifier measures 69 x 31 x 21 cm and weighs 22 kg.

Watch the Video

Condensed Water at Different Temperatures

See attached PDF

Applications

• Homes
• Archives
• Small laundries
• Bathrooms
• Basements
• Libraries
• Offices
• Hotels
• Shops
