MASTER ComPact 1500EX
Compact Explosion Proof Blower
MPN: 1110827
230V - For Dangerous Areas
1195m³/h - 195Pa
Heylo original
Warranty 3
years
14 days to change your mind

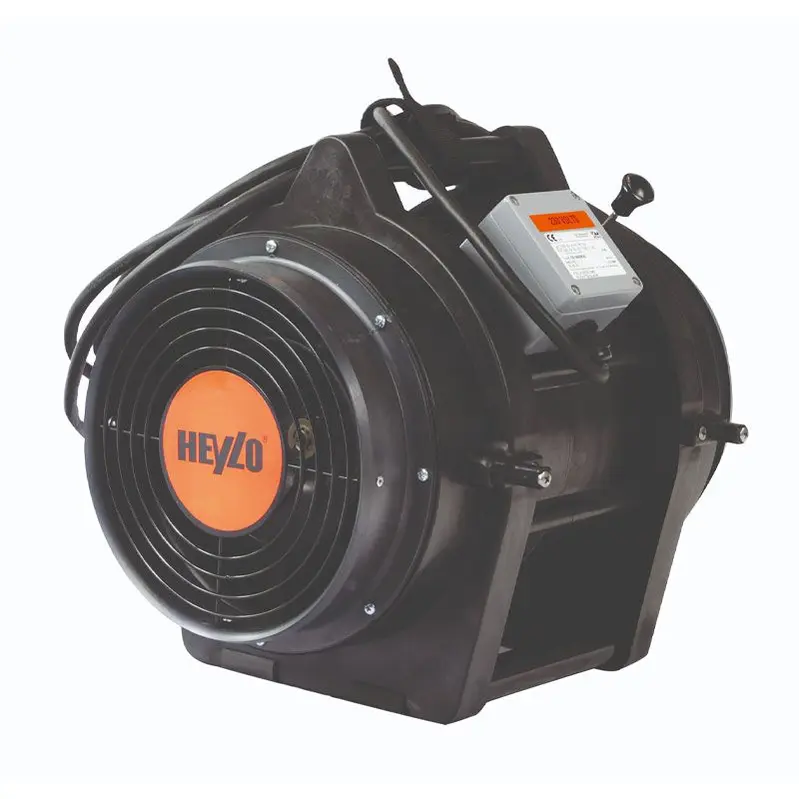

Heylo ComPact 1500 EX - Compact Blower for Potentially Explosive Atmospheres
Master ComPact 1500EX is a Explosive Blower manufactured by Heylo built specifically to be used in environments with potentially explosive atmospheres for the rapid and safe extraction of Dangerous Gases .
The Heylo ComPact 1500 EX Professional Air Blower is particularly suitable for use for maintenance and repairs on tank systems, petrol stations, manholes and cisterns but also for ventilation during renovation work in hazardous and contaminated areas, in chemical industry for fire brigade operations, for ventilation in logistics warehouses and for remediation work in contaminated areas.
This Heylo Hazardous Area Ventilator discharges voltage to the ground via a robust Plastic housing which dissipates the stresses into the ground thereby avoiding explosive charges and dangerous sparks which could risk starting fires. The housing has a high degree of protection of type IP 55 and also protects the Master Blower ComPact 1500 EX from dust and water as well as ensuring safe operation thanks to antistatic hoses.
To guarantee the correct functioning of the Hylo ComPact 1500EX Explosion Proof Blower it is essential to ensure that the installation conditions and the different risk areas are respected. It is therefore important to connect the ComPact 1500EX Master Fan only and exclusively to explosion-proof mains sockets and, if necessary, connect the antistatic pipes to earth (not included).
Technical specifications
The Heylo ComPact 1500EX Portable Blower has an air flow rate of 1195 m³/h at a pressure of 195 Pa. The type of connection of this Professional Explosion-Proof Blower is 230V at 50 Hz and the maximum absorbed power is 0.25 kW.
The ComPact 1500EX has an IP55 degree of protection also against dust and water and has a sound level of 74 dB(A) .
This Blower for Flammable Atmospheres is Atex II 2G EEx de IIB T6 certified .
Machine weight : 8.2 Kg
Dimensions : 33x31x36cm
Areas of use
- Tank systems
- Petrol station
- Wells
- Renovations
- Contaminated Areas
- Chemical Industry
- Firefighter operations
Features
- High Air Flow of 1195 m³/h
- IP55 protection
- Convenient handle for easy carrying
- Low power consumption
- Robust and safe plastic housing
- Atex II 2G EEx de IIB T6 certification
- Possibility to Connect Hose (not included)
The ComPact 1500 EX blower can be connected to its Antistatic Hose (code 1250099) which is not included and can be purchased separately. It is also possible to request the adapter cable (code 1450290) and the antistatic box for ducts including the duct (code 1250211) as an extra accessory.
3-year Master Warranty
.jpg)
To benefit from the 3-year guarantee of this Master product, register on the Master website and follow the instructions indicated.
Technical data
| Power Supply | 230V 50Hz |
| Absorption | 0.56 kW |
| Air Flow | 1195 m³/h |
| Prevalence | 195Pa |
| Fan type | Axial |
| Maximum current consumption | 0.25 kW |
| Loudness level | 74dB(A) |
| Protection class | IP55 |
| Dimension | 33x31x36cm |
| Weight | 8.2kg |
Technical data
| Power Supply | 230V 50Hz |
| Absorption | 0.56 kW |
| Air Flow | 1195 m³/h |
| Prevalence | 195Pa |
| Fan type | Axial |
| Maximum current consumption | 0.25 kW |
| Loudness level | 74dB(A) |
| Protection class | IP55 |
| Dimension | 33x31x36cm |
| Weight | 8.2kg |
