200 bar - 12-21 HP
300 W - 49000÷63000 Kcal/h
Originale Lavor

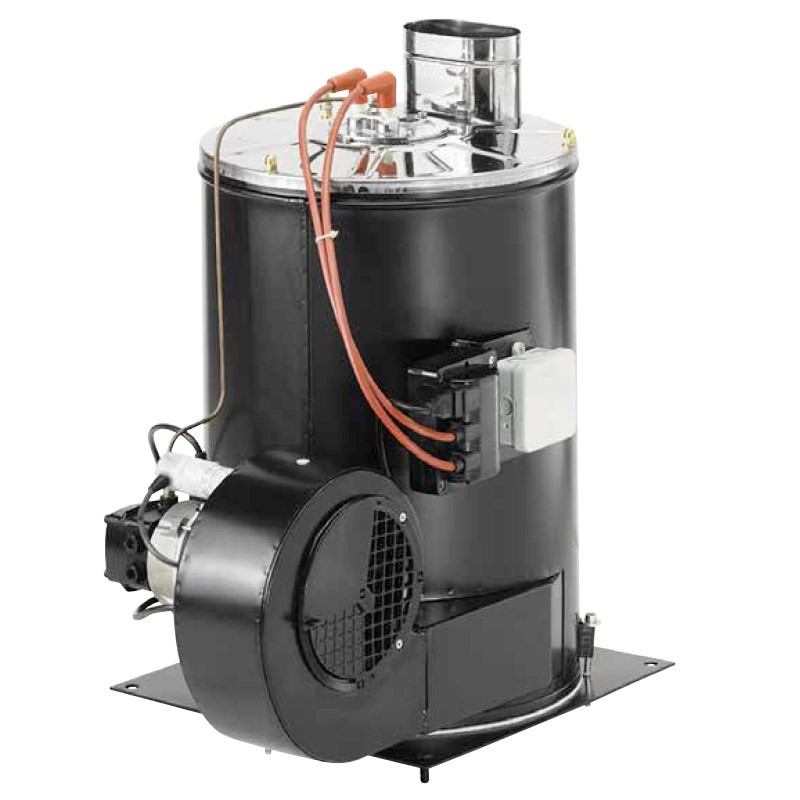

The Lavor boiler is an advanced device designed for use with high-pressure HOT WATER pressure washers, ideal for professional applications requiring high performance and reliability. This Lavor boiler is available in three distinct models: Top , Low, and High. Each is optimized for different operating needs while maintaining common features of robustness and efficiency.

REPLACEMENT BOILER IN CASE OF FAILURE OF THE ORIGINAL BOILER
CANNOT BE USED ALONE
Selectable from the drop-down menu:
The Top model, code 38002-00010 , is designed to offer a maximum pressure of 200 bar (2900 psi or 20 MPa) with a flow rate of 12 L/min (3.17 GPM). This boiler requires an electrical power of 300 W and operates on a 230V ~ 50Hz power supply. It generates a thermal energy of 49,000 Kcal/h , ensuring rapid and efficient water heating. With a length of 20 cm and dimensions of 40.5 cm in height and 51 cm in width , this model is compact and easily integrated into various working configurations. Its weight of 38 kg makes it easy to handle without compromising stability.
The Lavor Bassa boiler model, code 38002-00001 , shares the same maximum pressure of 200 bar (2900 psi or 20 MPa) but increases the flow rate to 15 L/min (3.96 GPM). The power requirement remains 300 W with the same electrical supply at 230V ~ 50Hz. The heat capacity is increased to 63,000 Kcal/h , making this model ideal for applications requiring a larger volume of hot water. The length of the boiler is 29.5 cm , with dimensions of 46.5 cm in height and 56.5 cm in width . The weight is slightly higher at 48.5 kg , offering greater stability during intensive use .
The Lavor Alta boiler model, code 38002-00002 , is the most powerful in the range, maintaining a maximum pressure of 200 bar but with an exceptional flow rate of 21 L/min. This model also requires 300 W of power and a 230V ~ 50Hz power supply. With a heat capacity of 63,000 Kcal/h , it is suitable for operations that require large quantities of hot water in a short time. It is 36.5 cm long, with dimensions of 60 cm in height and 69 cm in width , making it the largest of the three models. Weighing 54 kg , it is stable and robust, perfect for demanding work environments.
| Modello | TOP | BASSA | ALTA |
| Codice | 38002-00010 | 38002-00001 | 38002-00002 |
| Pressione Max | 200 bar | 200 bar | 200 bar |
| Portata | 12 L/m | 15 L/m | 21 L/m |
| Energia Termica | 49000 Kcal/h | 63000 Kcal/h | 63000 Kcal/h |
| Potenza Richiesta | 300 W | 300 W | 300 W |
| Dimensioni | 20 x 40.5 x 51 cm | 29.5 x 46.5 x 56.5 cm | 36.5 x 60 x 69 cm |
| Peso | 38 kg | 48,5 kg | 54 kg |
| Modello | TOP | BASSA | ALTA |
| Codice | 38002-00010 | 38002-00001 | 38002-00002 |
| Pressione Max | 200 bar | 200 bar | 200 bar |
| Portata | 12 L/m | 15 L/m | 21 L/m |
| Energia Termica | 49000 Kcal/h | 63000 Kcal/h | 63000 Kcal/h |
| Potenza Richiesta | 300 W | 300 W | 300 W |
| Dimensioni | 20 x 40.5 x 51 cm | 29.5 x 46.5 x 56.5 cm | 36.5 x 60 x 69 cm |
| Peso | 38 kg | 48,5 kg | 54 kg |
Works with a 230V ~ 50Hz
