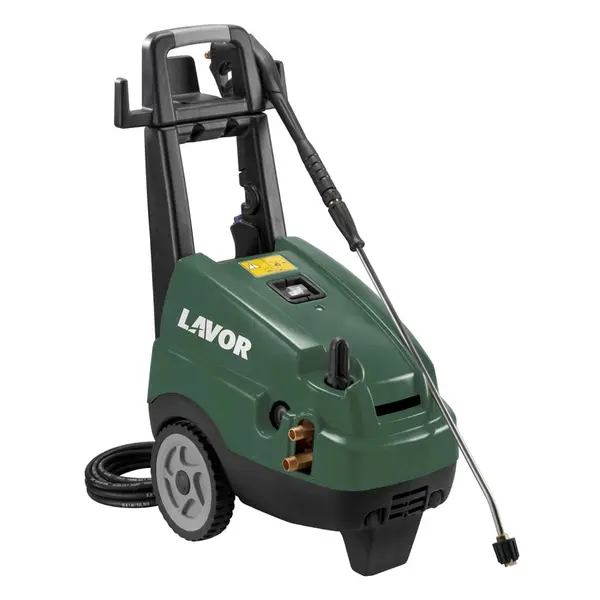

Lavor Tago 1713
Professional Three-Phase Pressure Washer 190 bar

Lavor Tago 1713 - Professional Three-Phase Pressure Washer 190 bar

The Lavor Tago 1713 is a professional cold water pressure washer designed for intensive use in environments where consistent performance is essential. This model stands out for its 1400 RPM 4-pole water-cooled induction motor and a robust linear pump with brass head, elements that guarantee long operating life and resistance even in the most demanding conditions.

Designed for both professional and amateur operators, the Lavor Tago 1713 pressure washer integrates the 24V delayed Total Stop system, which optimizes consumption and reduces component wear, while offering a high operating pressure of up to 170 bar . The machine is ideal for deep cleaning of various types of surfaces, machinery, vehicles and production environments where a high dirt removal capacity is required.

TECHNICAL SPECIFICATIONS

The Lavor Tago 1713 three-phase 400V is powered by a powerful 5200W electric motor , designed to ensure continuous work without drops in performance. The 4-pole induction motor ensures constant rotation at 1400 RPM , reducing vibration and increasing the overall life of the machine. The presence of integrated thermal protection and a water cooling system allows optimal operating temperatures to be maintained even during prolonged use, avoiding overheating and operational interruptions.

In terms of performance, this professional high-pressure washer offers an operating pressure of 170 bar , with a maximum peak of 190 bar , and a water flow rate of 780 L/h , making it suitable for demanding jobs. The CL35 pump is equipped with three ceramic-coated pistons , a technical solution that reduces wear and improves efficiency over time. The stainless steel suction and delivery valves further contribute to the corrosion resistance and longevity of the hydraulic system.

FUNCTIONAL SPECIFICATIONS

24V Delayed Total Stop System

The 24V low-voltage Total Stop system with delayed function is one of the most notable features of the Lavor Tago 1713 professional . This device automatically stops the motor when the gun is released, reducing energy consumption and wear on internal components. The delayed mode prevents excessively frequent stops and restarts, increasing operating efficiency and extending the life of the machine.

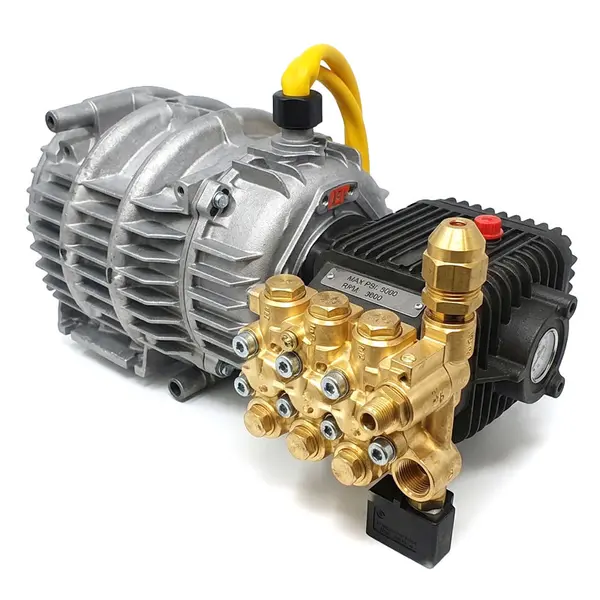

Linear pump with brass head

The linear pump with brass head ensures high resistance to mechanical and chemical stress. Brass is a particularly suitable material for intensive professional use due to its resistance to corrosion and high pressure, making this industrial pressure washer reliable over the long term.

High-strength ceramic pistons

The three ceramic-coated pistons ensure longer life than traditional materials. This technical solution reduces internal friction and improves smoothness, allowing the Lavor cold water pressure washer to maintain consistent performance even under heavy and continuous workloads.

Professional pressure regulator and pressure gauge

The integrated pressure regulator allows the operator to adjust the jet power to different cleaning needs, increasing the machine's versatility. The glycerin-filled pressure gauge ensures precise and stable pressure readings, even in the presence of vibrations, a key element for accurate control during professional operations.

Detergent suction system with integrated tank

The detergent suction system with an integrated 3.5 L tank allows for immediate use of chemical products without the need for external accessories. This feature makes the Lavor Tago 1713 a particularly efficient professional pressure washer for washing and degreasing operations, optimizing work times.

Functional structure with integrated accessory holder and supports

The machine is designed for maximum operational convenience thanks to the integrated accessory holder and power cord holder, which facilitate tool organization and transport. This configuration makes this Made in Italy pressure washer not only powerful but also ergonomic and suitable for professional settings where order and speed of use are essential.

Characteristics

• Professional cold water pressure washer
• 400V three-phase power supply
• 4-pole induction motor
• Power 5200 W
• Nominal pressure 170 bar
• Max pressure 190 bar
• Max flow rate 780 L/h
• CL30 pump with brass head and 3 ceramic steel pistons
• 1400 RPM revolutions
• Total Stop 24V
• Accessory holder
• Electric cable holder
• Glycerin-filled pressure gauge
• Made in Italy

Standard Equipment

• M22 3/8" pistol with swivel attachment - code 00080-01695
• High/low pressure lance M22 - code 00080-01724
• Nozzle 055 - code 00080-03190
• R1 High Pressure Hose 10 m - 00080-02347
