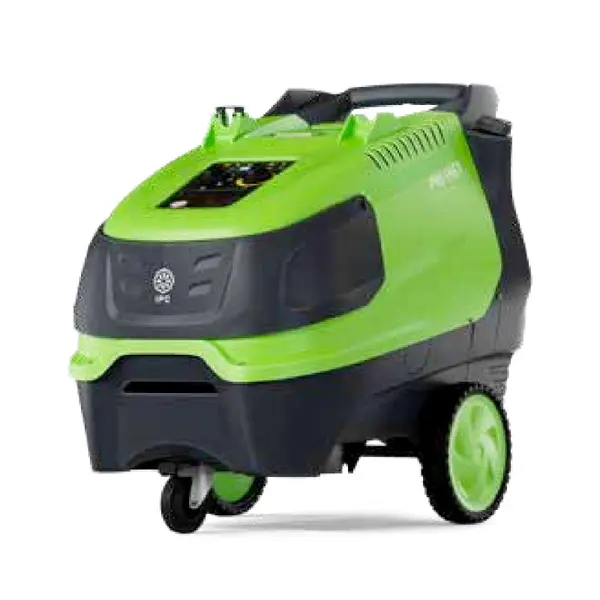

IPC PW H61 Premium 3 Wheels
Hot Water Pressure Washer

IPC PW H61 Premium - Professional High Pressure Washer 200 bar 3 wheels

The IPC PW H61 Premium pressure washer is a professional machine designed for the intensive cleaning of very dirty surfaces . The high pressure jet delivered by this pressure washer combined with the high temperatures of the water allow you to effectively remove grease, oil, stubborn dirt and contamination.

This high pressure washer finds its use in various professional sectors, such as automotive , agriculture , construction , municipalities , industry , DIY and gardening .

The professional IPC brand, renowned for producing machines with optimal performance, integrates advanced features thanks to exclusive technologies that improve efficiency, durability and guarantee safe use.

Models available

The IPC PW H61 Premium 3-wheel pressure washer is available in the following models, which can be selected from the drop-down menu:

• PW H61P D1813P4T - cod. IDAC41369 - 180 bar with flow rate 450÷800 L/h
• PW H61P D1915P4T - cod. IDAC41370 - 190 bar with flow rate 450÷900 L/h
• PW H61P D1517P4T - code IDAC41385 - 150 bar with flow rate 500÷1000 L/h
• PW H61P D1719P4T - cod. IDAC41372 - 170 bar with flow rate 600÷1150 L/h
• PW H61P D2017P4T - cod. IDAC41371 - 200 bar with flow rate 500÷1000 L/h

Functional specifications

400V Hot Water Pressure Washer

The IPC PW H61 Premium professional range is made up of three-phase 400V hot water pressure washers up to 140°C , representing the ideal solution for intensive cleaning applications. These machines are equipped with powerful motors from 5 to 6.4 kW and a rotation speed of 1400 RPM . With a thermal power of 70 kW , PW H61 Premium ensures rapid production of hot water and a fuel tank with a capacity of 25 L , has a consumption of 5.8 kg/h, maintaining optimal energy efficiency during operation.

Professional IPC Up to 200 bar

The IPC PW H61 Premium pressure washers offer a selection of models with operating pressure between 180 and 200 bar and water flow rate ranging from 800 to 1000 L/h . The outlet water temperature reaches 140°C, ensuring effective cleaning even for the most stubborn dirt. Equipped with a large 22 L detergent tank, this is dispensed at high pressure for even more effective removal of dirt.

Sturdy 3-wheel structure

With dimensions 110 x 70 x 90 cm and a weight varying from 120 to 140 kg , this pressure washer is built with resistant plastic material to ensure robustness and stability during use. Despite its solid structure, it is surprisingly easy to maneuver and transport thanks to a clever 3-wheel design, which guarantees excellent mobility.

Complete Control Panel

The practical control panel allows the user to keep the pressure washer's functions under control thanks to the indicator lights and the display .

Used technologies

This pressure washer is equipped with a series of innovative technologies that improve its functionality and safety:

• Delayed Total Stop (DTS) : Allows delayed shutdown of the machine, protecting the internal components and prolonging the useful life of the appliance.
• Intelligent Automatic Shut-off (IASF) : System that automatically turns off the pressure washer in the event of prolonged disuse, saving energy.
• Microleak Control (MLC) : Detects and manages any microleaks of water, avoiding waste and damage.
• Water Deficiency Control (DRP) : Prevents machine operation in the absence of water, protecting the pump.
• Clogged Lance Nozzle Control (NCC) : Signals clogging of the nozzle, facilitating maintenance and ensuring constant performance.
• Boiler Ignition Delay (IBD) : Reduces boiler wear through a delayed ignition system.
• Electronic Counter (WHC) : Provides precise data on machine use for optimal management of operations.
• Temperature Stabilizer (ATC) : Keeps the water temperature constant, ensuring effective cleaning.
• Anti-Limescale Protection Unit (LCPU) : Prevents the formation of limescale, protecting the heating elements.
• Descaler Level Control : Monitors the scale level in the unit, ensuring optimal machine operation.
• Fuel Level Control (FLC) : Indicates the fuel level in the tank, allowing efficient use of the machine.
• Maintenance Period Indication (MLC) : Notifies when it is necessary to carry out maintenance interventions, always guaranteeing maximum performance.
• Temperature Reach Indicator Light (TL) : Signals when the water reaches the desired temperature, optimizing effectiveness.

Characteristics

• I three-phase hot water drop washer
• High pressure washer with max pressure 200 bar
• Water flow rate between 800 and 1150 L/h
• Power absorbed between 5 and 6.4 kW
• Total Stop
• Intelligent Automatic Shut-off
• IPC pump connecting rod crank
• Brass head
• Ceramic pistons
• Fuel consumption 5.8 kg/h
• 25 L fuel tank
• 22 L detergent tank
• Durable plastic construction
• 3 wheels

Standard equipment

Indicative image

• G 6000 handle + Extension 330 + M22 SW.M 2V - cod. IPPR40025
• Extension P 70 stainless steel - cod. LCPR40087
• Lance nozzle 1/4 1504 - cod. UGLN49986 (for model 1813)
• Lance nozzle 1/4 1505 - cod. UGLN05200 (for model 1517)
• Lance nozzle 1/4 15045 - cod. UGLN49987 (for 1915 and 2017 models)
• Lance nozzle 1/4 2506 - cod. UGLN49994 (for model 1719)
• Anti-limescale treatment M421 1 kg
• High pressure hose 1/4 10 m - cod. TBAP40308 (for 1813 and 1915 models)
• High pressure hose 5/16 10 m - cod. TBAP40309 (for 1517, 1719 and 2017 models)
