Annovi Reverberi 630 K Dual Pro
150 bar Wheeled Pressure Washer

Annovi Reverberi AR 630 K Dual Pro - Compact Professional Wheeled Pressure Washer

Annovi Reverberi AR 630 Dual Pro cod. 15512 is a compact 150 bar high pressure washer with a modern design and enhanced performance, designed to meet the needs of semi-professional users.

Equipped with a single-phase induction motor with thermal protection and a 3-piston pump with connecting rod and crank system and bronze head , the maximum pressure is 150 bar, with a flow rate of up to 600 L/h . With a power of 2.7 HP and 2 kW , this pressure washer operates at 1450 rpm , with a weight of only 27 kg .

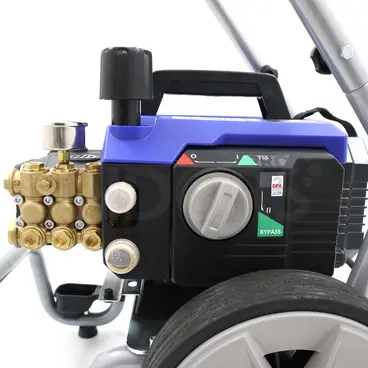

One of the new features that distinguish Annovi Reverberi AR 630 Dual Pro cod. 15512 from previous models is the Duo Pro Appliance system which allows you to select the operating mode of the pressure washer using a three-position power selector : OFF / I / B.

1. Pressure regulator
2. Portable
3. 3-Position Rotary Selector
4. Oil Level
5. Gauge
6. Accessory Holder

Technical specifications

• Cold water
• Self-priming function
• Induction motor
• Connecting rod pump
• IPX5-S1 water resistance
• Brass head
• Total Stop Sysyem

Functional specifications

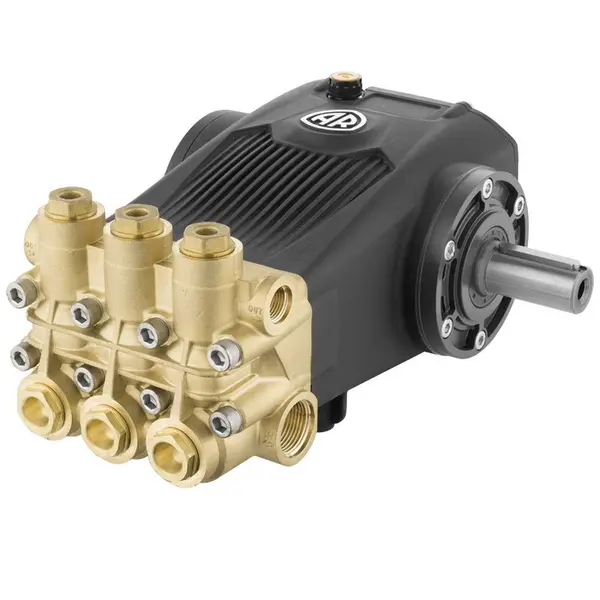

538 RF Series Pump

Annovi Reverberi AR 630 Dual Pro cod. 15512 features a Series 538 RF pump: this is a 3-piston reciprocating volumetric pump, designed for use in washing units and industrial systems. The Series 538 pump provides a maximum pressure of 400 bar, a flow rate of up to 39 l/min, power up to 29 kW and a bronze head.

Dual Appliance System

The innovative technological system present on the AR 630 allows you to select the operating mode of the pressure washer by acting on the three-position ignition selector.

Total Stop System

Particularly suitable for normal use of the pressure washer, the Total System allows the pressure washer to be stopped immediately when the gun is released. This system ensures lower energy consumption and reduces wear on the pump and motor. The Total System helps ensure the safety of the Annovi Reverberi AR 630 Dual Pro.

By-Pass System

The by-pass system is suitable for intensive use conditions where the pressure washer is subject to frequent stops and starts or if it is used in harsh environmental conditions (e.g. high temperatures, high humidity, environment with low air circulation).

Detergent suction kit

This Annovi pressure washer has a detergent suction kit.

Self-priming function

A self-priming pump is designed to draw water from an external source (such as a tank, drum, or container) without requiring water to be forced into the pump by initial pressure. This makes the pressure washer more versatile, allowing it to operate even without a direct connection to a pressurized water supply, such as when a tap isn't available, or to use alternative water sources such as tanks and wells.

Watch the video

Characteristics

• 3-piston ceramic pump
• Crankshaft Connecting Rod System
• Brass head
• Ceramic pistons
• Automatic bypass valve
• Total Stop
• Pressure Regulation
• Gauge
• Self-priming function
• Swivel Pistol
• 10m steel braided reinforced hose
• Trolley with Handle for Easy Transport

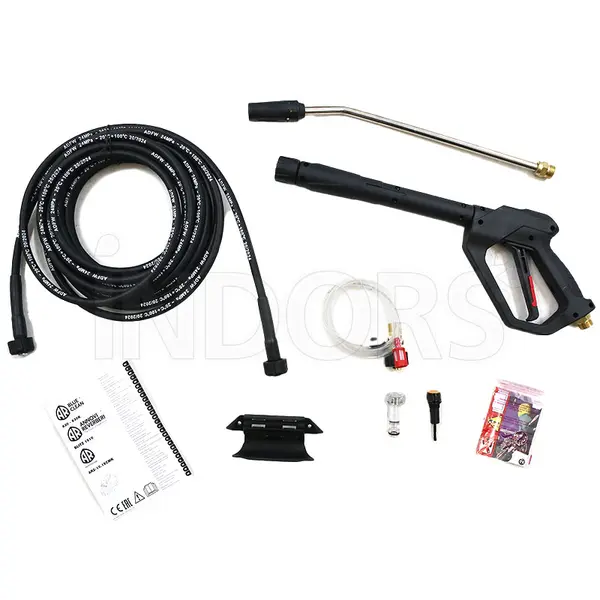

Standard Equipment

• M22 brass pistol
• Adjustable jet lance
• 10 m reinforced high pressure hose
• Trolley kit
• User manual
