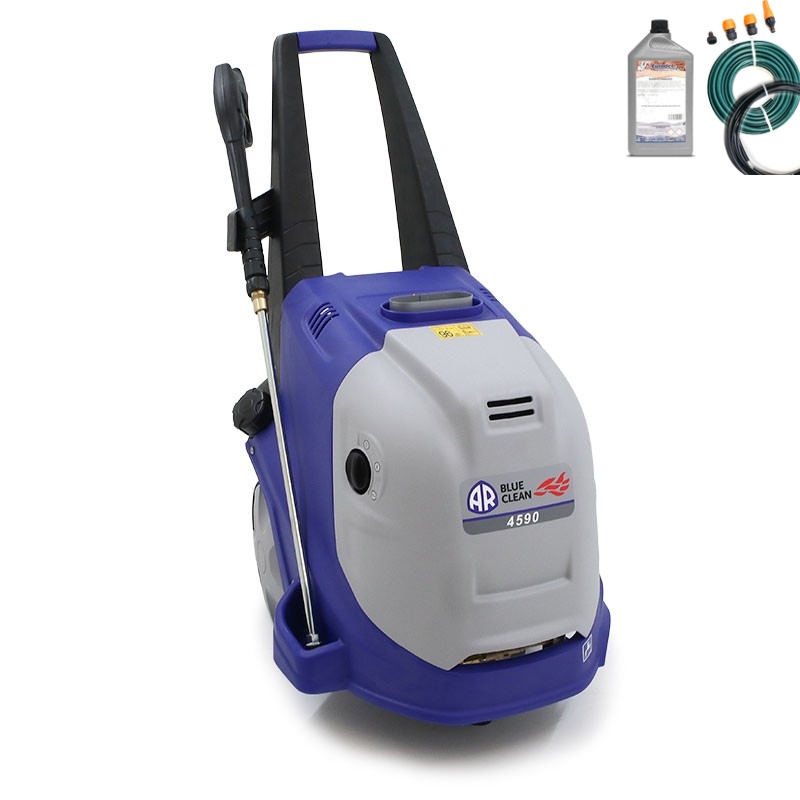

Annovi Reverberi AR 4590 - Professional Hot Water Pressure Washer 160 bar
Annovi Reverberi AR 4590 cod. 24426-V is a professional hot water pressure washer equipped with advanced technical features and high-quality materials, with a pump designed to offer exceptional and long-lasting performance in a wide range of applications.
AR 4590 features a 3-piston axial pump , controlled by a connecting rod-crank system and hardened stainless steel pistons ensuring superior resistance and long life, even under intensive use conditions.
The presence of an automatic by-pass valve with zero pressure relief in the pump head ensures the safety and protection of the entire system, reducing the risk of damage due to overpressurization.
The electric induction motor , equipped with thermal protection , ensures constant and reliable power, while the safety pressure switch automatically intervenes to turn off the boiler in the event of a lack of water, protecting the unit from excessive damage.
Technical specifications
- Hot water
- Induction motor
- Connecting rod pump
- IPX5-S1 water resistance
- Brass head
- Total Stop System
Functional specifications
Double coil vertical boiler
The Annovi Reverberi AR 4590 vertical boiler is designed with a double coil and a refractory base to ensure uniform heating and greater energy efficiency.
High pressure operation 160 bar
The Annovi Reverberi AR 4590 has a working pressure of 160 bar and is a hot water pressure washer ideal for industrial cleaning , vehicle cleaning, building cleaning and for the production sector.
4 L diesel tank
The 4L diesel tank ensures extended operating time. The AR 4590 features a water filter and diesel suction system to keep the system clean and protected from external contaminants.
8m reinforced hose
The 8m steel-braided reinforced hose offers superior pressure and corrosion resistance, ensuring long life and increased reliability in any working environment.
Total Stop System
Equipped with the Total Stop System safety system. The Annovi Reverberi Total Stop System (TSS) is a safety system integrated into pressure washers that automatically stops the machine when the gun trigger is not pressed.
Single-phase induction electric motor
The single-phase induction electric motor with thermal protection releases a power of up to 2.5 kW , with a maximum flow rate of 500 l/h and a maximum pressure of 150 bar .

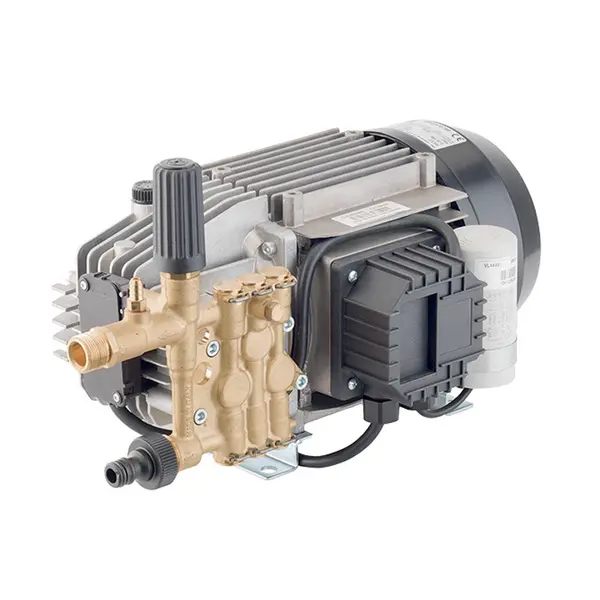

HPV-O pump
3-piston pump in tempered stainless steel with ceramic coating, connecting rod/crank system and brass head . Safety valve with pump head pressure reset , single-phase induction electric motor with thermal protection and remote total shutdown system of the pressure washer. Water intake from tank with self-priming function.
Self-priming function
A self-priming pump is designed to draw water from an external source (such as a tank, drum, or container) without requiring water to be forced into the pump by initial pressure. This makes the pressure washer more versatile, allowing it to operate even without a direct connection to a pressurized water supply, such as when a tap isn't available, or to use alternative water sources such as tanks and wells.
Characteristics
- 3-piston axial pump
- Crank connecting rod system
- Automatic bypass valve
- Resetting the pump head pressure
- Electric induction motor
- Safety pressure switch
- Total Stop System
- Self-priming function
- Vertical boiler with double coil
- 4 L Diesel Tank
- 8m reinforced hose
- Water filter and diesel suction filter
- Handle and rubbers for easy transport
- Accessory holder
- Hot Water Operation
- Pressure 160 bar

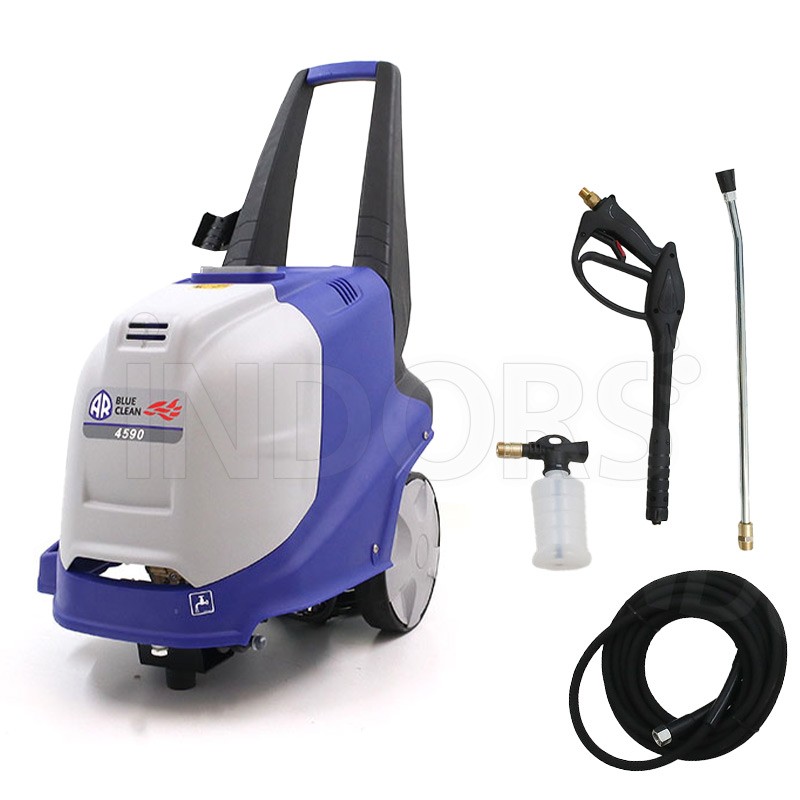

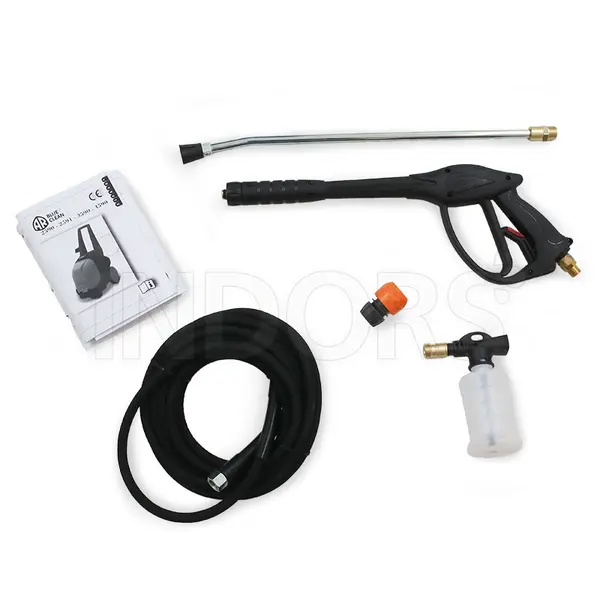

Standard Equipment
- Professional high pressure gun
- Professional high pressure lance
- Fan nozzle
- 8-meter Reinforced High Pressure Hose
- Foaming kit
- Water inlet filter
- Instruction Booklet
