Annovi Reverberi ARXP BOX5
Compact Pressure Washer 850 L/h

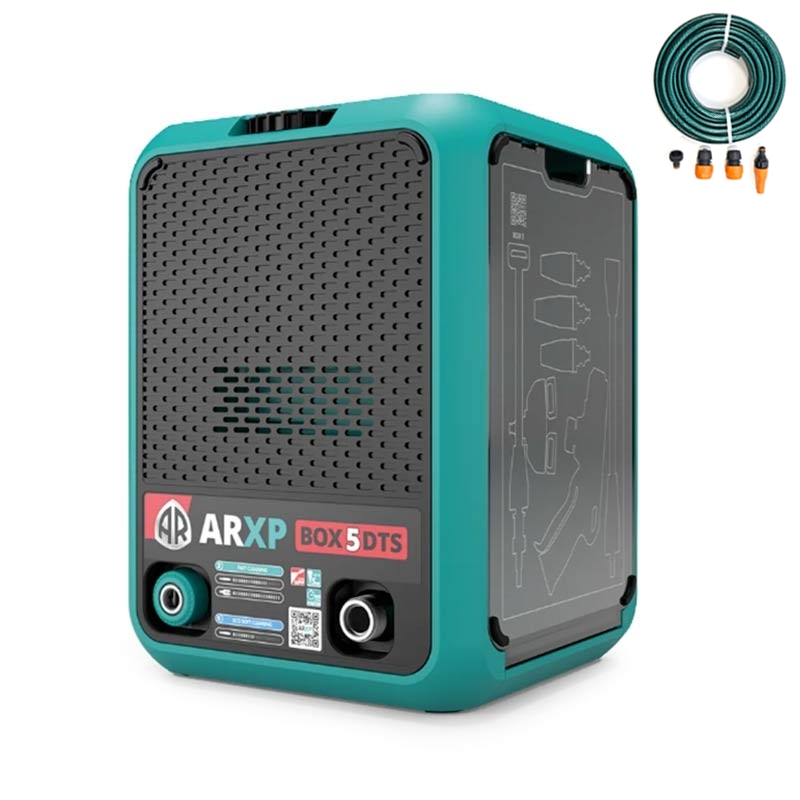

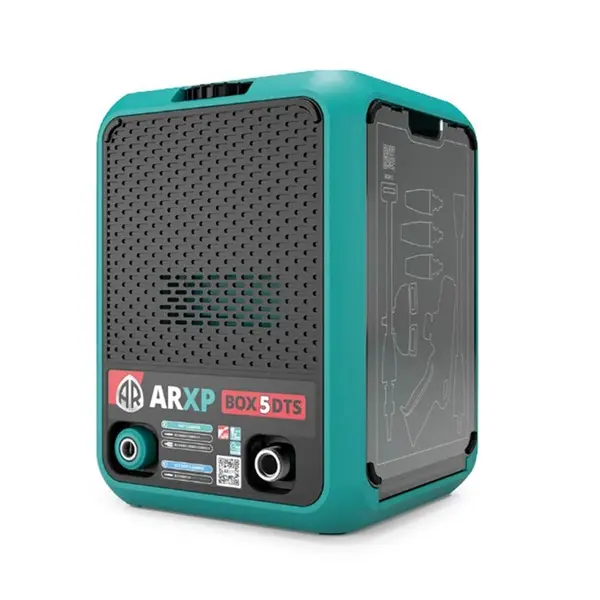

Annovi Reverberi ARXP BOX5 - Compact Pressure Washer 850 L/h

Annovi Reverberi ARXP BOX5 is a high pressure washer with the powerful Dualtech Technology System , this extraordinary machine is equipped with two pump-motor groups inside, which, once activated simultaneously , generate an extraordinary water flow rate of 850 L/h .

Thanks to the Dualtech Technology System , the Annovi Reverberi ARXP BOX5 becomes a powerful and efficient ally for cleaning needs, the combination of two pump-motor groups guarantees extraordinary thrust and an unparalleled water flow , allowing you to tackle even the most stubborn stains and the most encrusted dirt with ease and speed .

Technical specifications

• Universal motor
• Plate pump
• Aluminum head
• Cold water

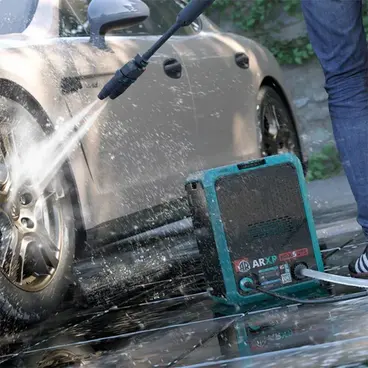

• IPX5-S1 water resistance
• Self-priming function
• Total Stop System

Functional specifications

The Annovi Reverberi ARXP BOX5 pressure washer is the perfect companion for your cleaning needs, it offers a maximum power of 2.7 kW and a maximum pressure of 160 bar , it is also particularly compact and is ready to provide exceptional performance to tackle even the most stubborn dirt .

Thanks to its plate pump and aluminium head , the ARXP BOX5 is designed to last over time , ensuring powerful and reliable cleaning . It also allows a maximum flow rate of 850 L/h and offers a constant water flow , ensuring effective and rapid washing .

The ARXP BOX5 pressure washer is suitable for use with cold water and can withstand water inlet temperatures of up to 50°C , making it versatile and perfect for multiple cleaning applications .

Weighing just 10.7 kg and with compact dimensions of 25.8 x 27.2 x 35.7 cm , this machine is easy to transport and handle. Furthermore, the universal motor guarantees constant and reliable performance , while its water resistance ensures maximum durability even in humid environments.

Double universal pump

The Annovi Reverberi ARXP BOX5 is an extraordinary pressure washer equipped with a universal double pump , which offers exceptional cleaning performance for a wide range of applications.

The heart of the system consists of two axial 3-piston pumps, controlled by the oscillating plate , with an aluminium head, the pistons, made of tempered stainless steel , guarantee a long life and superior resistance to stress .

This configuration offers extraordinary power and constant pressure during cleaning work, to ensure user safety , the Annovi Reverberi ARXP BOX5 is equipped with an automatic safety valve , which reduces the residual pressure inside the system, this facilitates the operation of the gun lever and reduces hand fatigue, allowing you to work more comfortably and safely .

The single-phase electric motor is protected by a thermal function , which prevents it from overheating, thus ensuring a long life for the motor and reliable operation over time .

Additionally, the pressure washer's remote total shutdown system gives you complete control over the machine, allowing you to turn it off and on again with ease and convenience .

Another noteworthy feature is the possibility of drawing water directly from a tank , thanks to the self-priming function , this option offers greater flexibility in choosing the water source, making the Annovi Reverberi ARXP BOX5 also suitable for situations where a direct connection to the water supply is not available.

Dualtech technology system

The Annovi Reverberi ARXP BOX5 Dualtech Technology System (DTS) is designed to meet a wide range of cleaning needs. Thanks to this innovative system , it is possible to choose between two different operating modes, selectable via a convenient rotary selector:

• ECO Mode : ECO mode activates a single Power Unit , ideal for light and delicate cleaning jobs. This option is particularly suitable for wooden surfaces, cars , bicycles , garden furniture and outdoor fabrics . In this mode, water and energy consumption are reduced to a minimum , allowing you to carry out your cleaning tasks in an eco-friendly way.
• FAST Mode : The FAST mode activates both Power Units , thanks to the double water flow , washing becomes much faster, more intense and effective , this mode is ideal for removing stubborn dirt from resistant surfaces such as stone and concrete slabs, stairs , swimming pools , brick walls and metal railings. With the Annovi Reverberi ARXP BOX5 in FAST mode, you can count on a pressure of 160 bar, a power of 2.7 kW and an impressive flow rate of 850 L/h .

The Dualtech Technology System (DTS) is an exclusive patent of Annovi Reverberi, which includes two pump-motor groups (2 Power Units) inside the device.

This innovation takes the performance of the pressure washer to a higher level, increasing it by up to 50% compared to traditional models. Thanks to its exceptional water flow rate , which reaches double the average of a common home & garden pressure washer, it is possible to obtain surprising results in less time.

With a jet range of up to 5 metres , the Annovi Reverberi ARXP BOX5 allows you to tackle even the largest surfaces in height with ease and precision .

Twin nozzle

The Twin Nozzle system is one of the distinctive features of the Annovi Reverberi ARXP BOX5 , making it an exceptional option for high pressure cleaning tasks.

This pressure washer is equipped with an exclusive accessory that offers quick and effective cleaning of large surfaces, such as concrete and brick walls, floors and swimming pools, with significant time savings.

Thanks to the double nozzle of the Twin Nozzle , the washed surface is doubled , allowing you to cover a larger area in a single pass , which translates into a significant reduction in working times , with a saving of up to 70% of the overall time.

Depending on your specific cleaning needs, the ARXP BOX5 160DTS offers the possibility of using the Twin Nozzle with different head combinations:

• Two rotating jet heads to tackle stubborn dirt and stains;
• Two adjustable jet heads for more delicate and precise cleaning on more sensitive surfaces;
• One rotating jet head with the other adjustable jet for optimized cleaning in different situations.

With the Twin Nozzle, the cleaning experience will reach unprecedented levels of efficiency and satisfaction, the Annovi Reverberi ARXP BOX5 confirms itself as the ideal solution to quickly , effectively and ecologically address your high pressure cleaning needs.

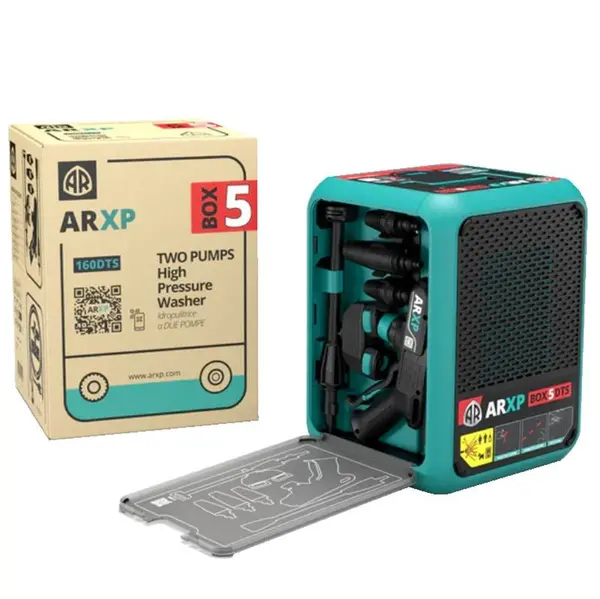

Space saving

The Annovi Reverberi ARXP BOX5 pressure washer is a concentration of innovation from every point of view, it features a smart and compact design and stands out for its organized and space-saving structure . Inside, there are two compartments dedicated to accessories , ensuring each component has a well-defined and easily accessible place during use .

Thanks to this compartment system , everything remains tidy and well-organized , offering clean and efficient storage for both the pressure washer and its accessories.

This internal organization allows the entire pressure washer to maintain an ideal compactness , making it easily transportable and easy to handle .

Respect for the environment

The Annovi Reverberi ARXP BOX5 pressure washer stands out for its concrete commitment to protecting the environment :
During the design phase, particular attention was paid to optimizing the use of materials , eliminating unnecessary ones and reducing the overall size of the products to a minimum.

An ecological approach that has led to a more efficient and sustainable production chain, the integration of Dual technologies has been designed to offer a flexible cleaning system that can adapt to different needs, avoiding unnecessary waste of resources.

This feature allows you to use the right amount of cleaning power needed, without waste and helping to save energy and water .

Not only is the pressure washer itself eco-friendly , but the product packaging has also been carefully selected to respect the environment, being made entirely of recycled paper, FSC (Forest Stewardship Council) certified, without the use of plastic , in order to minimize the environmental impact and promote a more sustainable choice for consumers.

Self-priming function

A self-priming pump is designed to draw water from an external source (such as a tank, drum, or container) without requiring water to be forced into the pump by initial pressure. This makes the pressure washer more versatile, allowing it to operate even without a direct connection to a pressurized water supply, such as when a tap isn't available, or to use alternative water sources such as tanks and wells.

Double universal pump

Watch the videos

Fields of application

• Car cleaning
• Bicycle cleaning
• Cleaning erased
• Garden cleaning
• Motorcycle cleaning
• Cleaning the benches
• Boat cleaning
• Camper cleaning
• House cleaning
• Cleaning walls
• Floor cleaning
• Pool cleaning
• Stair cleaning
• Cleaning of sheds
• Cleaning tools

Characteristics

• Maximum pressure 160 bar
• Maximum flow rate 850 L/h
• Power 2.7 kW
• Power supply 230V
• Maximum incoming water temperature 50°C
• Net weight 10.7 kg
• Product dimensions 25.8 x 27.2 x 35.7 cm
• Electric motor
• Double universal pump
• 3-piston axial pump
• Aluminum head
• Cold water
• Dualtech Technology System

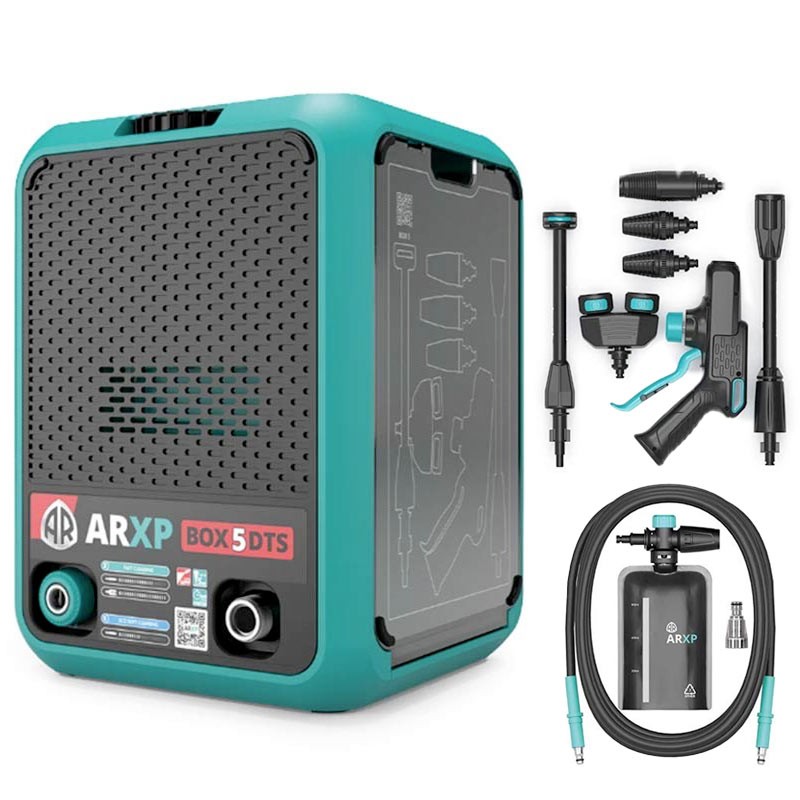

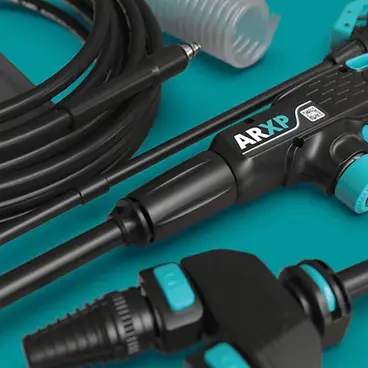

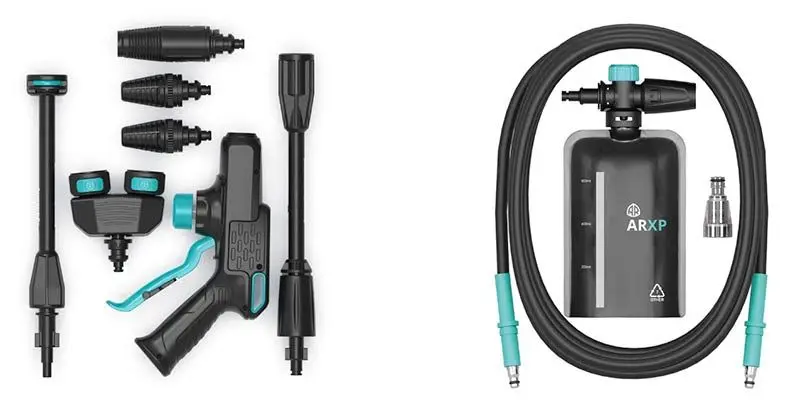

Standard equipment

• Lance x2
• Double Head Holder Gun
• Rotating jet head x2
• Adjustable jet head
• Expandable foam kit
• Water inlet filter
• Super Flex Hose - 8 m
