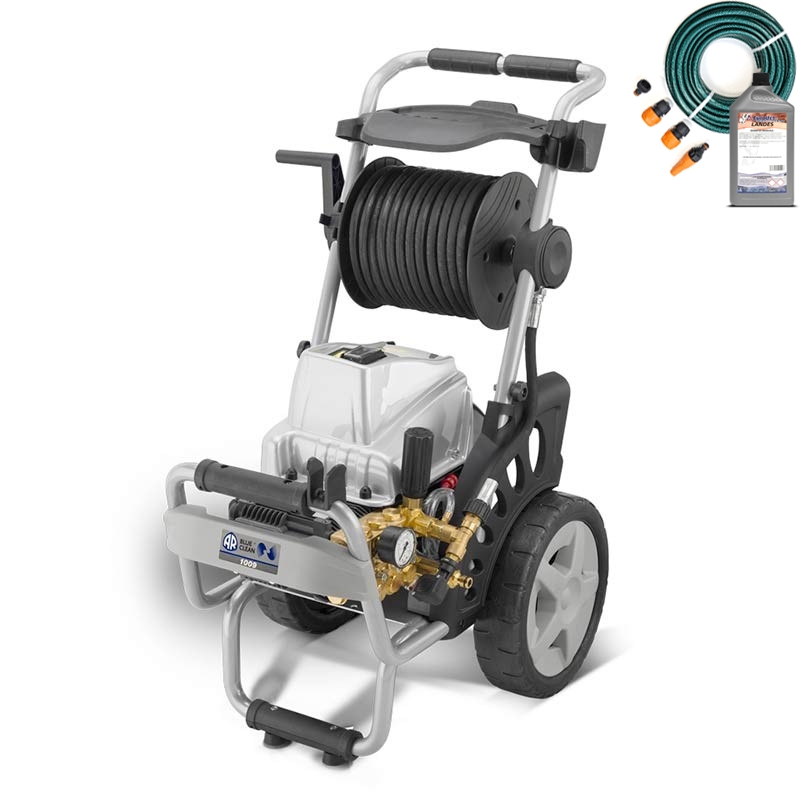

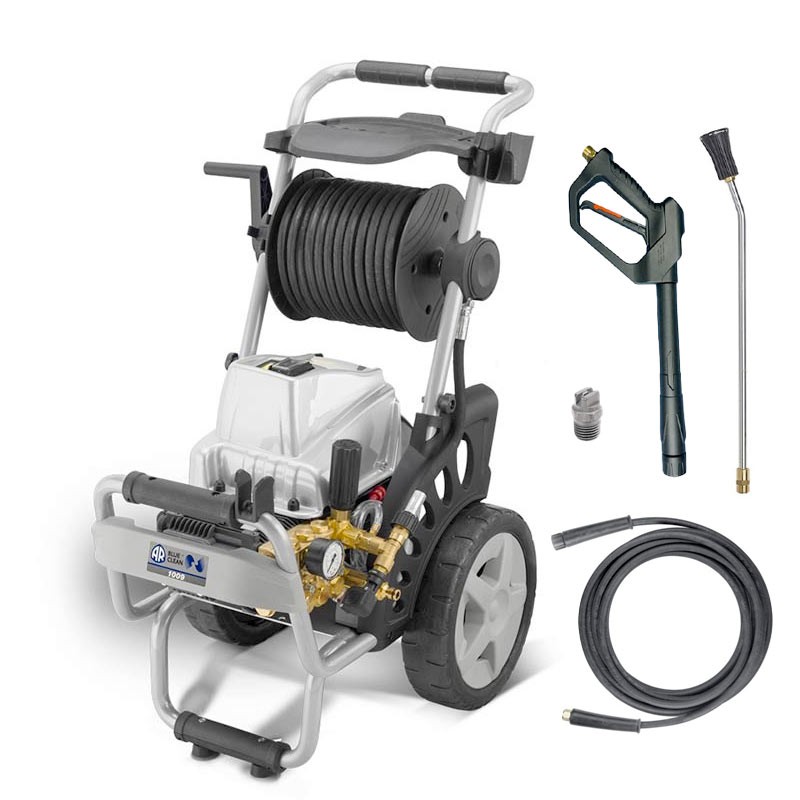

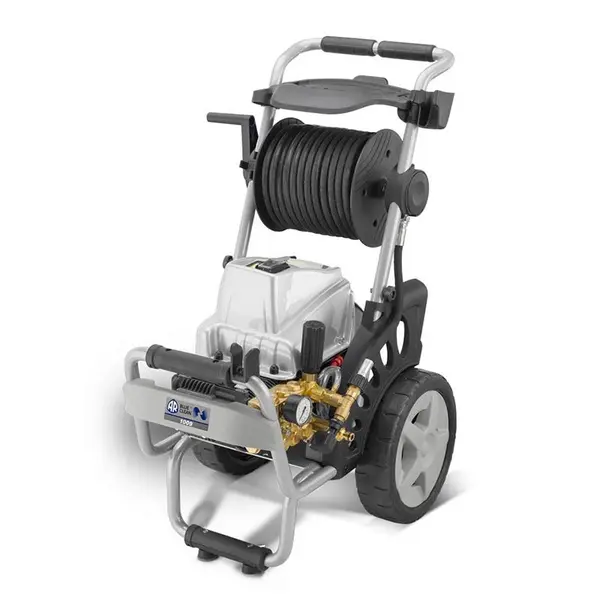

Annovi Reverberi 1009 RLW - Pressure Washer with Hose Reel and HRK Pump
The Annovi Reverberi 1009 RLW is an efficient professional pressure washer equipped with a 3-piston ceramic pump and a connecting rod-crank system , it is designed to offer high level performance and exceptional results .
This pressure washer is powered by a three-phase induction electric motor with thermal protection , and is also particularly easy to handle and resistant , thanks to the high-quality construction materials .
TECHNICAL SPECIFICATIONS
With a maximum pressure of 200 bar and a maximum flow rate of 1260 L/h , this Annovi Reverberi 1009RLW pressure washer is able to tackle even the most demanding jobs with ease .
The 7.4 kW power consumption ensures high performance and exceptional cleaning results , furthermore the presence of a flanged regulation valve helps to further improve the performance of the pressure washer, guaranteeing a constant and uniform flow of water during use.
HRK pump

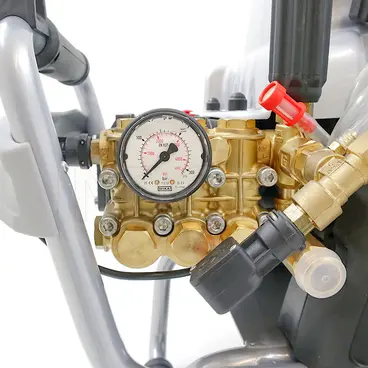

The HRK pump is a 3-piston ceramic pump with a connecting rod and crank system and a brass pump head, offering high durability and reliable performance .
The pump is equipped with an automatic safety valve that resets the pressure in the pump head if necessary. This is an important safety device to protect the pump from excessive overloads.
The pump motor is a three-phase induction electric motor with thermal protection , which is a mechanism that senses the temperature of the motor and automatically shuts it off if it gets too hot, preventing damage to the motor itself.
The pump is capable of drawing water from a tank and has a self-priming function , meaning it can draw water from the tank without needing a direct power supply, which can be useful in situations where water is not easily accessible or when working in remote areas.
- Cold water
- Self-priming function
- Induction motor
- Connecting rod pump
- Brass head
- Total Stop System
Functional specifications
Automatic bypass valve
Equipped with an automatic by-pass valve , which allows the pressure in the pump head to be released quickly and safely , this prevents any damage caused by excessive pressure and ensures a longer life of the appliance.
Adjustable pressure
The pressure can be adjusted to the specific needs of the job at hand, allowing for precise control during use. A pressure gauge is included to monitor pressure in real time, allowing you to maintain the right cleaning power in any situation.

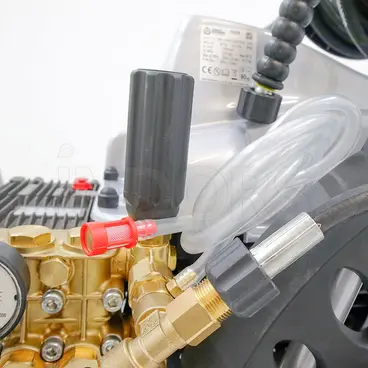

Detergent suction
The pressure washer features a built-in detergent suction system, allowing you to easily mix detergent with water for more effective cleaning .
You can adjust the amount of detergent sucked up as needed.
Electric motor
The three-phase induction electric motor is protected by a thermal device that prevents overheating and extends the life of the motor itself, ensuring safe and reliable operation of the pressure washer even during prolonged use.
Remote total stop TST
The remote pressure washer total shutdown system ( TST ) allows you to turn off the appliance from a certain distance, minimizing electricity waste .
This delayed system helps avoid constant starting and stopping and prolongs the life of the pressure washer .
The pressure washer is equipped with an inspectable water filter , which helps keep the system clean and avoid possible blockages that could compromise performance.
The detergent tank has a capacity of 3 L , allowing you to use a sufficient amount of detergent for effective and long-lasting cleaning.
Self-priming function
A self-priming pump is designed to draw water from an external source (such as a tank, drum, or container) without requiring water to be forced into the pump by initial pressure. This makes the pressure washer more versatile, allowing it to operate even without a direct connection to a pressurized water supply, such as when a tap isn't available, or to use alternative water sources such as tanks and wells.
HRK pump
- 3-piston ceramic pump with connecting rod and crank system, brass pump head
- Automatic safety valve with pressure relief in the pump head
- Single-phase induction electric motor with thermal protection
- Remote pressure washer total shutdown system
- Water suction from tank with self-priming function
CHARACTERISTICS
- 400V electric motor
- HRK pump
- Maximum pressure 200 bar
- Maximum flow rate 1260 L/h
- Engine 1450 RPM
- 400V power supply
- Maximum incoming water temperature 60°C
- Weight 67.5 kg
- Dimensions 67 x 54 x 90 cm

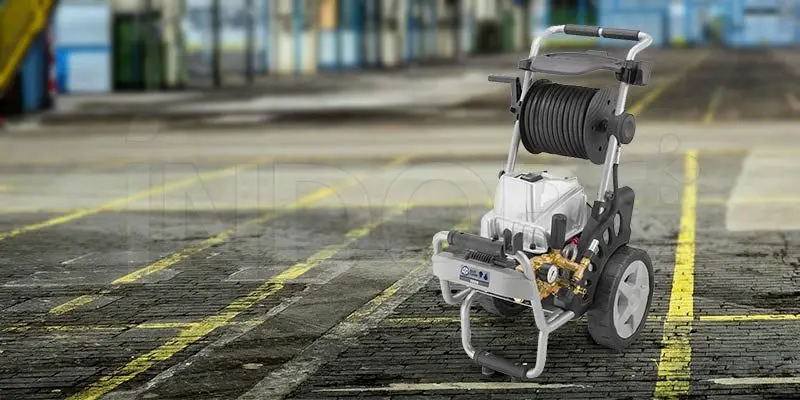

FIELDS OF APPLICATION
- Livestock farming
- Craftsmanship
- Car wash
- Automotive
- Building

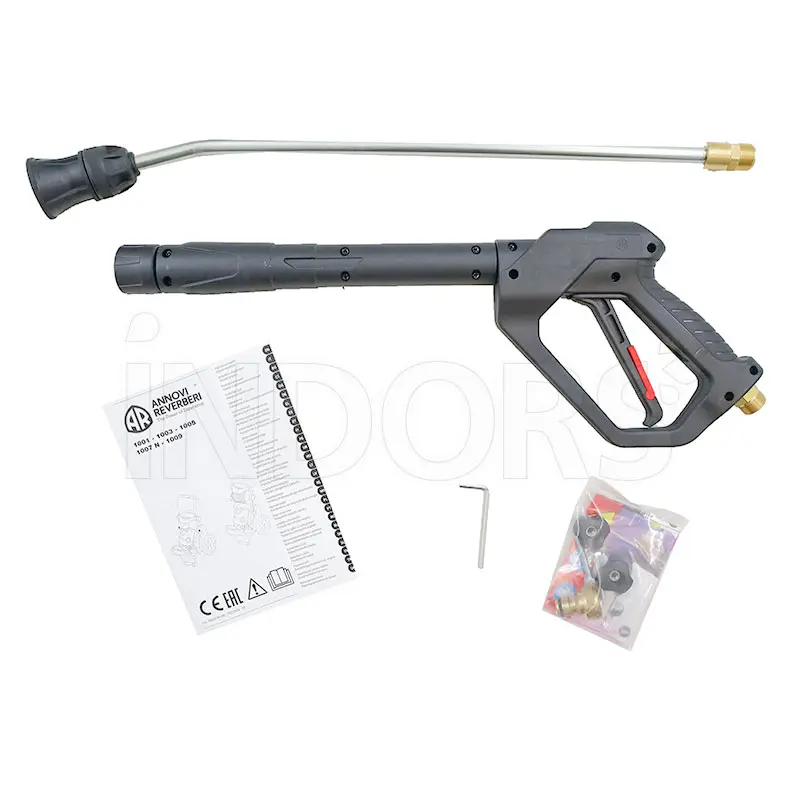

Standard equipment
- Nozzle 3090
- High Pressure Hose 15 m - code 3600970
- Lance with high/low pressure head - code 46221
- Pistol - code 47029
