Annovi Reverberi AR 7870
Pressure Washer with Boiler

Annovi Reverberi AR 7870 - Professional Three-Phase Pressure Washer code 25278-V

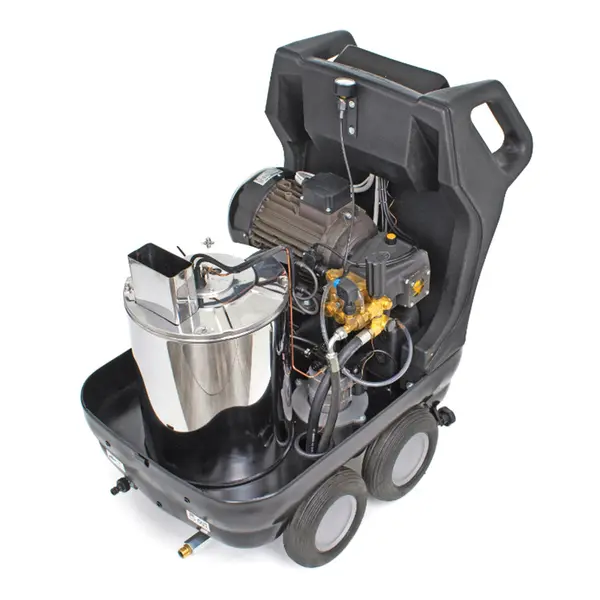

Annovi Reverberi AR 7870 , a professional hot water pressure washer equipped with a three-phase induction motor; this motor has a rotation speed of just 1450 rpm, ensuring greater durability and the ability to perform intensive work. The machine uses high-quality components, such as a 3-piston ceramic pump with a connecting rod and crank system, a by-pass valve with zero pressure in the pump head, and an integrated thermal protection system.

Water heating is provided by a high-efficiency, vertical stainless steel boiler , equipped with a spiral burner cooling system driven by an independent electric motor. Additional features include a double coil and a refractory concrete base.

The Annovi Reverberi 7870 pressure washer guarantees excellent working autonomy thanks to its large 15-liter diesel tank . It is an ideal product for deep cleaning and in cases where the use of high-pressure hot water is necessary; the machine can deliver hot water up to 150°C and is equipped with a pressure regulation system.

Another important feature is the built-in suction of the detergent via the dedicated 5-litre tank.

Technical specifications

• Hot water
• Induction motor
• Connecting rod pump
• IPX5-S1 water resistance
• Brass head
• Total Stop System

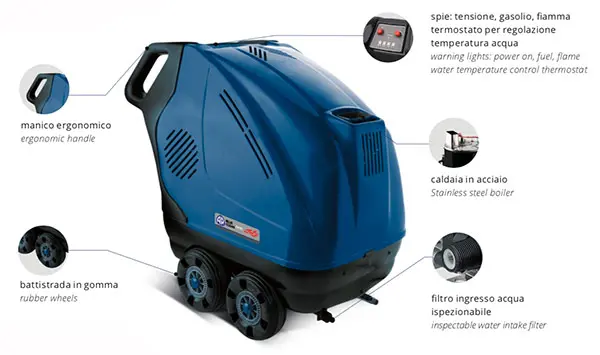

Functional Specifications

Intuitive Controls

The AR 7870 control panel makes it easy to operate this pressure washer. It has three positions : OFF, which indicates the machine is off; an intermediate position indicates the pump is on; and ON, which indicates the burner is on. The knob on the right controls the thermostat , with a range from 0° to 150°C . It has handles for easy movement.

Open car

The Annovi Reverberi AR 7870 pressure washer features overheat protection that shuts down the device in the event of excessive use, protecting the washer from damage. The Annovi Reverberi AR 7870's electric motor has been improved compared to previous models : fuel consumption has been optimized , and performance has been improved. Additionally, the AR 7870 features AVS , an automatic vibration system that suppresses engine vibrations and prevents them from being transmitted to the steering wheel. The Annovi Reverberi AR 7870's motor operates at a low, constant speed.

Self-priming function

A self-priming pump is designed to draw water from an external source (such as a tank, drum, or container) without requiring water to be forced into the pump by initial pressure. This makes the pressure washer more versatile, allowing it to operate even without a direct connection to a pressurized water supply, such as when a tap isn't available, or to use alternative water sources such as tanks and wells.

HRR pump

Characteristics

• 3-piston ceramic pump with connecting rod and crank system
• By-pass valve with pressure relief in the pump head
• Three-phase electric motor with thermal protection
• Remote pressure washer total shutdown system
• Safety pressure switch for boiler shutdown in case of lack of water
• Vertical stainless steel boiler with burner cooling system
• Double serpentine
• Refractory cement bottom
• Microleak card with acoustic signal
• Delay card for boiler shutdown
• Pressure regulation
• 15 L diesel tank with drain plug
• Thermostat
• Built-in detergent suction
• 4/5 litre detergent tank
• Water filter and diesel suction filter
• 10m steel braided reinforced hose

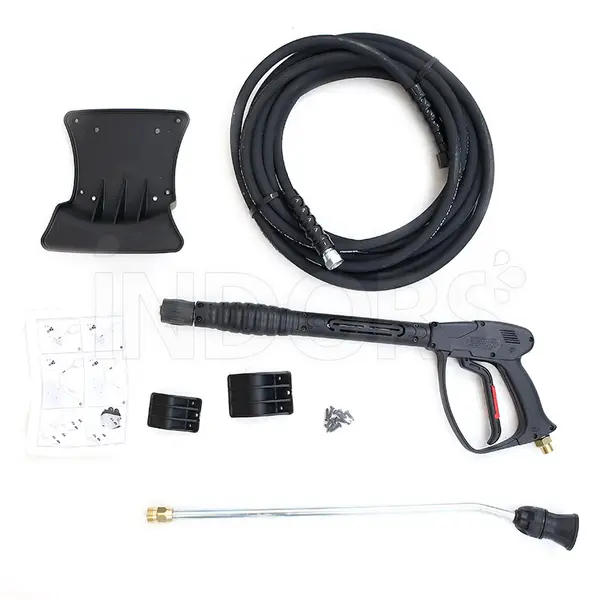

Standard Equipment

• Pistol
• Lance with nozzle holder
• 1/4 MEG nozzle
• Power cable (5 m)
• Reinforced high pressure hose (10 m)
• Instruction manual
