Annovi Reverberi AR 6670
Three-Phase Hot Water Pressure Washer

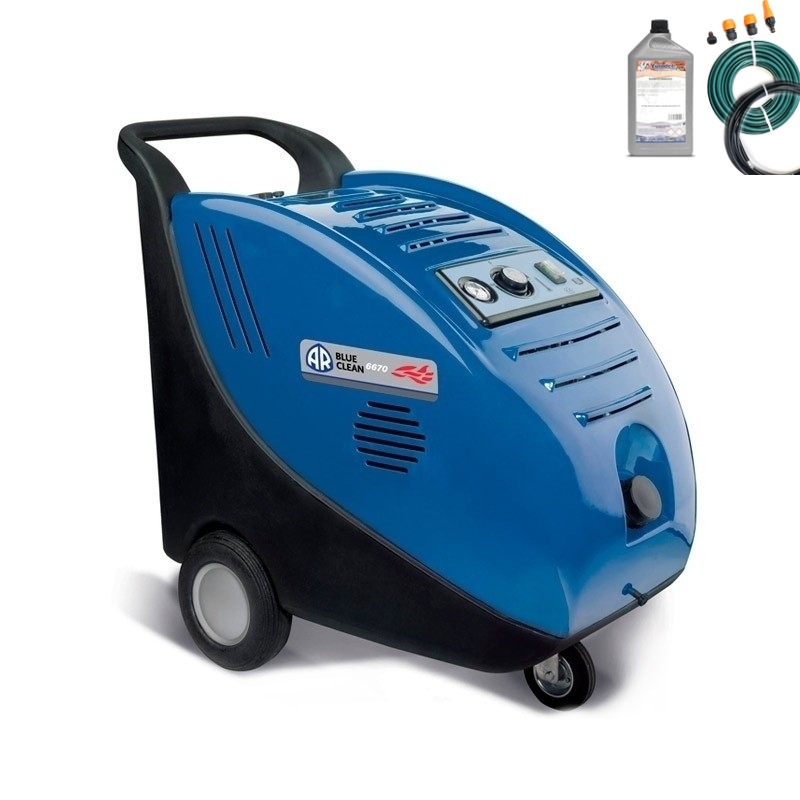

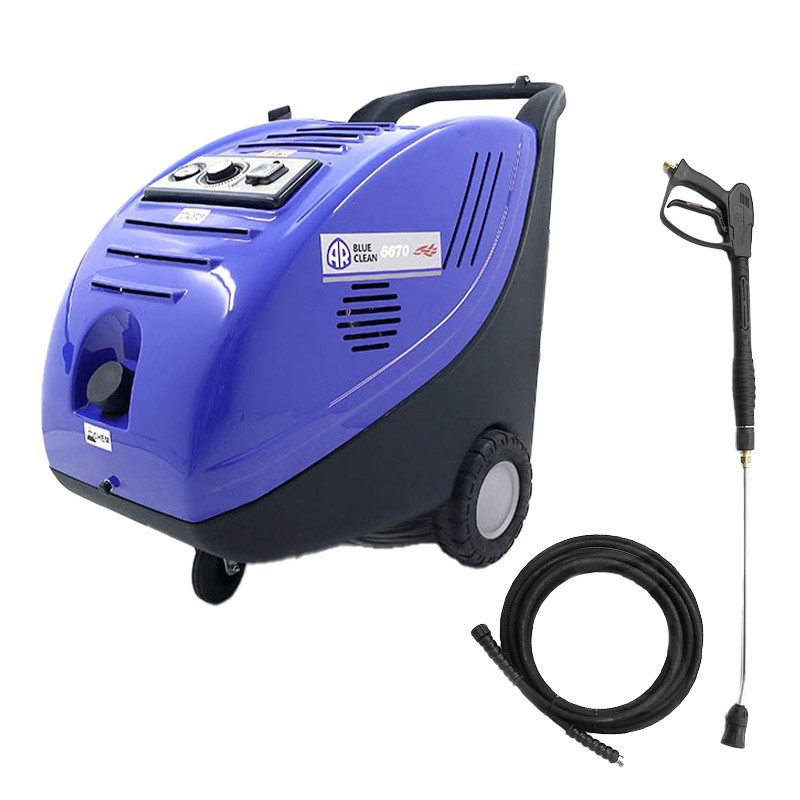

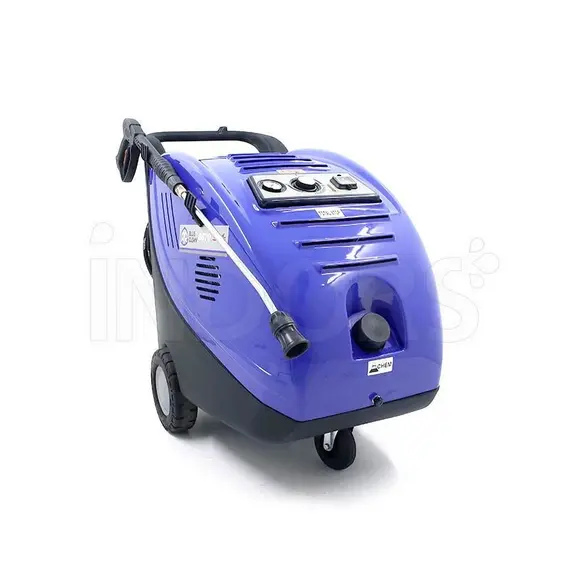

Annovi Reverberi AR 6670 - Hot Water Pressure Washer

Annovi Reverberi AR 6670 hot water pressure washer equipped with a three-phase induction electric motor that operates at 1450 rpm; the motor's low rotation speed ensures great durability over time even with intensive use. The pressure washer is a professional-quality product, equipped with a reliable 3-piston ceramic pump with a connecting rod and crank system, a by-pass valve with zero pressure in the pump head, and integrated thermal protection .

To ensure high efficiency, the boiler is made of painted steel and features a spiral burner cooling system powered by an independent electric motor. Additional features include a double coil and a refractory concrete base.

The Annovi Reverberi 6670 features a large 22-liter diesel tank for long run times. The machine is ideal for deep cleaning and when high-pressure hot water is required; it can deliver water temperatures up to 150°C and allows for pressure adjustment .

Another important feature is the built-in suction of detergent from the dedicated 4-litre tank.

Self-priming function

A self-priming pump is designed to draw water from an external source (such as a tank, drum, or container) without requiring water to be forced into the pump by initial pressure. This makes the pressure washer more versatile, allowing it to operate even without a direct connection to a pressurized water supply, such as when a tap isn't available, or to use alternative water sources such as tanks and wells.

Technical specifications

• Hot water
• Induction motor
• Connecting rod pump
• IPX5-S1 water resistance
• Brass head
• Total Stop System Timed

HRC_EM pump

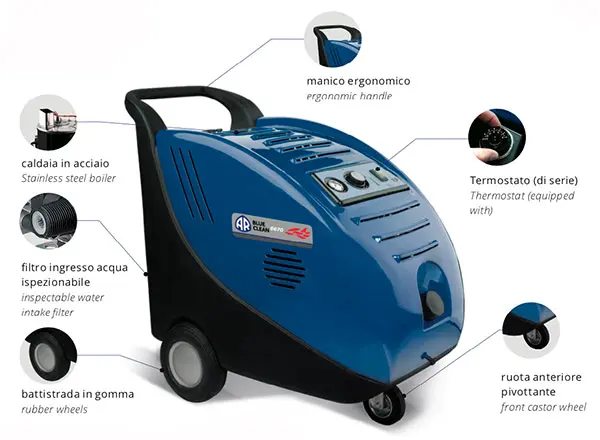

Characteristics

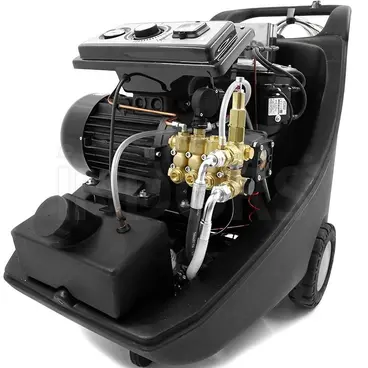

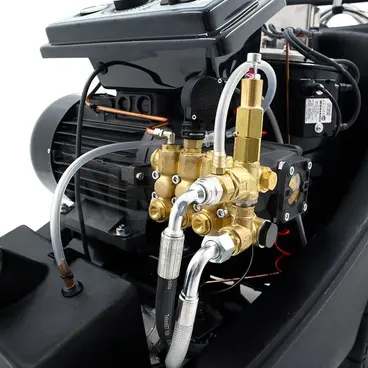

• 3-piston ceramic pump with connecting rod and crank system
• By-pass valve with pressure relief in the pump head
• Integrated thermal protection
• Safety pressure switch for boiler shutdown in case of lack of water
• Vertical boiler in painted steel with cooling system
• Snail burner
• Double serpentine
• Refractory cement bottom
• Delay card for boiler shutdown

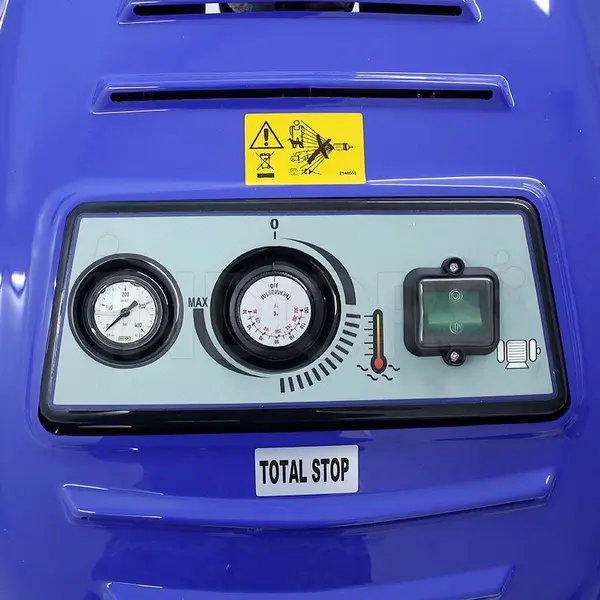

• Pressure regulation
• 22-litre diesel tank with drain plug
• Thermostat
• Detergent suction
• 4 L detergent tank
• Water filter and diesel suction filter

Standard Equipment

• Pistol
• Lance with nozzle holder
• 1/4 MEG nozzle
• Power cable (5 m)
• Reinforced high pressure hose (10 m)
• Instruction manual
