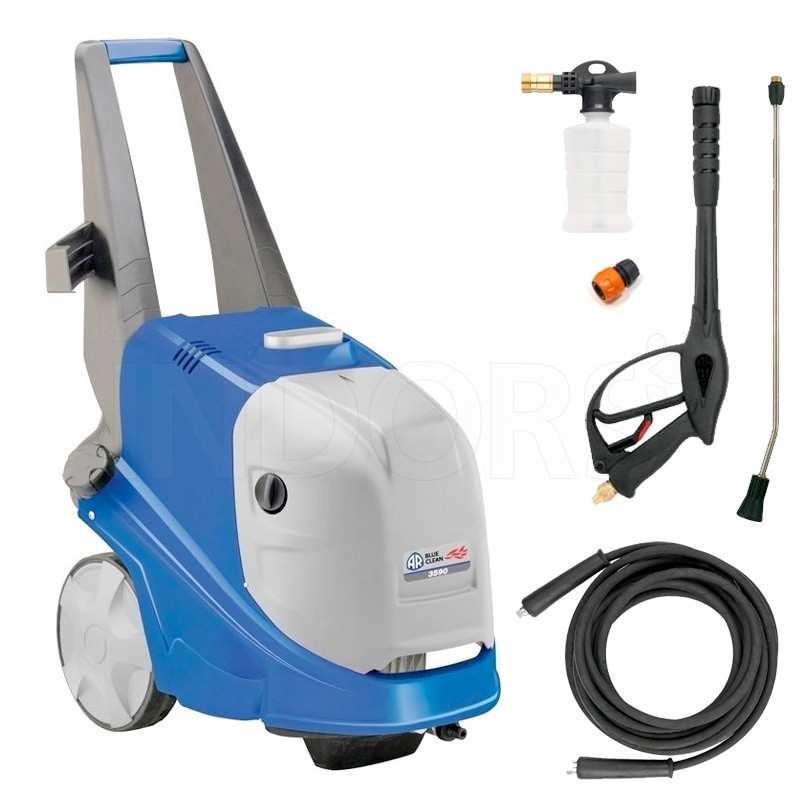

Annovi Reverberi AR 3590 - Hot Water Pressure Washer
Annovi Reverberi AR 3590 , a semi-professional hot water pressure washer with a reliable induction motor and a 3-piston stainless steel pump with a brass head and connecting rod and crank system. To ensure smooth operation, several features have been implemented, including an automatic bypass valve to eliminate pressure in the pump head, a safety pressure switch to shut off the boiler in the event of a water shortage, and a thermal motor protection system.
The pressure washer features a compact and sturdy structure, with large wheels and a convenient handle for easy movement; the lance and gun can be stored on board the machine thanks to the dedicated supports. The vertical boiler with a refractory base and double coil can heat water up to 90°C and is powered by diesel fuel via a 4-liter tank . The easily inspected water and diesel filters help ensure long-lasting efficiency and greater reliability.
The Annovi Reverberi 3590 comes complete with professional accessories and, thanks to the power of hot water, is ideal for deep cleaning and for removing encrustations and stubborn dirt.
Self-priming function
A self-priming pump is designed to draw water from an external source (such as a tank, drum, or container) without requiring water to be forced into the pump by initial pressure. This makes the pressure washer more versatile, allowing it to operate even without a direct connection to a pressurized water supply, such as when a tap isn't available, or to use alternative water sources such as tanks and wells.
Technical specifications
- Hot water
- Induction motor
- Plate pump
- Pressure regulator
- Tank 191
- Brass head
- Total Stop System
HRM pump
- 3-piston axial pump controlled by wobble plate, brass head
- Pistons in tempered stainless steel
- Automatic safety valve with pressure relief in the pump head
- Single-phase induction electric motor with thermal protection
- Remote pressure washer total shutdown system
- Water suction from tank with self-priming function
Examples of Use
Characteristics
- 3-piston stainless steel pump
- Brass head
- Automatic bypass valve
- Induction motor with thermal protection
- Safety pressure switch to shut off the boiler in case of lack of water
- Vertical double coil stainless steel boiler
- 4 L Diesel Tank
- Water filter and diesel suction filter

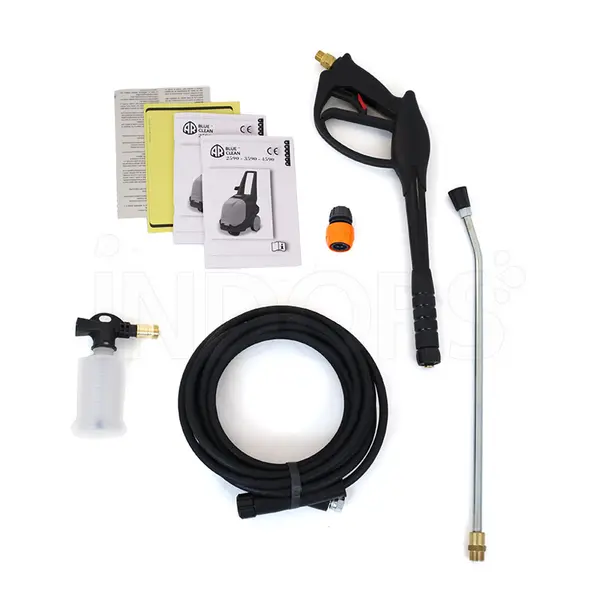

Standard equipment
- Professional high pressure gun
- Professional high pressure lance
- Fan nozzle
- 8-meter Reinforced High Pressure Hose
- Foaming kit
- Water inlet filter
- Instruction Booklet
