Annovi Reverberi AR 6970
Three-Phase Electric Pressure Washer

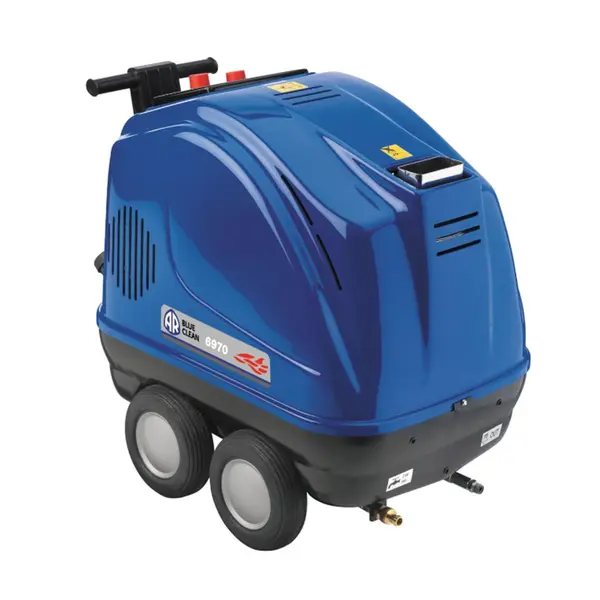

Annovi Reverberi AR 6970 - Professional Hot Water Pressure Washer 230 bar

Annovi Reverberi AR 6970 , a professional-quality hot water pressure washer with a three-phase induction motor with integrated thermal protection . The motor, running at just 1450 rpm , allows for prolonged use and ensures reliability and durability over time. The high-quality 3-piston ceramic pump with connecting rod and crank system uses an automatic bypass valve that eliminates pressure in the pump head.

The Annovi Reverberi pressure washer features the Total Stop system for remote shutdown, a safety pressure switch to shut off the boiler in the event of a water shortage, and a delay card for boiler shutdown. The large 14-liter diesel tank ensures excellent autonomy and features a convenient drain plug for emptying. Other important features include a thermostat for temperature regulation, a pressure regulation system, water and diesel filters , and a detergent suction system directly from the integrated 6-liter tank.

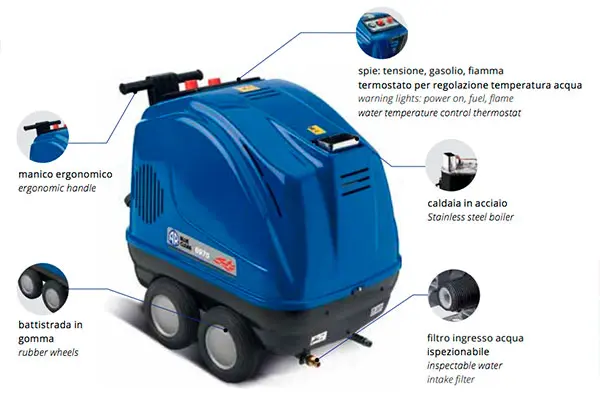

The Annovi Reverberi AR 6970 is easily moveable thanks to its compact structure , large rubber wheels and practical ergonomic handle ; the control panel is easy to use and includes all the indicator lights. The vertical stainless steel boiler can guarantee hot water with a temperature of up to 150°C , has a refractory cement bottom and a double coil; for cooling, a spiral burner cooling system is used.

Thanks to the high water temperatures, the pressure washer is ideal for cleaning stubborn dirt and encrustations .

Self-priming function

A self-priming pump is designed to draw water from an external source (such as a tank, drum, or container) without requiring water to be forced into the pump by initial pressure. This makes the pressure washer more versatile, allowing it to operate even without a direct connection to a pressurized water supply, such as when a tap isn't available, or to use alternative water sources such as tanks and wells.

• Hot water
• Induction motor
• Connecting rod pump
• IPX-S1 water resistance
• Brass head
• Total Stop System

HRR pump

Characteristics

• 3-piston ceramic pump with connecting rod and crank system
• By-pass valve with pressure relief in the pump head
• Integrated thermal protection
• Safety pressure switch for boiler shutdown in case of lack of water
• Vertical stainless steel boiler with cooling system
• Snail burner
• Double serpentine
• Refractory cement bottom
• Delay card for boiler shutdown
• Pressure regulation
• 14-litre diesel tank with drain plug
• Thermostat
• Detergent suction
• 6 litre detergent tank
• Water filter and diesel suction filter

Equipment

• Pistol
• Lance with nozzle holder
• 1/4 MEG nozzle
• Power cable (5 m)
• Reinforced high pressure hose (10 m)
• Instruction manual
