Annovi Reverberi AR 1003
High Pressure Washer 630 L/h

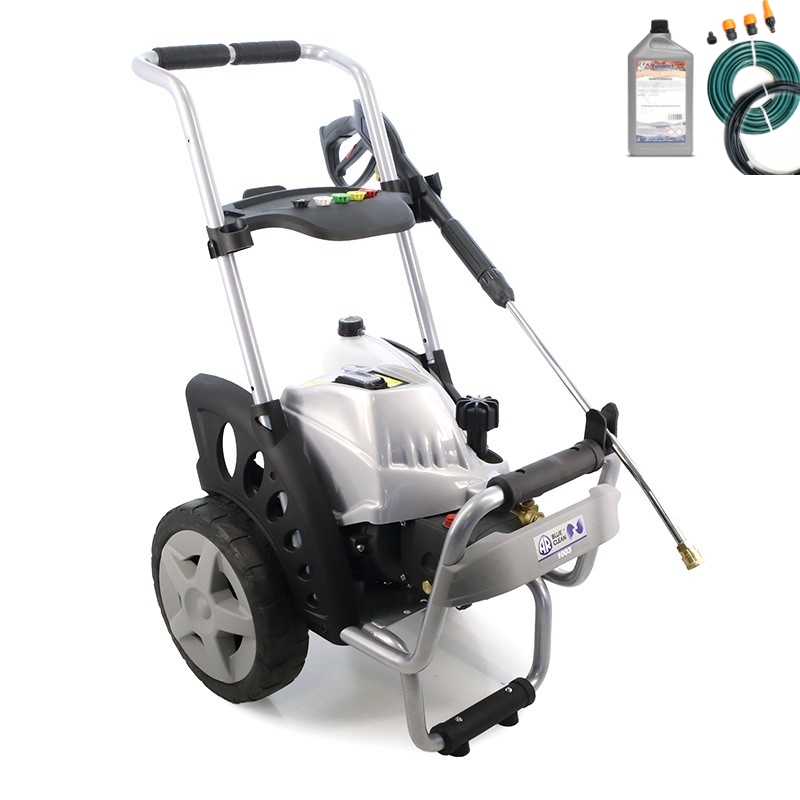

Annovi Reverberi AR 1003 - Cold Water Pressure Washer

Annovi Reverberi AR 1003 cod.24385-V , compact professional-quality cold water pressure washer with a single-phase induction motor . The motor is of the highest quality and features an integrated thermal protection system; the latter's low rpm allows for continuous use even for extended periods and guarantees durability and reliability over time . The pressure washer is equipped with a three-piston ceramic pump with a connecting rod and crank system and also features an automatic by-pass valve with zero pressure in the pump head.

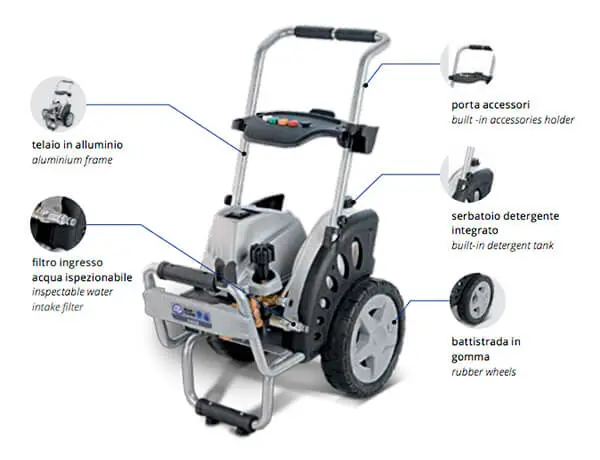

The machine's structure is highly durable and compact, and the large rear wheels with rubber tread, combined with the practical aluminum handle, allow for easy movement even on rough terrain. The pressure washer is equipped with a detergent suction system via a convenient 3-liter tank, an inspectable water filter, and pressure monitoring via the built-in pressure gauge ; both the pressure and the amount of detergent used can be adjusted .

The Annovi Reverberi AR 1003 pressure washer (code 24385-V) comes with professional accessories and a variety of nozzles for every type of cleaning; the lance can be stored in its own compartment, and there's also a convenient accessory holder on the machine's frame.

Technical specifications

• Cold water
• Self-priming function
• Induction motor
• Connecting rod pump
• IPX5-S1 water resistance
• Brass head
• Total Stop System

Functional specifications

Single-phase electric motor

The Annovi Reverberi AR 1003 cod. 24385-V is equipped with a single-phase induction electric motor with thermal protection that ensures stable and long-lasting operation, while the pressure regulation and pressure gauge allow you to easily adapt performance to different cleaning needs. This professional pressure washer has a power output of 3 kW , with a 230 V power supply.

Detergent suction and inspectable filter

The presence of a built-in detergent suction system and an inspectable filter guarantees effective and prolonged cleaning over time, while the 3 L detergent tank allows you to always have the necessary detergent available for every type of job.

Easy-to-handle pressure washer

With a 5m power cable length , this pressure washer offers great freedom of movement, allowing you to work comfortably even in larger spaces.

150 bar cold water pressure washer

This Annovi pressure washer operates on cold water with a pressure of 150 bar , a flow rate of 630 L/h and 1450 rpm .

Total Stop

Total stop is a system that automatically shuts off the pressure washer pump when the trigger is not pressed, reducing energy consumption and wear and tear on the machine.

Self-priming function

A self-priming pump is designed to draw water from an external source (such as a tank, drum, or container) without requiring water to be forced into the pump by initial pressure. This makes the pressure washer more versatile, allowing it to operate even without a direct connection to a pressurized water supply, such as when a tap isn't available, or to use alternative water sources such as tanks and wells.

HRC_EM pump

Characteristics

• Professional cold water pressure washer
• 3-piston axial pump
• Crank connecting rod system
• Automatic bypass valve
• Resetting the pump head pressure
• Electric induction motor
• HRC-EM pump
• Total Stop System
• 5m reinforced hose
• Handle and rubbers for easy transport
• Pressure 150 bar

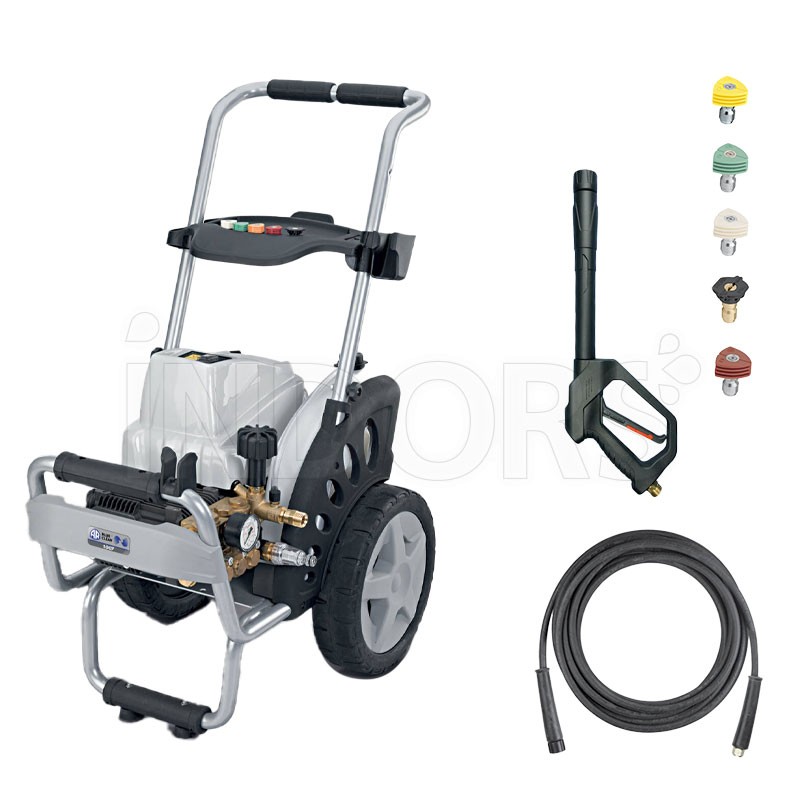

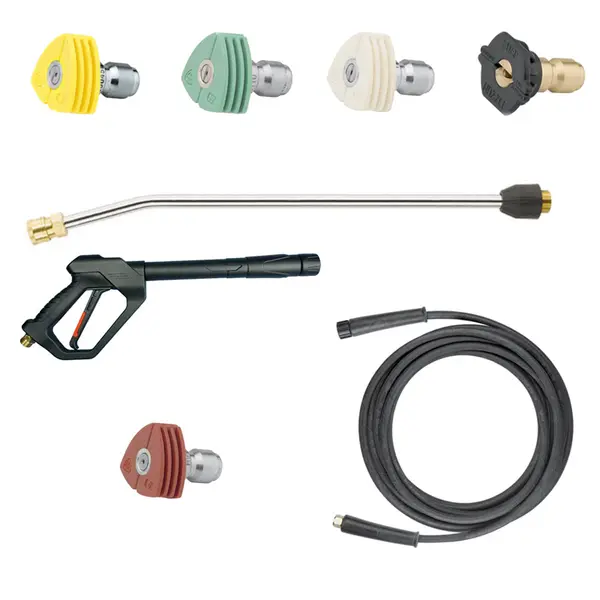

Standard Equipment

• Yellow Nozzle code 3600360
• Green Nozzle code 3600370
• White Nozzle code 3600380
• Black Nozzle code 3600400
• Lance Extension Without Nozzle 49 cm code 3600650
• High Pressure Hose 10 m code 3961050
• Instruction Booklet
