Active Power Track 1315 EXT
Motocarriola Estensibile
300 Kg motore Active

Active Power Track 1315 Extendable Wheelbarrow with Active 6 HP Engine Capacity 300 Kg

The Power Track Active 1315 EXT is a professional transport wheelbarrow , designed to solve all the challenges of material handling in difficult environments. Thanks to its compact and robust structure, it is ideal for use in narrow spaces or on uneven terrain, where larger and less agile vehicles cannot operate. Perfect for gardening, agriculture, the Active 1315 wheelbarrow with Adjustable tipping body offers power and safety, maintaining stability even on steep slopes .

Active Power Track 1315 has an overall width of 59 cm and a length of 183.5 cm .
The choice of components, materials and construction methods highlight that this machine was built to last .

The main feature of this Active 1315 tracked Power Track is the presence of the extendable body , that is with sides that can be extended from 59 to 84 cm and extended from 93.5 to 150 cm . This type of wheelbarrow is often used in agriculture to transport bulky goods of different sizes. Its peculiarity lies in the possibility of choosing to lower the sides of the body and/or adjust them to increase the size of the loading platform, thus facilitating the transport of large goods.

Also available on our website in the version with a 4.8 HP Honda engine .

Technical Specifications

• Engine: Active
• Power: 6 HP / 4.4 kW - 212 cc
• Power supply : Green Petrol
• Transmission: 2 AV + 1 RM
• Clutch : Mechanical with belt tension
• Brake : Internal expansion parking brake
• Max. slope when empty: 25°
• Max. slope at full load: 15°
• Tipping : Manual

Functional Specifications

Robust structure and safety

The Active 1315 Extendable wheelbarrow is built to withstand the most intense working conditions . Its structure reduces vibrations and noise, while the safety braking system with automatic blocking prevents unwanted movements even on uneven terrain. The handlebars bolted to the frame prevent cracks and breakages, while the automatic braking system activates immediately when the safety lever is released. A transmission lock prevents the machine from rolling backwards.

Maximum Traction and Stability

The chassis, closed at the bottom to protect the transmission components from interference with foreign objects, is equipped with a manual track tension adjustment system, ensuring maximum stability and grip on any type of surface, also thanks to the presence of high-resistance 180 mm wide-tread tracks , with internal inserts connected by steel cables embedded in the rubber structure.

The tracks of this galvanized Active 1315 Extendable wheelbarrow make it easier to move forward on rough terrain and overcome even large obstacles, also thanks to the presence of a track tensioning wheel . The Active 1315 Extendable wheelbarrow has 2 rollers .

Galvanized Steel Frame

The frame and engine support plates are constructed using robust profiles that contribute to the reduction of noise and vibrations . The driving handles are bolted to the frame to avoid cracks and breakages of the welded parts; There are large stiffening reinforcements applied at the bending points. This Power Track has reduced overall width of only 590 mm .

Powerful and Reliable Transmission System

The transmission unit is equipped with two half-crankcases divided along a vertical plane , cast in light alloys of fine workmanship. Equipped with a gearbox (2 FWD + 1 REV) operated by a train of V-belts, this wheelbarrow with opening and tipping body ensures rapid movement, high maneuverability and excellent ability to overcome any type of obstacle (ladders, logs, differences in level, etc.), also thanks to the particularly low center of gravity that maintains its stability.

Versatile Expandable and Tipping Body

The Active 1315 wheelbarrow is supplied with an Extendable tipping and extendable body that guarantees maximum resistance to wear and corrosion. Particularly suitable for transporting loose materials.

Power Track Active 1315 Dum has a load capacity of 300 kg while the tipping angle of 25° when empty (15° when fully loaded) facilitates emptying which is operated manually via a practical manual lever located on the side of the body (manual lifting) .

Mitsubishi GB181 Engine

The Active 1315 wheelbarrow with opening body has an Active 4-stroke engine , and its power is 4.4 kW (6 HP) with a displacement of 212 cc . The starting, which occurs via a self-winding recoil mechanism, is always ready, requiring minimal effort from the operator to start.
Green petrol power supply.

Dynamic Performance and Ease of Use

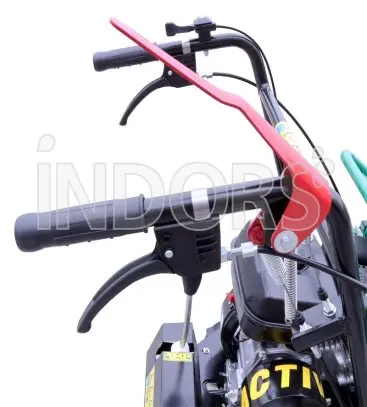

During dynamic tests, the Active 1315 Extendable wheelbarrow demonstrated excellent control ergonomics, with easy-to-access and intuitive levers for precise steering. The low centre of gravity and balanced weight distribution provide superior stability even on sloping terrain. It is the ideal solution for safely tackling slopes, drops and other obstacles, with rapid manoeuvrability and reduced noise emissions thanks to the long gear ratios.

The Active 1315 Extendable wheelbarrow is a professional product, certainly at the top of the range, which stands out for its high performance both in terms of load capacity and capacity, as well as in terms of stability and traction force in any situation and terrain.

Characteristics

• Active 4-stroke petrol engine
• Self-rewinding pull start
• Transmission 2 AV + 1 RM
• Mechanical clutch with belt tension
• Adjustable body with manual tipping
• Accurate design and solid construction
• Handling, traction capacity and working efficiency
• Ease of maintenance
• Essential and unmistakable aesthetics

Speed

• 1 AV: 1.9 Km/h
• 2 AV: 3.9 Km/h
• 1RM: 1.8 Km/h
