Active Power Track 1460 DMP
Motocarriola Dumper
Portata 450 Kg
4,6 kW
181 cc - 6,3 HP
PETROL 4 STROKE

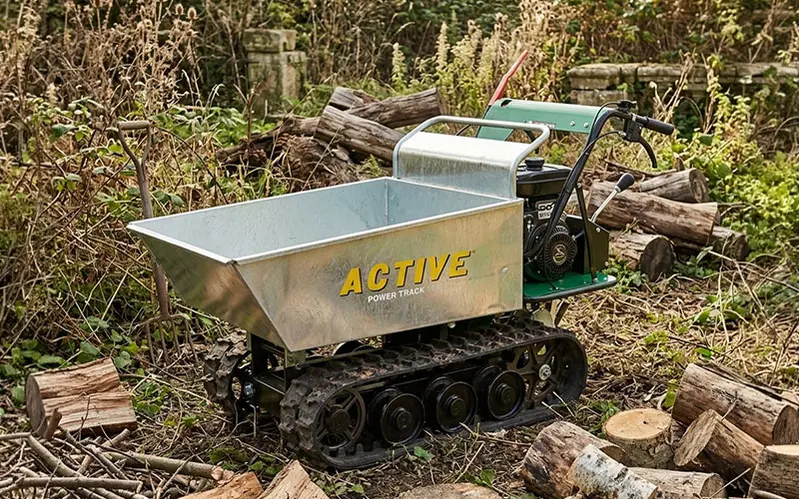

Active Power Track 1460 Tracked Power Barrow with Dumper Body Capacity 450 kg
The Power Track Active 1460 DMP is a professional transport wheelbarrow , designed to solve all the challenges of material handling in difficult environments. Thanks to its compact and robust structure, it is ideal for use in narrow spaces or on uneven terrain, where larger and less agile vehicles cannot operate. Perfect for construction sites, industries, building and gardening, the Active 1460 Dumper wheelbarrow offers power and safety, maintaining stability even on steep slopes .
The choice of components, materials and construction methods highlight that this machine was built to last .
The main feature of this Power Track Active 1460 is the presence of the galvanized dumper body , which is particularly suitable for use in industry. Its peculiarity lies in the ability to tip over to facilitate the unloading of the contents, such as sand, gravel, debris, or other loose and liquid materials.
ACTIVE 1460 is available here in 4 variants to choose from:
- Extendable box with manual tipping - code 800901
- Extendable body with hydraulic tipping - code 800906
- Extendable body with manual tipping + PTO - code 800932
- Extendable body with hydraulic tipping + PTO - code 800934
Also available on our website in the version with extendable body or with sprayer.
Technical Specifications
- Engine: Mitsubishi GB181 4-stroke, single-cylinder, air-cooled, OHV overhead valve engine
- Power: 6.3 HP / 4.6 kW - 181 cc
- Power supply : Green Petrol
- Tank capacity : 3.6 L
- Transmission: 3 AV + 2 RM
- Drive sprocket: Steel
- Clutch : Mechanical with belt tension
- Brake : Internal expansion parking brake
- Ground Pressure : 0.066/0.218 (unload/load Kg/cm2)
- Max. slope when empty: 25°
- Max. slope at full load: 15°
- Tipping of the body: Manual / Hydraulic
Functional Specifications
Robust structure and safety
The Active 1460 Dumper wheelbarrow is built to withstand the most intense working conditions . Its 2 mm profiled structure reduces vibrations and noise, while the safety braking system with automatic blocking prevents unwanted movements even on uneven terrain. The handlebars bolted to the frame prevent cracks and breakages, while the automatic braking system activates immediately when the safety lever is released. A transmission lock prevents the machine from rolling backwards.
Maximum Traction and Stability
The chassis, closed at the bottom to protect the transmission components from interference with foreign objects, is equipped with a manual track tension adjustment system, ensuring maximum stability and grip on any type of surface, also thanks to the presence of high-resistance 180 mm wide-tread tracks , with internal inserts connected by steel cables embedded in the rubber structure.
The tracks of this galvanized Active 1460 Dumper power barrow move thanks to an efficient toothed sprocket in stamped steel , placed at the front and in a raised position to make it easier to move forward on rough terrain and to overcome even large obstacles, and thanks to a cast iron track tensioning wheel . The Active 1460 Dumper power barrow has 3 rollers .
Galvanized Steel Frame
The frame and the engine support plates are built using robust 2 mm thick profiles that contribute to the reduction of noise and vibrations . The driving handles are bolted to the frame to avoid cracks and breakages of the welded parts; There are large stiffening reinforcements applied at the bending points. This Power Track has reduced transverse dimensions of only 700 mm .
Powerful and Reliable Transmission System
The transmission unit is equipped with two half-crankcases divided along a vertical plane , cast in light alloys of fine workmanship. Equipped with a gearbox (3 FWD + 2 REV) operated by a train of V-belts, this wheelbarrow with tipping body ensures rapid movement, high maneuverability and excellent ability to overcome any type of obstacle (ladders, logs, differences in level, etc.), also thanks to the particularly low center of gravity that maintains its stability.
Versatile Tipper
The Active 1460 wheelbarrow is supplied with a tipping Dumper body in hot-dip galvanized sheet metal capable of guaranteeing maximum resistance to wear and corrosion. Particularly suitable for transporting loose materials and also suitable for transporting liquids thanks to its watertight seal .
Power Track Active 1460 Dum has a load capacity of 600 kg while the tipping angle of 25° when empty (15° when fully loaded) makes emptying easier and, depending on the model chosen, can be operated manually via a practical manual lever located on the side of the body (manual lifting) or via a hydraulic tipping system of the body with a powerful piston and distributor with control lever (hydraulic lifting)* .
Mitsubishi GB181 Engine
The Active 1460 Dumper wheelbarrow has a Mitsubishi GB 181 4-stroke , single-cylinder , air-cooled , OHV overhead valve engine. Its power is 4.6 kW with a displacement of 163 cc . The start, which occurs via a self-winding recoil mechanism, is always ready, requiring minimal effort from the operator to start.
The unleaded petrol tank has a capacity of 3.6 L.
Dynamic Performance and Ease of Use
During dynamic tests, the Active 1460 Dumper wheelbarrow demonstrated excellent control ergonomics, with easy-to-access and intuitive levers for precise driving. The low centre of gravity and balanced weight distribution provide superior stability even on sloping terrain. It is the ideal solution for tackling slopes, drops and other obstacles in safety, with rapid manoeuvrability and reduced noise emissions thanks to the long gear ratios.
The Active 1460 Dumper wheelbarrow is a professional product, certainly at the top of the range, which stands out for its high performance both in terms of load capacity and carrying capacity, as well as in terms of stability and traction force in any situation and terrain.
Characteristics
- 4-stroke petrol engine, single cylinder with air cooling and OHC overhead valves
- Self-rewinding pull start
- 3 AV + 2 RM transmission
- Mechanical clutch with belt tension
- Manual or Hydraulic Tipper
- Accurate design and solid construction
- Handling, traction capacity and working efficiency
- Ease of maintenance
- Essential and unmistakable aesthetics
- Possibility of PTO KIT (optional)
Speed
- 1 AV: 1.93 Km/h
- 2 AV: 3.87 Km/h
- 3 AV: 6.00 Km/h
- 1 RM: 1.84 Km/h
- 2 RM: 3.68 Km/h
Watch the video
All components of the Active 1460 Dumper wheelbarrow are MADE IN ITALY.
Active: 30 years of excellence made in Italy
For 30 years, Active has been the Made in Italy company specialized in the production of engines and equipment for gardening and agriculture , such as brush cutters , chainsaws and lawnmowers , offering products of excellent quality. The continuous research and development of new technologies allows this 100% Italian brand to stand out among the leaders in the sector, combining innovation , sustainability and superior performance .
OPTIONAL ACCESSORIES (ON REQUEST)
- Snow Blade Kit
composed of Cylinder + Tubes - code 800940
This kit is an easy-to-use tool that allows you to clean the stable , pile up loose material and clear snow or inert material. The kit is made up of a sturdy steel blade that can be adjusted both vertically and laterally. The blade can be easily assembled and disassembled. The vertical movement is guaranteed by a hydraulic system with a blocking valve and quick couplings, while the lateral movement is guaranteed by a practical manual adjustment system. It is also equipped with a floating position for the distributor.
Blade length: 104 cm
Blade Height: 49.5 cm
Angle from +15° to -45°
Technical Data
Motor | EH17-2B |
Type | 4 stroke, Petrol |
Displacement | 172cc |
Power at 2000 rpm | 4.4 Kw - 6.0 HP |
ignition | self-winding tear-off |
Tank capacity | 3.6 liters |
Transmission | 3 Av + 2 RM |
Traction Wheels | Steel Toothed |
Clutch | Belt tension mechanics |
Brake | Internal expansion parking |
Maximum slope empty | 25° |
Maximum slope at full load | 15th |
Tipping the box | Manual or Hydraulic |
Minimum height from the ground | 5 cm |
Max. forward speed | 6.0 km/h |
Max. reverse speed | 3.68 km/h |
Box dimensions | 92 x 66 x 32 cm |
Box Capacity | 157 L |
Dimensions | 167 x 67 x 100 cm |
Flow rate | 450 Kg |
Weight | 190 kg |
Technical Data
Motor | EH17-2B |
Type | 4 stroke, Petrol |
Displacement | 172cc |
Power at 2000 rpm | 4.4 Kw - 6.0 HP |
ignition | self-winding tear-off |
Tank capacity | 3.6 liters |
Transmission | 3 Av + 2 RM |
Traction Wheels | Steel Toothed |
Clutch | Belt tension mechanics |
Brake | Internal expansion parking |
Maximum slope empty | 25° |
Maximum slope at full load | 15th |
Tipping the box | Manual or Hydraulic |
Minimum height from the ground | 5 cm |
Max. forward speed | 6.0 km/h |
Max. reverse speed | 3.68 km/h |
Box dimensions | 92 x 66 x 32 cm |
Box Capacity | 157 L |
Dimensions | 167 x 67 x 100 cm |
Flow rate | 450 Kg |
Weight | 190 kg |
