Active Power Track 1315 EXT
Motocarriola Estensibile
300 Kg motore Honda

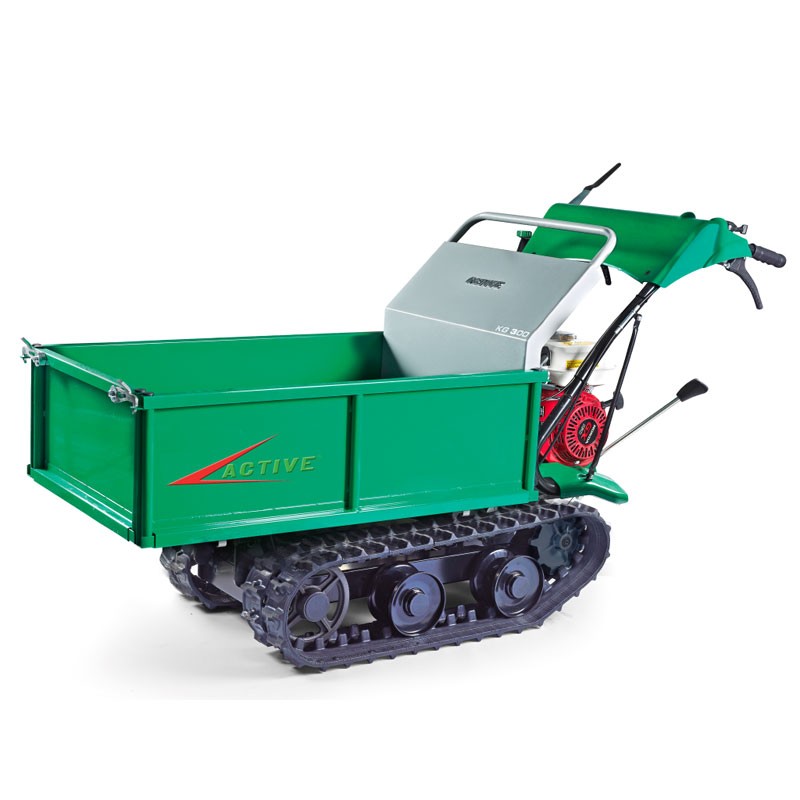

Active Power Track 1315 Extendable Power Barrow with 4.8 HP Honda Engine, Capacity 300 Kg

The Power Track Active 1315 EXT is a professional transport wheelbarrow , designed to solve all material handling challenges in harsh environments. Thanks to its compact and robust structure, it is ideal for use in tight spaces or on uneven terrain, where larger and less agile vehicles cannot operate. Perfect for gardening and agriculture, the Active 1315 wheelbarrow with adjustable tipping body offers power and safety, maintaining stability even on steep slopes .

Active Power Track 1315 has an overall width of 59 cm and a length of 183.5 cm .
The choice of components, materials and construction methods highlight that this machine was built to last .

The main feature of this Active 1315 tracked Power Track is its extendable body , with sides that can be widened from 59 to 84 cm and extended from 93.5 to 150 cm . This type of wheelbarrow is often used in agriculture to transport bulky goods of various sizes. Its unique feature is the ability to choose to lower the sides of the body and/or adjust them to increase the size of the loading platform, thus facilitating the transport of large goods.

Also available on our website in a version with a 6 HP engine .

Technical Specifications

• Engine: Honda GX160 OHV
• Power: 4.8 HP / 3.6 kW - 163 cc
• Power supply : Green Petrol
• Tank Capacity : 3.1 L
• Transmission: 2 AV + 1 RM
• Clutch : Mechanical belt tension
• Brake : Internal expansion parking brake
• Max. slope when empty: 25°
• Max. slope at full load: 15°
• Tipping : Manual

Functional Specifications

Robust structure and safety

The Active 1315 Extendable power barrow is built to withstand the most intense working conditions . Its structure reduces vibration and noise, while the safety braking system with automatic locking prevents unwanted movement even on uneven terrain. The handlebars are bolted to the frame to prevent cracks and breakages, while the automatic braking system activates immediately when the safety lever is released. A transmission lock prevents the machine from rolling backwards.

Maximum Traction and Stability

The undercarriage, closed at the bottom to protect the transmission components from interference with foreign objects, is equipped with a manual track tension adjustment system, ensuring maximum stability and grip on any type of surface, also thanks to the presence of high-resistance 180 mm wide-tread tracks , with internal inserts connected by steel cables embedded in the rubber structure.

The tracks on this galvanized Active 1315 Extendable power barrow make it easier to move forward on rough terrain and overcome even large obstacles, thanks also to the presence of a track tensioning wheel . The Active 1315 Extendable power barrow has 2 rollers .

Galvanized Steel Frame

The frame and engine mounting plates are constructed using sturdy profiles that help reduce noise and vibration . The handlebars are bolted to the frame to prevent cracks and breakages of the welded parts; extensive stiffening reinforcements are evident at the bending points. This Power Track has reduced overall width by just 590 mm .

Powerful and Reliable Transmission System

The transmission unit features two vertically split half-crankcases , cast in high-quality light alloys. Equipped with a gearbox (2 forward + 1 reverse) driven by a V-belt system, this wheelbarrow with an opening and tipping container ensures rapid movement, high maneuverability, and excellent ability to overcome any type of obstacle (ladders, logs, drops, etc.), thanks also to its particularly low center of gravity that maintains its stability.

Versatile Expandable and Tipping Body

The Active 1315 wheelbarrow comes with a tilting and extendable extensible body that guarantees maximum resistance to wear and corrosion. Particularly suitable for transporting loose materials.

Power Track Active 1315 Dum has a load capacity of 300 kg while the tipping angle of 25° when empty (15° when fully loaded) facilitates emptying which is operated manually via a practical manual lever located on the side of the body (manual lifting) .

Honda GX160 engine

The Active 1315 power barrow with opening body has a Honda GX160 4-stroke , single-cylinder , air-cooled , overhead valve (OHV) engine. Its power is 3.6 kW (4.8 HP) with a displacement of 163 cc . The self-rewinding recoil starter mechanism is always ready, requiring minimal effort from the operator to start.
The unleaded petrol tank has a capacity of 3.1 L.

Dynamic Performance and Ease of Use

During dynamic testing, the Active 1315 Extendable power barrow demonstrated excellent control ergonomics, with easy-to-access, intuitive levers for precise operation. The low center of gravity and balanced weight distribution provide superior stability even on slopes. It's the ideal solution for safely navigating slopes, drops, and other obstacles, offering rapid maneuverability and reduced noise emissions thanks to the long gear ratios.

The Active 1315 Extendable power barrow is a professional product, certainly at the top of the range, which stands out for its high performance both in terms of load capacity and carrying capacity, as well as in terms of stability and traction force in any situation and terrain.

Characteristics

• 4-stroke petrol engine, single cylinder, air-cooled, with OHC overhead valves
• Self-recoil pull ignition
• Transmission 2 AV + 1 RM
• Mechanical belt tension clutch
• Adjustable body with manual tipping
• Accurate design and solid construction
• Handling, traction capacity and working efficiency
• Ease of maintenance
• Essential and unmistakable aesthetics

Speed

• 1 AV: 1.9 Km/h
• 2 AV: 3.9 Km/h
• 1 RM: 1.8 Km/h
