Fast Verdini IT500E
Battery-Powered Mini Dumper
With/Without Self-Loading Shovel

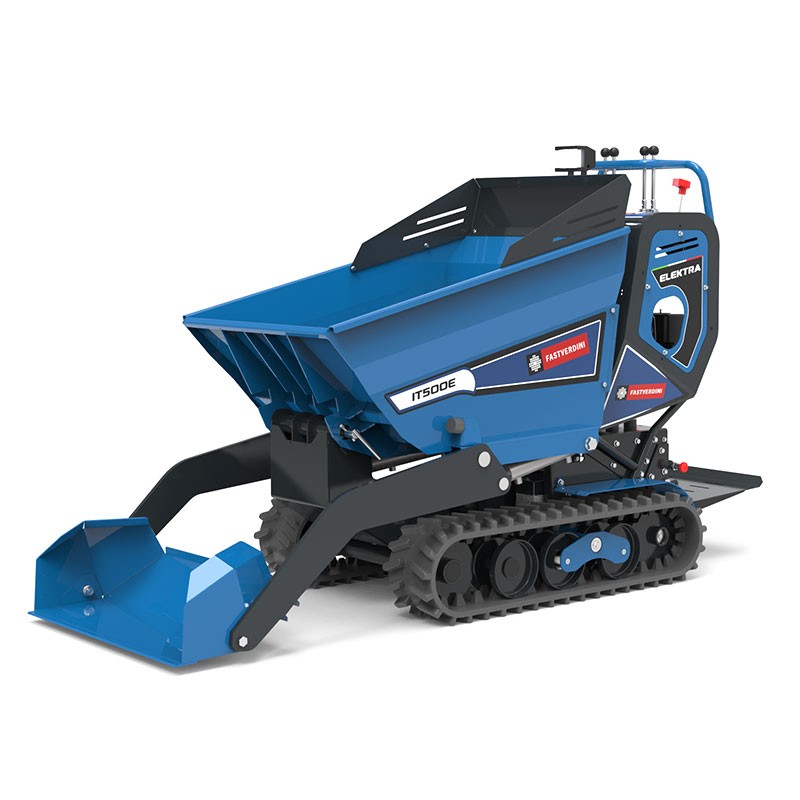

Fast Verdini IT500E - Battery-Powered Mini Dumper With/Without Self-Loading Shovel

Fast Verdini IT500E is an electric battery-powered mini dumper designed for transporting materials in construction, agriculture, green maintenance, and sites where low emissions and reduced noise are required. Equipped with a self-loading shovel, 0.22 m³ dumper body, overhead protection, ergonomic control panel, and foldable operator platform, it ensures practicality and safety during work. The powerful 6.6 kW electric motor with three speeds, powered by dual 48 V 40 Ah lithium batteries, offers up to 4-4.5 hours of operating time and full recharge in about 2 hours. The hydrostatic transmission with orbital motor, hydraulic tipping, and oscillating roller system ensure excellent traction even on difficult terrain. With a load capacity of 500 kg and a capacity of 350 kg on slopes, the Fast Verdini IT500E represents an efficient, quiet, and versatile solution for professional transport.

Available Versions

Fast Verdini IT500E is supplied with 2 batteries included. Versions can be selected from the dropdown menu:

• Without self-loading shovel
• With self-loading shovel

Functional Specifications

Professional battery-powered mini dumper for construction, agriculture, and green maintenance

Fast Verdini IT500E is a professional electric mini dumper designed for moving materials quickly and efficiently. Thanks to battery power, this Fast Verdini mini dumper is the ideal solution for operating in indoor construction sites, agriculture, and rural and urban maintenance where limiting emissions and noise is necessary. The IT500E is equipped with a self-loading shovel, a 0.22 m³ dumper body, overhead protection, an intuitive control panel, and a foldable operator platform, offering high practicality during loading and transport operations. The oscillating roller system improves track grip, increasing stability even on uneven terrain.

6.6 kW electric motor with long-life lithium batteries

The heart of the Fast Verdini IT500E is the modern electric Powertrain, consisting of a 6.6 kW motor with integrated position sensor and VID 165 electronic controller, designed to ensure precise power and torque management. The IT500E features a dual 48 V - 40 Ah lithium battery, with a nominal voltage of 51.8 V, an energy capacity of 2.1 kWh, and a 48 8P cell configuration. Continuous operating time reaches 4-4.5 hours, while the 15 A off-board charger allows for a full recharge in about 2 hours, reducing downtime. Three forward speeds are available to adapt the machine to different operating conditions and optimize consumption and productivity.

Hydrostatic transmission and hydraulic tipping

The Fast Verdini IT500E battery-powered mini dumper features a robust hydrostatic transmission with a 200 cc orbital hydraulic motor, designed to ensure smooth movements and high traction capacity. The hydraulic system includes a double gear pump with a flow rate of 4.95 + 4.95 cc/rev, maximum pressure of 180 bar, and operating pressure of 150 bar, powered by a 14 L oil tank. Hydraulic tipping of the body allows for quick unloading of soil, gravel, sand, debris, and other materials, reducing operator fatigue and increasing productivity.

High load capacity and excellent mobility

Despite its compact size, the Fast Verdini mini dumper offers a maximum load capacity of 500 kg on flat ground and 350 kg on inclines, making it suitable for the most demanding jobs. The 18 × 6 × 3.8 cm tracks, combined with the oscillating roller system, ensure uniform weight distribution and effective traction even on mud, gravel, or uneven terrain. The maximum speed of 2.5 km/h allows for controlled and safe movements within the construction site. The net weight of 395 kg ensures an excellent balance between stability and ease of transport.

Features

• Battery-powered mini dumper
• Long-life Lithium Battery
• Body Capacity 0.22 sqm
• Flat Ground Load Capacity 500 kg
• Incline Load Capacity 350 kg
• Hydrostatic Transmission
• Double Gear Pump
• Max Incline 30%
• Power 6.6 kW
• 3 Speeds
• Dumper Overhead Protection
• Control Panel
• Oscillating Roller System

Fast Verdini: Italian Brand for Construction and Road Equipment

Fast Verdini is a leading company in the construction and road equipment sector, renowned for its reliability and quality. It was one of the first Italian companies to focus on the production of machinery for compaction, cutting, and vibration, consolidating its reputation as a leading brand in the market.
