Zanon DC 500-BH Electric Start
500 kg Power Barrow
MPN: 5446058
Warranty 2 years
14 days to change your mind
Shipped on Pallet

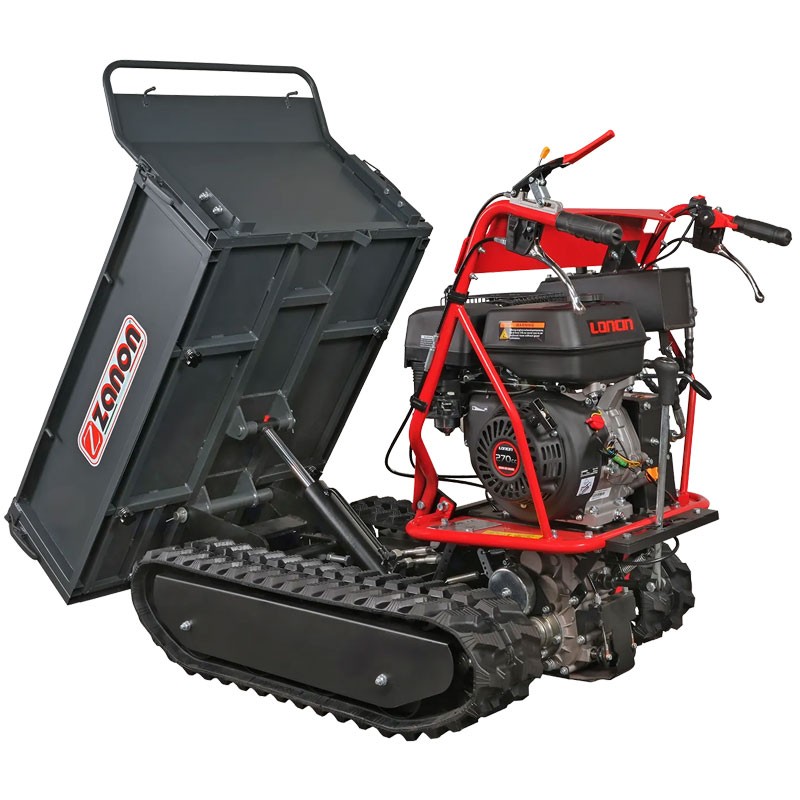

Zanon DC 500-BH Electric Start - Petrol Tracked Power Barrow with Hydraulic Tipping
The Zanon DC 500-BH electric-start tracked power barrow is a compact, powerful, and reliable machine designed for transporting materials on any type of terrain. Equipped with a 270 cc , 9 HP Loncin engine, this Zanon power barrow guarantees high performance and maximum efficiency. The hydraulically operated tipper body with extendable sides allows it to handle loads of up to 500 kg , making it ideal for agricultural, construction, and landscaping work.
The 18 cm track system ensures stability and traction even on slopes of up to 25% , while the transmission with 3 forward gears and 1 reverse offers optimal control in any situation. The metal driving handles with safety system and CE-compliant guards complete a robust and safe machine. The Zanon DC 500-BH is the perfect solution for those seeking practicality, power, and durability.
Electric start
Complies with the requirements of Directive 2000/14/EC for noise reduction.
functional specifications
270cc petrol tracked power barrow
The Zanon DC 500-BH electric start is a professional tracked power barrow designed for those who need a reliable means of transporting heavy materials over difficult terrain. Equipped with a 270 cc, 9 HP Loncin petrol engine , it guarantees high performance with low fuel consumption. The tracked drive system allows for optimal traction even on muddy or sloping surfaces, with the ability to overcome slopes of up to 25% .

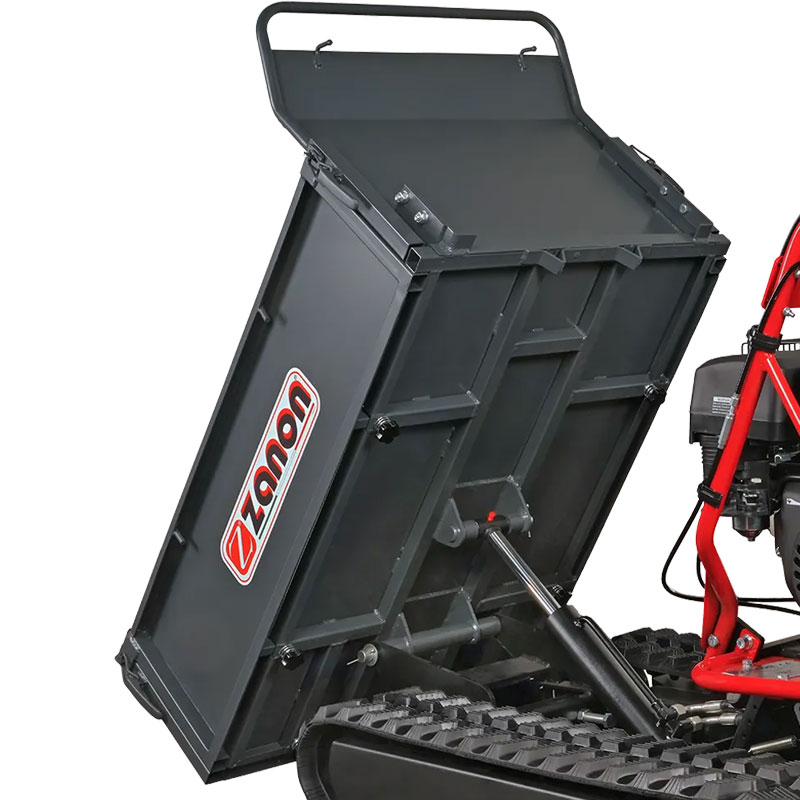

Hydraulic tipper body
One of the strengths of the electric-start DC 500-BH is its hydraulic tipping body with extendable sides, which can carry up to 500 kg of material . The body's size and robust steel structure ensure long life and high resistance to stress. The hydraulic system facilitates material unloading, reducing operator fatigue and increasing productivity.
3 forward gears and 1 reverse gear
The power barrow is equipped with 3 forward gears and 1 reverse gear (3F+1R) , offering a travel speed of 0 to 5 km/h . The metal guide handles with safety system ensure precise control of movement and protect the operator during use. All safety guards comply with CE regulations, ensuring maximum safety at work.
Optional on request
- Galvanized Dumper Box
Zanon: Professional Agricultural Machinery
ZANON products cover numerous application areas, from purely agricultural to more specialized applications. An Italian brand with dedicated support, it has always been synonymous with quality and reliability.
Characteristics

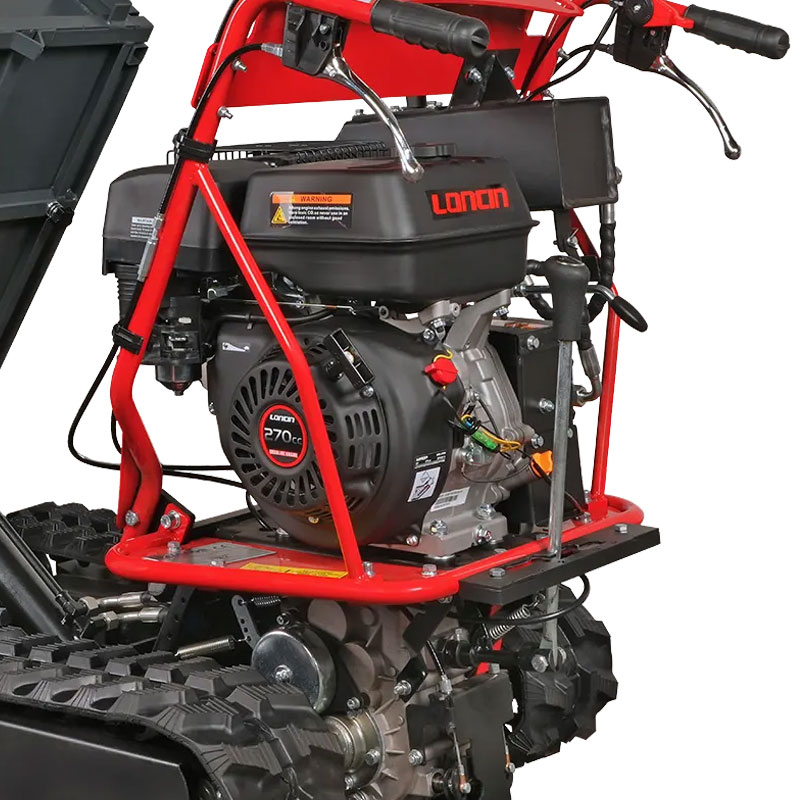

- Loncin 9 HP petrol engine
- Electric Start

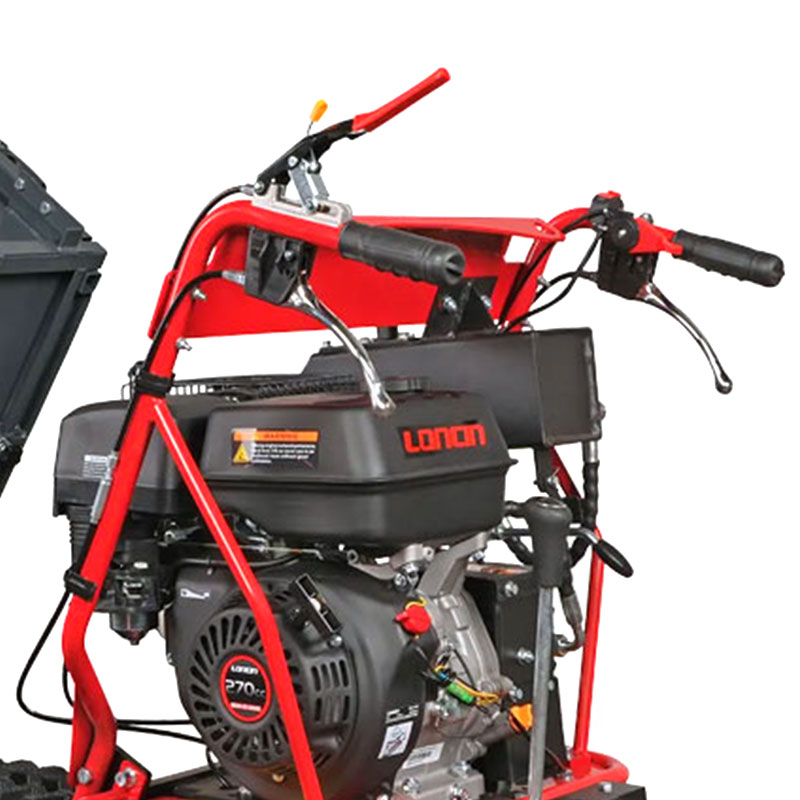

- Metal driving handles with safety system
- Tracked trolley with 3 forward and 1 reverse gears
- 18 cm track drive system
- Forward speed from 0 to 5 km/h
- Hydraulically tipping tipper body with a capacity of up to 500 kg
- Complies with Directive 2000/14/EC
Technical Data
| Code | 5446058 |
| Motor | Loncin |
| Type | 4 stroke, Petrol |
| Displacement | 270 cc |
| Power at 2000 rpm | 6.62 Kw - 9 HP |
| Start-up | Electric |
| Advancement System | Tracks |
| Track Width | 18 cm |
| Maximum slope at full load | 25° |
| Tipping the container | Hydraulic |

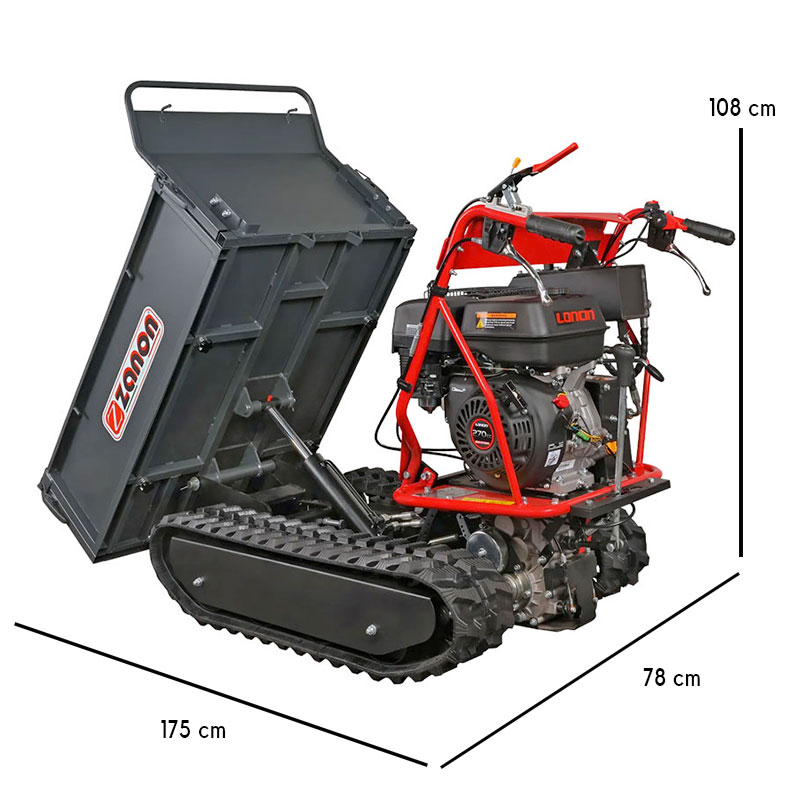

| Dimensions | 175 x 78 x 108 cm |
| Box dimensions | 104 x 62 x 32 cm |
| Max. forward speed | 5 km/h |
| Flow rate | 500 kg |
| Weight | 264 kg |
Technical Data
| Code | 5446058 |
| Motor | Loncin |
| Type | 4 stroke, Petrol |
| Displacement | 270 cc |
| Power at 2000 rpm | 6.62 Kw - 9 HP |
| Start-up | Electric |
| Advancement System | Tracks |
| Track Width | 18 cm |
| Maximum slope at full load | 25° |
| Tipping the container | Hydraulic |
| Dimensions | 175 x 78 x 108 cm |
| Box dimensions | 104 x 62 x 32 cm |
| Max. forward speed | 5 km/h |
| Flow rate | 500 kg |
| Weight | 264 kg |
