400 kg Extendable Dumper
Manual / Hydraulic
3.6 kW
163 cc - 3.6 HP
4-STROKE GASOLINE
Warranty 2
years
Shipped on Pallet

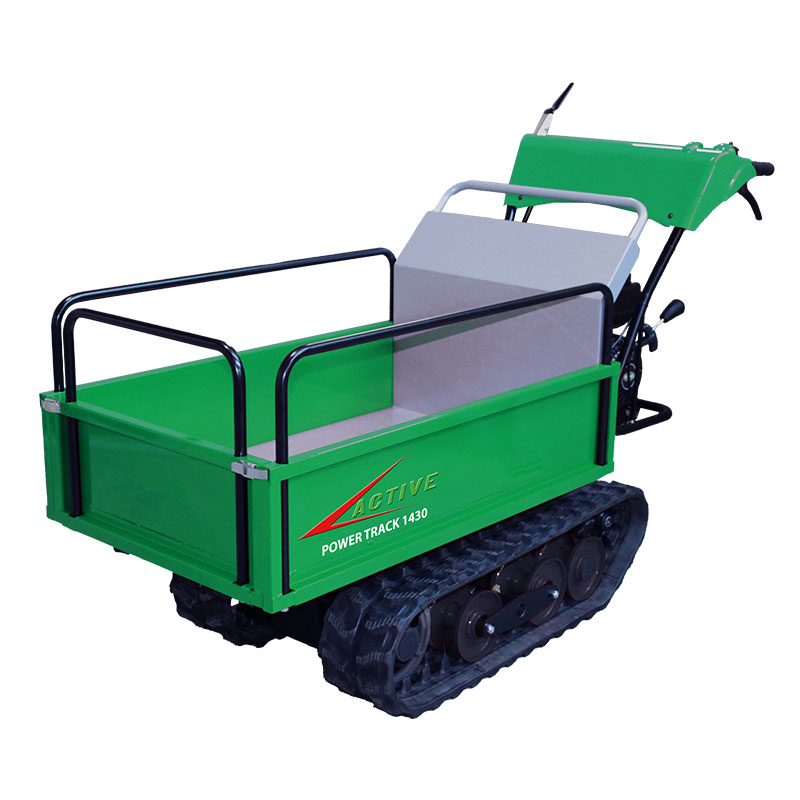

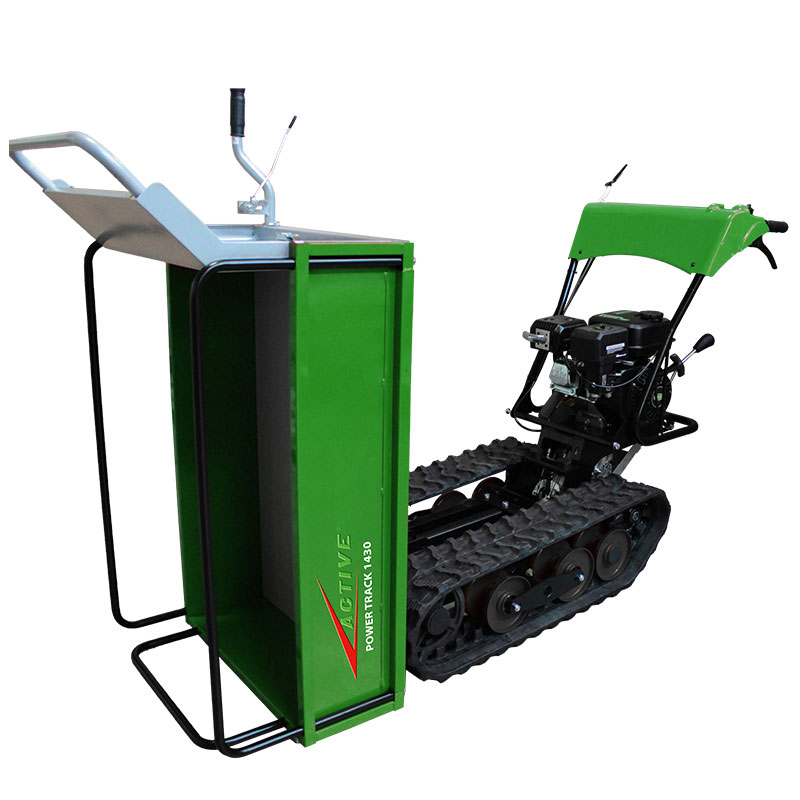

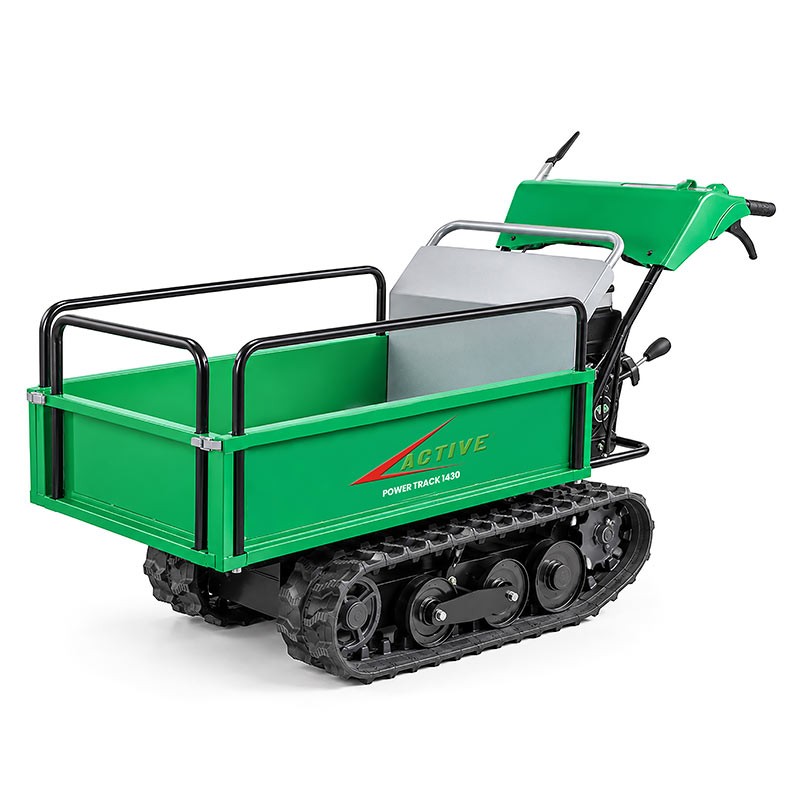

Active 1430 - 400 kg Extendable Dumper with Manual / Hydraulic Tipping
The Active 1430 extendable skip dumper is an ideal solution for those seeking a compact, robust, and versatile machine for transporting materials in construction, agricultural, or landscaping sectors. Thanks to its structure designed to adapt to different load volumes, it allows for more efficient work even in confined spaces or on difficult terrain.
Available in manual or hydraulic tipping versions, the extendable skip dumper offers high performance, reliability, and ease of use, making it an indispensable tool for professionals and operators in the sector.
Available Models
Selectable from the dropdown menu:
- Manual - code 800867 with Honda GX 160 engine
- Hydraulic - code 800868 with Honda GX 160 engine
Functional Specifications
400 kg Extendable with MANUAL tipping code 800867
The Active 1430 dumper with manual tipping code 800867 is designed for those seeking simplicity and robustness. With an extendable skip width 90-97.5 cm and width 59-84 cm, this Active 1430 dumper has an internal height of 40 cm and offers a load capacity of 400 kg. The manual tipping system allows for easy unloading of contents, maintaining full control of the operation even on uneven terrain. The gearbox with 2 forward gears and 1 reverse gear allows for smooth and responsive driving. The total weight of the machine is 185 kg, making it extremely maneuverable even in tight spaces or on slippery surfaces.
400 kg Extendable with HYDRAULIC tipping code 800868
The Active 1430 with hydraulic tipping code 800868 is the ideal choice for those seeking a more advanced tipping system. With an extendable skip width 90-97.5 cm and width 59-84 cm, this Active 1430 dumper has an internal height of 40 cm and offers a load capacity of 400 kg. This model uses the power of hydraulic tipping to speed up unloading operations, minimizing operator physical effort.
The gearbox with 2 forward gears and 1 reverse gear allows for smooth and responsive driving. The overall weight of the machine also remains around 185 kg, thus maintaining maneuverability. The compact structure (total length 173 cm, height 105.5 cm) allows for use in contexts where space is limited, such as courtyards, basements, or private gardens.
Honda GX 160 Engine
Both versions are equipped with a Honda GX160 engine with 163 cc, delivering a power of 4.8 HP (3.6 kW), ensuring good performance and reliability even in demanding conditions.
Tilting Rollers
The Active 1430 versions are equipped with tilting rollers, which compensate for any imbalances of the machine on uneven and rough terrain, thus ensuring traction efficiency, maximum stability, and above all, extreme safety even in the most demanding working conditions.
Watch the Videos
Features
- Dumper with 400 kg load capacity
- Honda GX 160 engine, 163 cc and 4.8 HP
- Weight 185 kg
- Extendable Skip
- MANUAL / HYDRAULIC tipping versions
Active: 30 years of Made in Italy excellence
For 30 years, Active has been the Made in Italy company specializing in the production of engines and equipment for gardening and agriculture, such as brush cutters, chainsaws, and lawnmowers, offering excellent quality products. Continuous research and development of new technologies allow this 100% Italian brand to stand out among the leaders in the sector, combining innovation, sustainability, and superior performance.
Technical Data
| Code | 800867 | 800868 |
| Type | Extendable | Extendable |
| Tipping | Manual | Hydraulic |
| Engine | Honda GX160 | Honda GX160 |
| Type | 4-stroke, Gasoline | 4-stroke, Gasoline |
| Displacement | 163 cc | 163 cc |
| Power at 2000 rpm | 4.8 Kw - 3.6 HP | 4.8 Kw - 3.6 HP |
| Transmission | 2 FWD + 1 REV | 2 FWD + 1 REV |
| Tracks | YES | YES |
| Skip Dimensions | 90 (97.5) x 59 (84) x 40 cm | 90 (97.5) x 59 (84) x 40 cm |
| Dimensions | 173 x 105.5 x 63 cm | 173 x 105.5 x 63 cm |
| Capacity | 400 Kg | 400 Kg |
| Weight | 185 Kg | 185 Kg |
