Fast Verdini RAV70
Vertical Compactor
Fusion Plate 28 x 32 cm

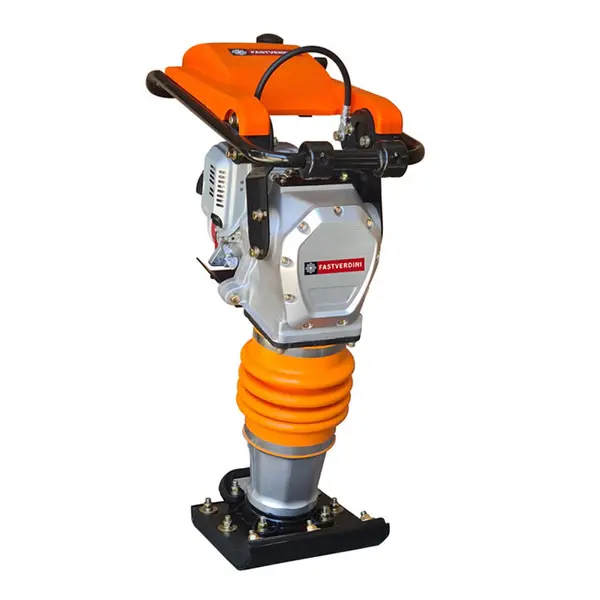

Fast Verdini RAV70 - Compactor with Honda Engine Operating Pressure 70 kg

The Fast Verdini RAV70 compactor is a soil compaction machine that uses the vibration phenomenon. With a vertical design, this compactor can reach the most difficult corners, exerting a maximum pressure of 70 kg .

Equipped with a Honda GXR120 3.1 HP (2.3 kW) twin-cylinder 4-stroke engine , this rammer delivers reliable, efficient performance even in demanding conditions, allowing operators to get the job done with ease and precision.

Ideal for soils with a high clay content, this machine ensures concentrated and direct compaction , managing to reach narrow spaces that would otherwise be inaccessible for a compactor plate.

Technical Specifications

Fast Verdini's RAV70 features a powerful compaction force of 18 kN , ensuring efficient performance in consolidating the underlying material.

The drum has a width of 28 cm and a length of 32 cm , with a stroke height of 54 mm and 720 strokes per minute . These characteristics allow the compactor to reach a compaction depth of up to 650 mm , maintaining an advancement speed of 12 meters per minute and an overall output of 160/180 m²/h .

Characteristics

• Working width 280 mm
• Working length 320 mm
• Ride height 54mm
• Compaction force kN 18
• Self-recoil starter
• Tank capacity 0.77 L
• Transport trolley
• Lifting handle
• Steel base

Fast Verdini: Italian brand for Construction and Road Equipment

Fast Verdini is a leading company in the construction and road equipment sector, renowned for its reliability and quality. It was one of the first Italian companies to dedicate itself to the production of compaction, cutting and vibration machinery, consolidating its reputation as a leading brand in the market .
