Fast Verdini AR80
Reversible Compactor
Fusion Plate 45 x 90 cm
9.3÷11.7 HP - Petrol/Diesel
40 KN - 20 m/min
Cast base 65 x 90 cm
Warranty 2 years
14 days to change your mind
Shipped on Pallet

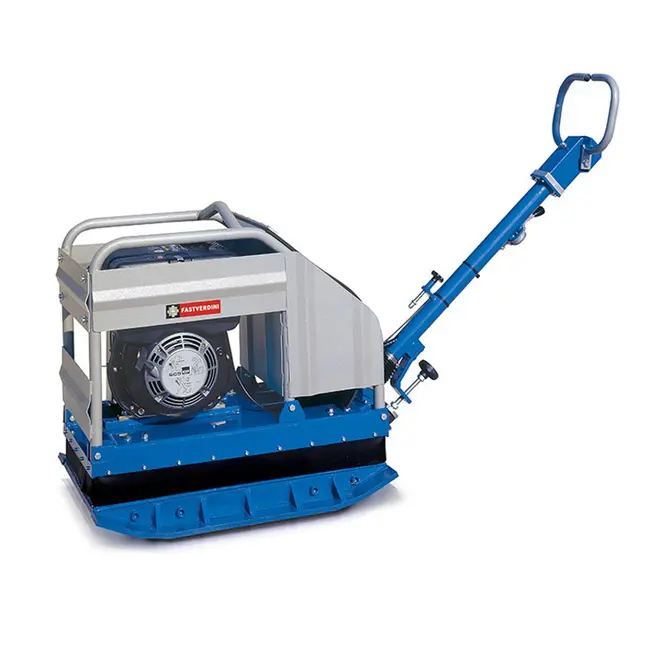

Fast Verdini AR80 - Reversible Compactor with Forward/Reverse Gear and Sheet Metal Plate
Fast Verdini AR80 is a hydraulically reversible compactor equipped with forward and reverse gears available in both electric start and self-recoil start versions. Equipped with a 45 x 90 cm plate that can be equipped with extensions on request for a total of 63 x 90 cm.
Ideal for compacting materials such as sand, gravel, asphalt or soil, it has a centrifugal force of 40 kN and generates a significant compaction force, thanks also to a vibration frequency of 80 Hz . This combination of features allows the underlying material to be effectively consolidated.
This soil vibrating plate is powered by Diesel or Petrol depending on the engine you choose to equip it with.
Available Models
The following Fast Verdini AR63 models are available from the drop-down menu:
- Hatz 1B40 Diesel Engine (10.2 HP)
- Yanmar L100 Diesel Engine (9.3 HP)
- Honda GX390 Petrol Engine (11.7 HP)
All three models can be equipped with a choice of electric start or recoil start and/or plate extenders .
Technical Specifications
Fast Verdini AR80 offers a centrifugal force of 40 kN, ensuring high efficiency in consolidating the underlying material. The vibration frequency of 80 Hz ensures uniform compaction, making this compactor perfect for a variety of applications, from roadworks to paving.
The metal plate has a working width of 45 x 90 cm minimum extendable with extenders up to 65 x 90 cm , allowing you to cover a large surface with each pass. With a working speed of 20 m/min , the compactor allows you to complete jobs quickly and efficiently. In addition, it can penetrate up to 70 cm .
The Fast Verdini AR80 has a 3-liter fuel tank ensuring good autonomy.
Characteristics
- Working width (without / with extenders) 450 / 650 mm
- Working length 90 mm
- Centrifugal force KN 40
- Frequency Hz 80
- Working speed m/min 20
- Electric Start / Self-Recoil
- Tank capacity 3 L
- Hatz, Yanmar and Honda engines available
- Reversible direction
- Steel base
- Accelerator on handle
- Folding handlebar
Fast Verdini: Italian brand for Construction and Road Equipment
Fast Verdini is a leading company in the construction and road equipment sector, renowned for its reliability and quality. It was one of the first Italian companies to dedicate itself to the production of compaction, cutting and vibration machinery, consolidating its reputation as a leading brand in the market .
Technical Data
| Model | Hatz 1B40 | Yanmar L100 | Honda GX390 |
| Power Supply | Diesel | Diesel | Gas |
| Power | 10.2 HP | 9.3 HP | 11.7 HP |
| Start-up | Electric / Self-winding | Electric / Self-winding | Electric / Self-winding |
| Fusion Base | 45 x 90 cm | 45 x 90 cm | 45 x 90 cm |
| Cast Base with Extender | 63 x 90 cm | 63 x 90 cm | 63 x 90 cm |
| Centrifugal force | 40 KN | 40 KN | 40 KN |
| Frequency | 80Hz | 80Hz | 80Hz |
| Working speed | 20 m/min | 20 m/min | 20 m/min |
| Tank Capacity | 3 L | 3 L | 3 L |
| Weight | 375 / 345 kg | 375 / 350 kg | 345 kg |
| Weight Spreaders | 31 kg | 31 kg | 31 kg |
Technical Data
| Model | Hatz 1B40 | Yanmar L100 | Honda GX390 |
| Power Supply | Diesel | Diesel | Gas |
| Power | 10.2 HP | 9.3 HP | 11.7 HP |
| Start-up | Electric / Self-winding | Electric / Self-winding | Electric / Self-winding |
| Fusion Base | 45 x 90 cm | 45 x 90 cm | 45 x 90 cm |
| Cast Base with Extender | 63 x 90 cm | 63 x 90 cm | 63 x 90 cm |
| Centrifugal force | 40 KN | 40 KN | 40 KN |
| Frequency | 80Hz | 80Hz | 80Hz |
| Working speed | 20 m/min | 20 m/min | 20 m/min |
| Tank Capacity | 3 L | 3 L | 3 L |
| Weight | 375 / 345 kg | 375 / 350 kg | 345 kg |
| Weight Spreaders | 31 kg | 31 kg | 31 kg |
