Telwin Technology Plasma 41 XT 230 V
Inverter Plasma Cutting cod.816146

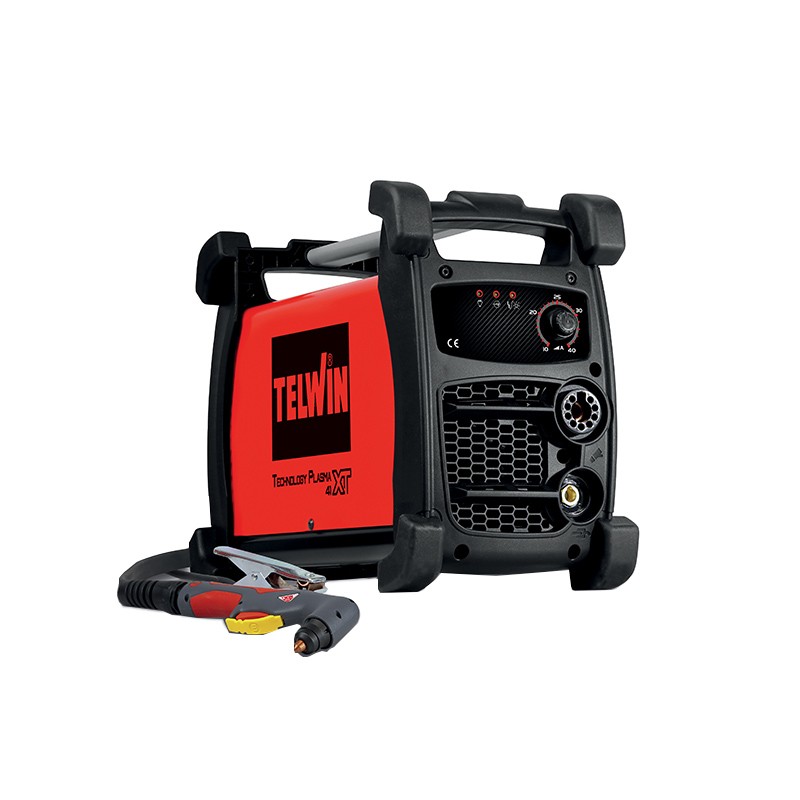

Telwin Technology Plasma 41 XT 230V - Inverter Plasma Cutting cod. 816146

Telwin Technology Plasma 41 XT 230V, from the Telwin Extreme series , is a plasma cutting inverter system with compressed air operation , with contact ignition of the pilot arc. This welding machine is a Made In Italy product with high construction quality , designed for professional use .

It allows fast cutting without deformation of all conductive materials such as steel , stainless steel , galvanized steel , aluminum , copper , brass and others.

The robust structure of Telwin Technology Plasma 41 XT 230V makes it resistant to impacts , despite its reduced weight and dimensions. In line with the philosophy of Extreme machinery, Telwin Technology Plasma 41 XT is also designed for users who require maximum resistance in more extreme uses , such as in the shipbuilding sector, where handling and ease of use become essential. Here are the exclusive anti-shock bumpers , which make the structure of Technology Plasma 41 XT 230V resistant and durable over time .

Telwin Technology Plasma 41 XT 230V allows fast cutting with a thickness of up to 15 mm , with a compressed air flow rate of 100 L/min and a pressure of 4-5 bar .

The Telwin plasma cutting welder has dimensions of 48 x 19 x 30 cm , for a weight of 9 kg .

Technical specifications

Telwin Technology Plasma 41 XT 230 V has a single-phase mains voltage of 230V , with a current regulation range of 10-40 A , with a no-load voltage of 313V . The maximum absorbed current is 25 A , while the maximum absorbed power is of 4 kW .

The efficiency of this plasma cutter is 85% , while the power factor cosphi is 0.7 .

Control Specifications

• Signaling of voltage presence in torch
• Automatic torch cooling
• Consumables change report
• Metal cage protecting pressure gauge
• Thermostatic protection of overvoltage, undervoltage, overcurrent and lack of air
• Air pressure display

Below are the controls on the machine.

Areas of use

• Maintenance
• Body
• Industry
• Shipbuilding

Characteristics

• Extreme Series Plasma Cutting Inverter System
• Sturdy structure and high quality construction materials
• Made In Italy
• Professional quality product
• Fast cutting on different materials
• Machinery protection systems
• Torch protection, included and original Telwin

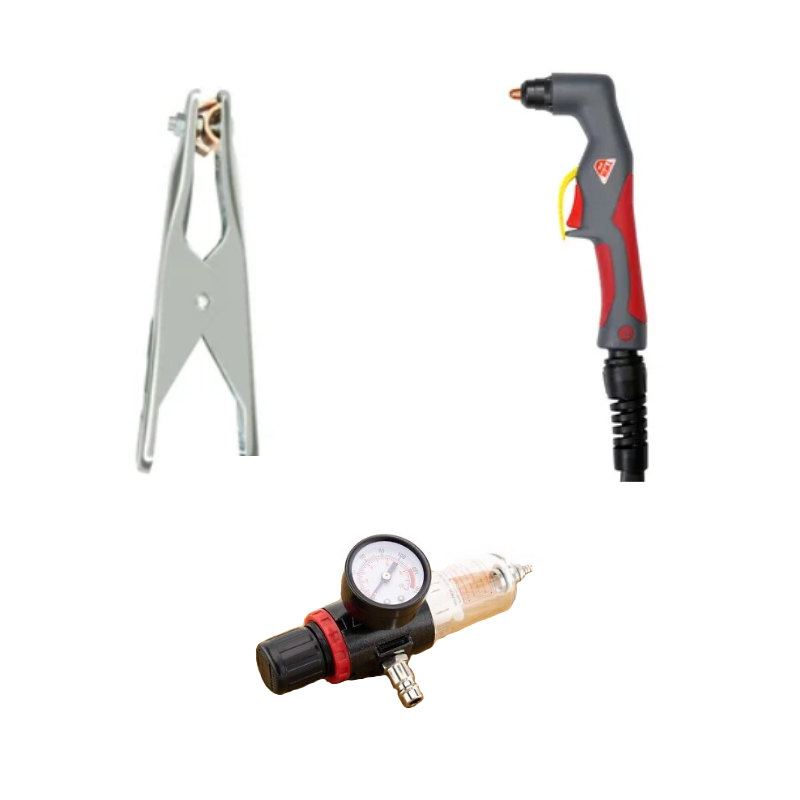

Standard Equipment

• PH plasma torch 4 m - cod. 804155
• Air pressure reducer - code 125237
• Cable TW05V-A 1X016 L=03,00M Atlas 25MMQ
• Toledo 300 ground clamp
