FVK4-E
Electric Brush for Cleaning Photovoltaic Panels
Brushless 150 W

FVK4-E - Electric Brush for Cleaning Photovoltaic Systems

The FVK4-E brushless brush represents a technologically advanced solution for cleaning photovoltaic systems, designed to offer high performance while fully respecting delicate surfaces.

Equipped with a lightweight and durable aluminum frame and a nylon brush with a diameter of 150 mm and a length of 60 cm , this machine is perfect for professional washing operations on both ground-mounted photovoltaic systems and roofs.

This rod is telescopic

Functional specifications

150W Brushless Motor

The 150W brushless motor ensures efficient and silent operation of the FVK4-E, powered by a 24V 26Ah battery , with a battery life of 4-5 hours. The FKV4-E motorized brush can operate up to a maximum pressure of 30 bar and consumes 22 L/min , working with liquids up to 40°C. Operating consumption is approximately 2 bar for 6/7 L/min .

Aluminum frame and nylon brush

The FVK4-E brush is built with an aluminum frame , a material that combines corrosion resistance and lightness, ideal for use on elevated surfaces such as photovoltaic panels.

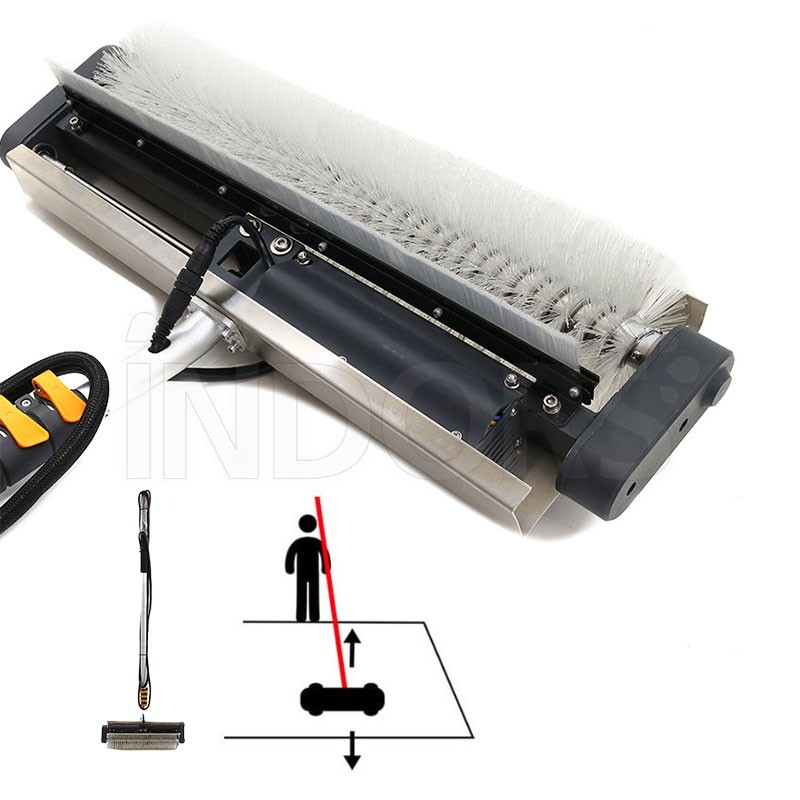

Below are some details of the back of the K Solara FKV4-E.

The 150 mm diameter and 60 cm long nylon brush ensures effective yet gentle action, preventing scratches or damage to the modules.

Flexible operating modes

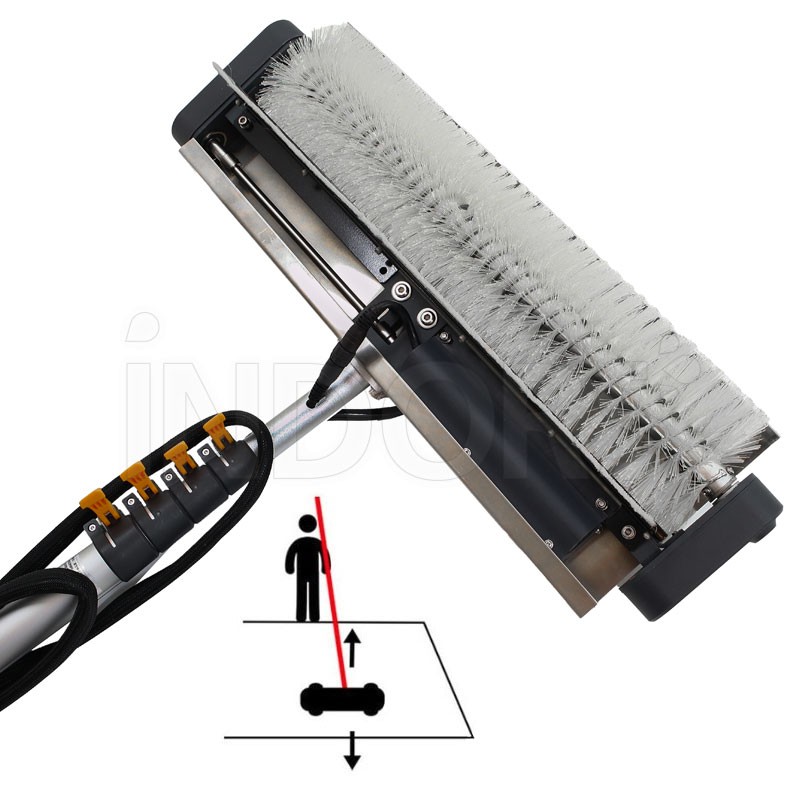

• Roof washing : the operator controls the movement via the water hose. He is positioned at the front in the "chasing" method or at the side in the "gravity" method.
• Floor scrubbing: two operators are involved. One drives the machine from the front, while the other assists from behind to ensure proper movement.

Characteristics

• Motorized brush for photovoltaic cleaning
• 150W Brushless Motor
• Aluminum frame and nylon brush
• Flexible operating modes
• High technical quality
• Silent operation

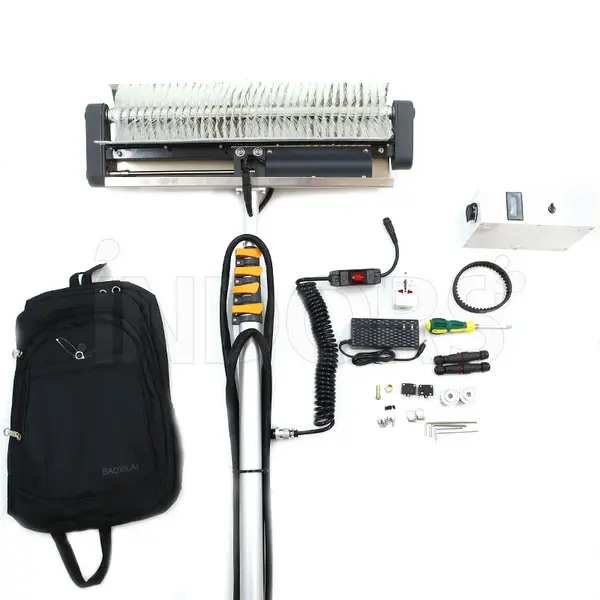

Standard Equipment

• Brush with rod
• Backpack
• Drums
• Components
