Volpi Olytech Dualcomb 13
Battery-Powered Telescopic Olive Harvester Model 355XL

Volpi Olytech Dualcomb 13 - Battery-Powered Telescopic Olive Harvester Model 355XL

The Volpi Olytech Dualcomb 13 battery-powered telescopic olive harvester in the 355XL version is a Battery-Powered Telescopic Olive Harvester for mechanized olive collection. This 12V olive shaker features dual counter-rotating rake technology and a 13-flexible-prong comb design, ensuring an extremely effective combing action on branches, reducing operational effort and preserving the integrity of the plant.

Powered by a high-performance, low-consumption 12V DC motor, this professional Volpi olive shaker has an adjustable telescopic rod from 2200 mm to 3500 mm. The working area of 25 x 30 cm ensures maximum productivity in the field, making it the ideal choice for olive growers and agricultural operators.

Technical Specifications

The Volpi Olytech Dualcomb 13 olive harvester features a 12V DC electric motor with very low energy consumption, designed for direct power supply from a 12V battery with a recommended capacity of 70-80 Ah (not included), connectable via the supplied 15-meter cable equipped with clamps and a quick connector. The Volpi Olytech Dualcomb 355XL has a highly resistant helical gear transmission, a construction solution that eliminates the need for complex maintenance while supporting prolonged working periods.

The head operates at a constant speed of 950 RPM with a working area of 25x30 cm. The combined action of the 13 highly elastic techno-polymer prongs and electronic effort control allows for an hourly productivity between 80 and 100 kg/hour. The structure is completed by an ergonomic handle with an integrated switch and a telescopic extension rod that extends the overall length from a minimum of 220 cm to a maximum of 350 cm.

Functional Specifications

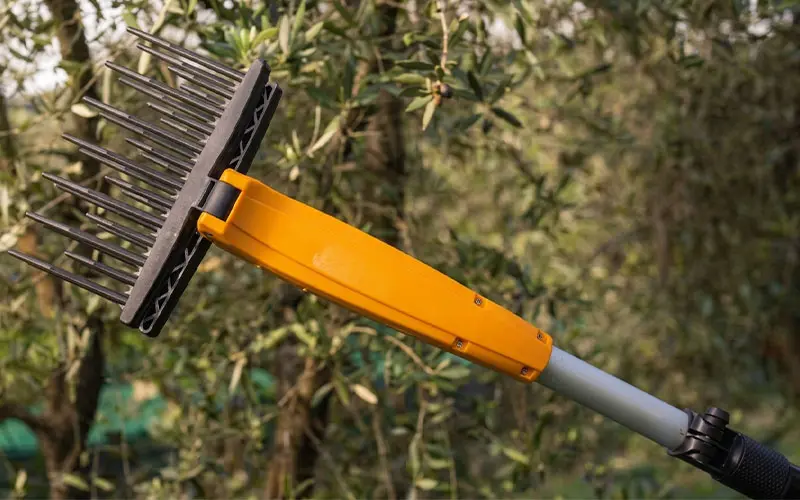

Counter-Rotating Rake Collection System

Operation is based on the alternating movement of two counter-rotating rakes equipped with 13 flexible techno-polymer prongs. This mechanism easily penetrates dense or unpruned canopies, detaching the fruit through a simulated natural combing action without damaging the shoots or bark of the branches. The quick replacement of individual prongs minimizes downtime during the harvesting season.

Adjustable Telescopic Rod for Maximum Operational Flexibility

The extension from 2.2 to 3.5 meters allows reaching the highest branches of the olive grove without the need for ladders or scaffolding. The rod locking and sliding mechanism ensures the necessary structural rigidity to distribute the weight of the harvester evenly, improving overall balance and reducing fatigue.

Intelligent Effort Management and 12V Motor Protection

This Volpi 355XL Olive Shaker features an integrated circuit for motor effort control that analyzes the resistance encountered by the rakes among the branches. In the presence of abnormal friction or thick branches, the control unit modulates torque delivery to prevent overheating of electrical components, while optimizing the autonomy of the connected battery and ensuring a constant rate of 950 beats per minute.

Maintenance-Free Helical Gear Transmission

The helical gear transmission transmits power from the motor to the harvester head, minimizing vibration and wear. The hermetic sealing of the gearbox prevents the ingress of dust, leaves, and pruning residues, eliminating the need for frequent greasing or periodic calibrations.

Watch the video

Features

• OLIVE HARVESTER
• Length from 2.20 to 3.50 m
• Power Supply: 12 V Battery
• Productivity 80-100 kg/hour
• Speed: 950 RPM
• Alternating movement with counter-rotating rakes
• Weight 2.80 kg

Volpi Olytech

Olytech is the Volpi brand range designed for olive harvesting. The Volpi Olytech olive harvesters feature an extremely innovative design that has minimized bulk and weight; the angled harvesting head facilitates the operator's posture and the machine's positioning among the branches. The wide and powerful alternating movement on a horizontal plane ensures maximum yield in any harvesting situation. All Olytech models can be used with both top-down movements (branch combing) and by inserting and extracting the harvesting head within the plant with an extremely effective combined combing and whipping action.

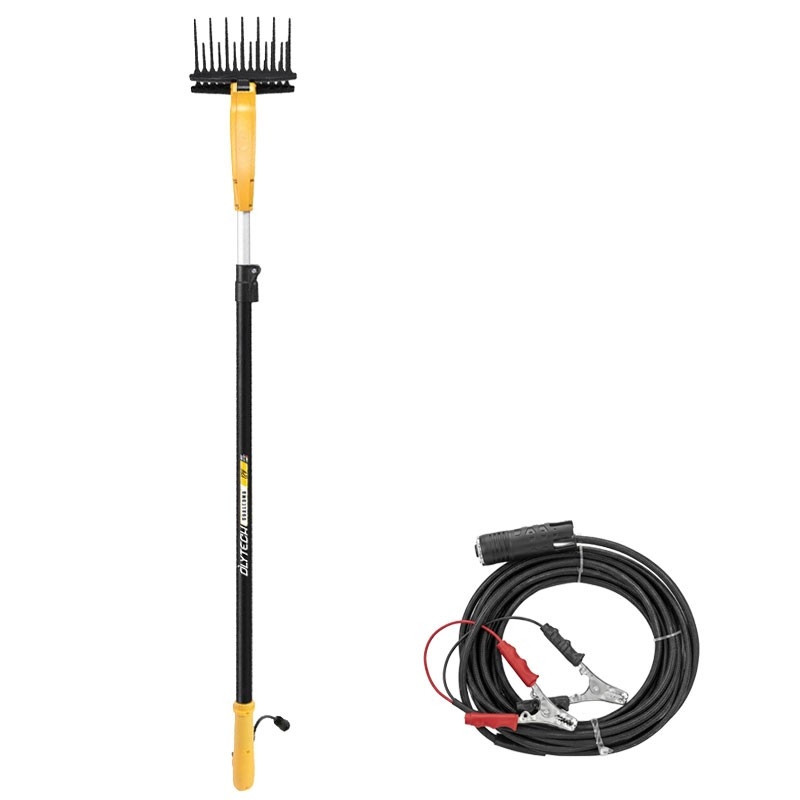

Standard Equipment

• 15-meter power cable
• Clamps and Connectors
