Pramac PMi 6500
6.5 kW Inverter Generator

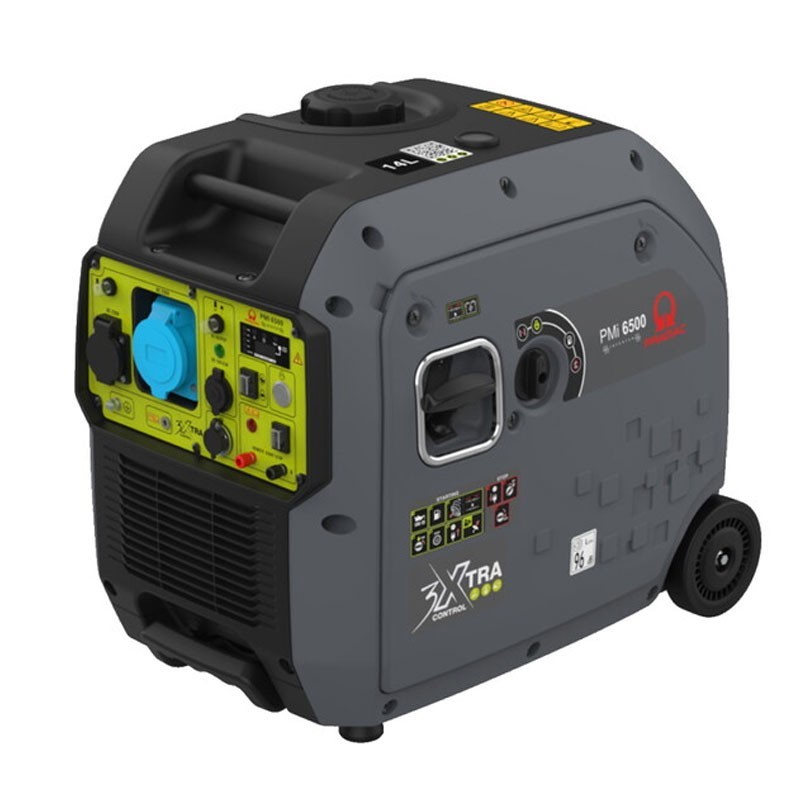

Pramac PMi 6500 - 6.5 kW Inverter Gasoline Generator

The Pramac PMi 6500 inverter generator is ideal for those seeking stable power, quiet operation, and low fuel consumption. Thanks to inverter technology, it guarantees constant voltage, perfect even for sensitive electronic devices. The 4-stroke gasoline OHV engine with Stage V emissions offers high performance and long durability.

Equipped with electric and recoil start, Economy mode to reduce consumption, and oil protection, it ensures efficiency and safety in all conditions. With a maximum power of 6500 W, up to 6.6 hours of runtime, and a reduced noise level of 73 dBA, the PMi 6500 is ideal for construction sites, events, or emergency home use.

Functional Specifications

Stable Power and Quiet Operation

The Pramac PMi 6500 is the perfect gasoline inverter generator for those who want stable power and reduced consumption. Belonging to Pramac's PMi series, this model is designed to ensure high performance, low noise levels, and maximum energy efficiency, suitable for both professional and domestic use.

Stable and Safe Inverter Technology

Thanks to the inverter system, the Pramac PMi 6500 offers constant voltage (230 V – 50 Hz), ideal for powering even the most sensitive electronic equipment. The electronic regulator automatically adjusts the engine speed to the required load, reducing fuel consumption and mechanical wear. With a rated power of 6 kW and a maximum of 6.5 kW, it guarantees continuous and reliable power in any situation.

Stage V OHV Engine

The Pramac gasoline OHV engine with Stage V emissions complies with the latest environmental regulations. It features electric and manual start, automatic oil protection, and an Economy mode that optimizes rotation speed to reduce consumption (only 1.2 L/h at 50% load) and extend runtime up to 6.6 h.

Complete Control Panel

The panel includes an electric start button, intelligent throttle, ATS connector, 12V/6A output, Schuko 16A and CEE 32A sockets, as well as protections against overcurrent, overheating, and low oil level. With a noise level of only 73 dBA at 7 meters, the PMi 6500 is among the quietest generators in its class.

Compact and Easy-to-Transport Structure

Weighing only 50.5 kg and with compact dimensions, the Pramac PMi 6500 is easily transportable thanks to the integrated wheel kit and comfortable handle. The fuel gauge allows for immediate checking of the gasoline level, making its use even more practical.

Control Panel

Controls:

• Start Button
• Intelligent Throttle with Economy Mode
• ATS Connector / 2-Wire Start / Remote Control

Instrumentation:

• Voltage, Frequency, Runtime
• Oil Alarm, Output Power, Fuel Level Indicator
• Support for 12V Battery Maintainer

Protections:

• Overcurrent
• Overspeed
• High Temperature
• AC Thermal Breaker
• DC Circuit Breaker

Sockets:

• Schuko 230 V 16 A IP 44
• 2P+T CEE 230 V 32 A IP 44

Features

• Generator with max power 6.5 kW
• Stable voltage inverter technology
• Stage V gasoline OHV engine
• Reduced consumption with Economy mode
• ATS connector
• Lightweight and compact
• Integrated wheel kit for easy transport
• Fuel gauge
• Automatic shutdown for low oil level

How to Choose a Portable Generator

After describing the features of the Pramac PMi1000 portable generator, we want to provide you with some useful guidance for choosing the product that best suits your needs. First, let's focus on the following 3 points:

• Product Usage: whether the generator is needed for occasional emergency use, long-term use, or limited-time use;
• Voltage Type: to consider if you need a generator compatible with domestic power (single-phase) or an industrial three-phase device;
• Power Quantity: to assess the need for energy support

Do not hesitate to contact us for any doubts or need for further specifications!
