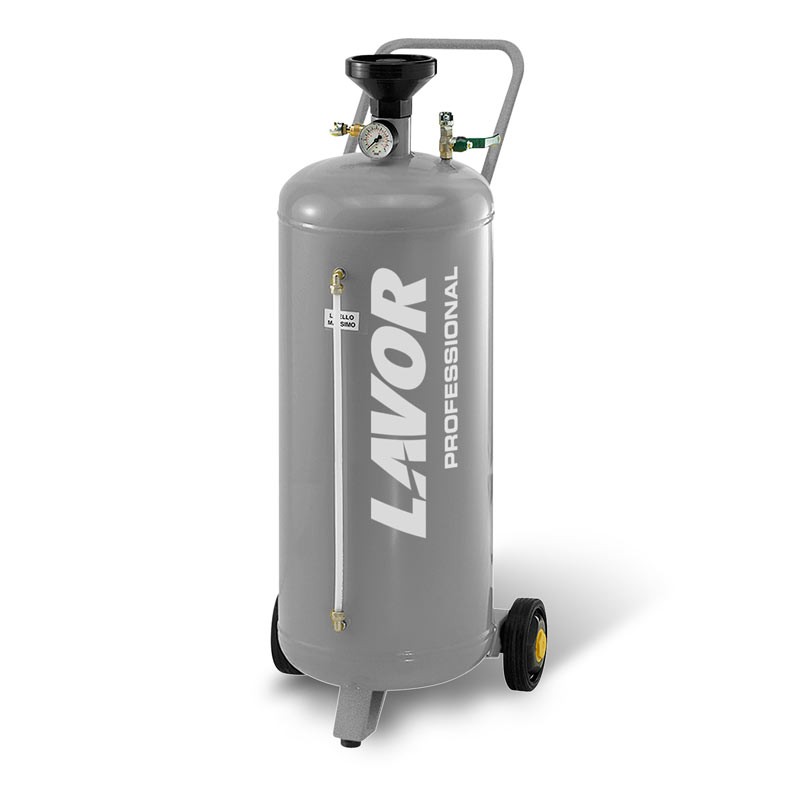

Lavor Spray NV - Professional Nebulizer Tank
Lavor Spray is a professional pneumatic nebulizer designed for dispensing detergents and liquid solutions in a professional setting. Available with a 24 L or 50 L tank, it operates at a working pressure of 6 bar and reaches a maximum pressure of 8 bar, with an integrated safety valve.
The painted steel container, the pressure gauge, the manual pressure regulator, and the complete set of lance, nozzle, and flexible hose make it a practical solution for professional nebulization tasks.
Available Models
- Spray NV24 code 41002-00007 - 24 L capacity
- Spray NV50 code 41002-00008 - 50 L capacity
Functional Specifications
Professional Pneumatic Nebulizer
The Lavor Spray pneumatic nebulizer uses compressed air refill to allow uniform distribution of detergent on the surfaces to be treated.
6 Bar Working Pressure
The 6 bar working pressure ensures adequate operating conditions for professional nebulization of detergent solutions.
Manual Pressure Regulator
The manual pressure regulator allows managing the working pressure according to the application.
Pressure Gauge
The pressure indicator allows visual monitoring of the pressure level in the container during use.
8 Bar Safety Valve
The safety valve activates upon reaching the maximum pressure of 8 bar, contributing to safety during use.
Detergent Level Indicator
The detergent level indicator allows quick checking of the amount of product available in the container.
Pneumatic Refill
The air intake connection with integrated tap allows for practical and controlled pneumatic refilling of the tank.
Painted Steel Container
The painted steel tank offers a robust structure suitable for professional use.
24 or 50 Liter Tank
Available with a 24 L or 50 L container, it allows choosing the capacity best suited to operational needs and frequency of use.
Complete Equipment
The professional nebulizer is supplied complete with lance, nozzle, and flexible hose, to be immediately operational.
Features
- Professional pneumatic nebulizer
- 6 bar working pressure
- 8 bar maximum pressure
- 24 L or 50 L tank
- Painted steel container
- Pneumatic refill
- Manual pressure regulator
- Pressure gauge
- Integrated safety valve
- Detergent level indicator
- Air intake connection with integrated tap
- Lance, nozzle, and flexible hose included
- Sealed cap
Standard Equipment
- Lance
- Nozzle
- Flexible hose
Technical Data
| Model | Spray NV24 | Spray NV50 |
| Working Pressure | 6 bar | 6 bar |
| Max Pressure / Safety Valve | 8 bar | 8 bar |
| Pressure Indicator | Pressure Gauge | Pressure Gauge |
| Liquid Level Indicator | External Column | External Column |
| Refill Type | Continuous Pneumatic | Continuous Pneumatic |
| Pressure Regulator | Manual | Manual |
| Gun Inlet Connection | 1/4'' G-F | 1/4'' G-F |
| Hose Type | Spiral Rilsan | Spiral Rilsan |
| Hose/Lance Length | 10 m / 600 mm | 10 m / 900 mm |
| Dimensions | 28 x 32 x 75 cm | 45 x 42 x 100 cm |
| Weight | 15 kg | 25 kg |
