Fly Mini 5
Sloped or Flat Surface Brush

Fly Mini 5 - Sloped or Flat Surface Brush

Fly Mini 5 is the ideal brush for washing photovoltaic systems, mono/polycrystalline or thin-film, on slopes or flat surfaces. The brush ensures greater efficiency and guarantees constant, high-quality cleaning.

This Fly Mini 5 brush already comes with a power supply and a 6 m pole.
Battery Kit and other optional accessories, to be purchased separately upon request.

The maintenance and cleaning of photovoltaic systems are fundamental aspects for keeping the system's efficiency always at its best; therefore, it is advisable to equip yourself with adequate tools to perform cleaning efficiently and safely.

Fly Mini 5 complies with all current safety regulations for operator protection.

Technical Specifications

Fly Mini 5 is a 500 mm brush designed for cleaning photovoltaic systems, the ideal solution for small sloped or flat surfaces.

The motor has an average consumption of 1.5 A at 24 Vdc, the required water pressure is 2.0-2.5 bar, and the average water consumption is 2 L/min.

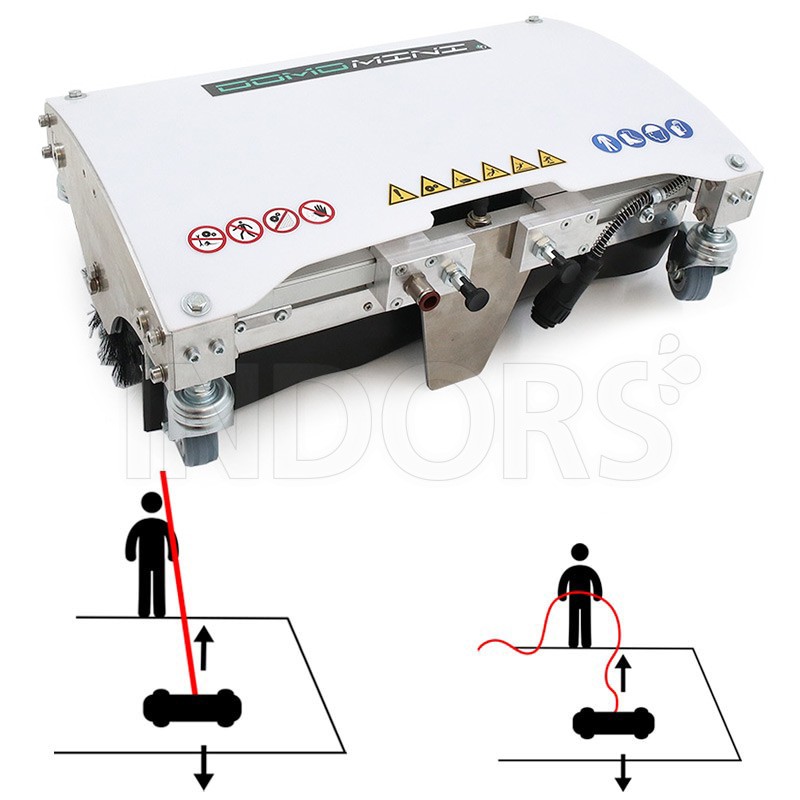

This brush can be used with a pole or guainaflex on slopes.

MATERIALS USED

The brush is made of particularly strong and lightweight STAINLESS STEEL and is coated with UV-resistant PVC material, making it extremely easy to handle even for non-professional operators.

WAVY DESIGN

Fly Mini 5 offers particularly simple and versatile maneuverability, featuring a special wavy nylon anti-scratch sector design, which retains water without causing splashes outside the cleaning area.

YIELD 5% TO 20% HIGHER COMPARED TO DIRTY PANELS

Over time, dust, pollen, droppings, and smog residues accumulate, and rain is not enough to remove them.

To maintain a considerably higher percentage yield compared to that obtained from dirty panels, effective and regular cleaning with the appropriate brushes must be carried out.

REDUCTION OF MAINTENANCE COSTS

The Fly Mini 5 brush allows for thorough cleaning of photovoltaic systems, enabling optimal preservation in the long term. The brush performs a deep clean without damaging the surface.

PRACTICALITY AND ECONOMY

The research and development of this Fly Mini 5 brush have eliminated the need for high-pressure water, a saving that brings a dual benefit related to reduced panel wear and lower cleaning costs.

FOR ALL SMALL SURFACES

This brush is very maneuverable and high-performing as it is equipped with swivel wheels, also usable with fixed wheels. The motorized brush is equipped with a reversing system covering a surface area of 500 mm.

USE

Using the Fly Mini 5 brush is simple; just connect the hose to a standard domestic water tap.

The brush is equipped with an electronically protected motor, with no external belts or gears, therefore it is maintenance-free in the transmission.

Photovoltaic panel washing brushes do not require high-pressure water; they just need to be connected to a normal domestic tap.

To achieve optimal cleaning of the photovoltaic field, it is still recommended to use pure or demineralized water through reverse osmosis or resin treatments.

BEFORE/AFTER EXAMPLES

Watch the videos

Features

• Brush size 500 mm
• Average motor consumption 1.5 A
• Operates at 24 V
• Machine weight 8 kg
• Required pressure 2.0-2.5 bar
• Average water consumption 2 L/min

Standard Equipment

• 6 m pole
• Pouch with power supply

Optional Equipment on Request

• 9 m telescopic pole kit
• 10 m guainaflex kit with drawbar
• 15 m guainaflex kit with drawbar
• 20 m guainaflex kit with drawbar
• Kit of 2 swivel wheels
• Pouch kit with lithium battery 6/7 A/h - 24 Vdc
• Pouch kit with power supply 230 Vac - 24 Vdc – 5A
