100 c Panel Cleaning Brush
Gravity Washing with 10-meter Cable

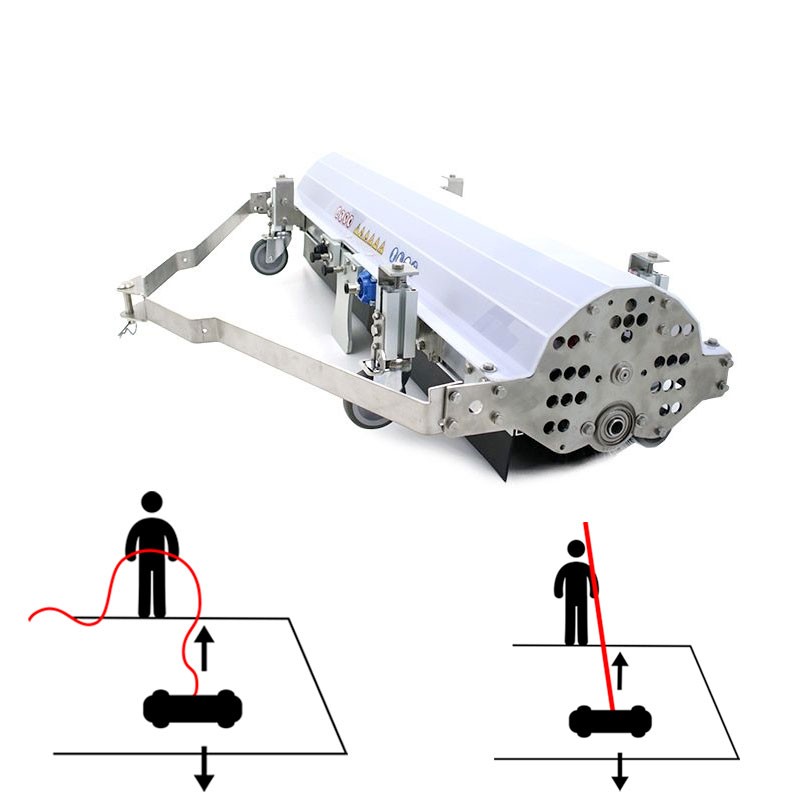

Fly MIDI 10 PRO - 1000 mm Professional Brush

Fly MIDI 10 PRO is a motorized brush designed for the deep and thorough cleaning of medium and large photovoltaic panel systems. Ideal for cleaning panels that cannot be reached with telescopic poles. Cleaning photovoltaic panels is essential to ensure optimal performance .

Functional specifications

MOTORIZED BRUSH FOR CLEANING ON FLAT OR SURFACES

Fly MIDI 10 PRO is useful for cleaning on slopes or flat surfaces , this motorised brush can be applied to SHEDs via a TGX trolley .

POWER CABLE AND HOSE INTEGRATED WITH SHEATH

Thanks to a special cord ( sheath ), in which the power cable and water hose are integrated, the Fly MIDI PRO 10 is the ideal machine for gravity cleaning of aquifers .

2 24V GEAR MOTORS

The basic Fly MIDI 10 PRO machine has 2 24 Vdc gearmotors , the H20 pressure is between 2÷2.5 bar with an average consumption of 4 L/min .

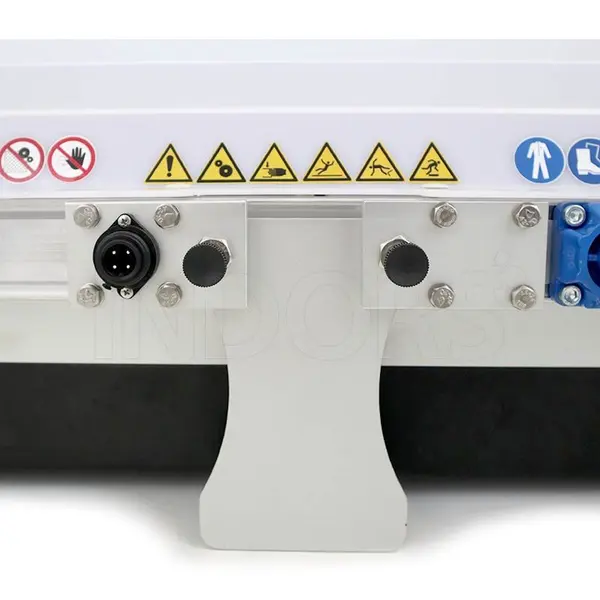

BRUSH HOLDER

BRUSH ADJUSTMENTS

How to use

This 1000 mm brush can be used with a pole on a flat surface , with a flex sheath on a slope , with a TGX trolley on a shed.

MATERIALS USED

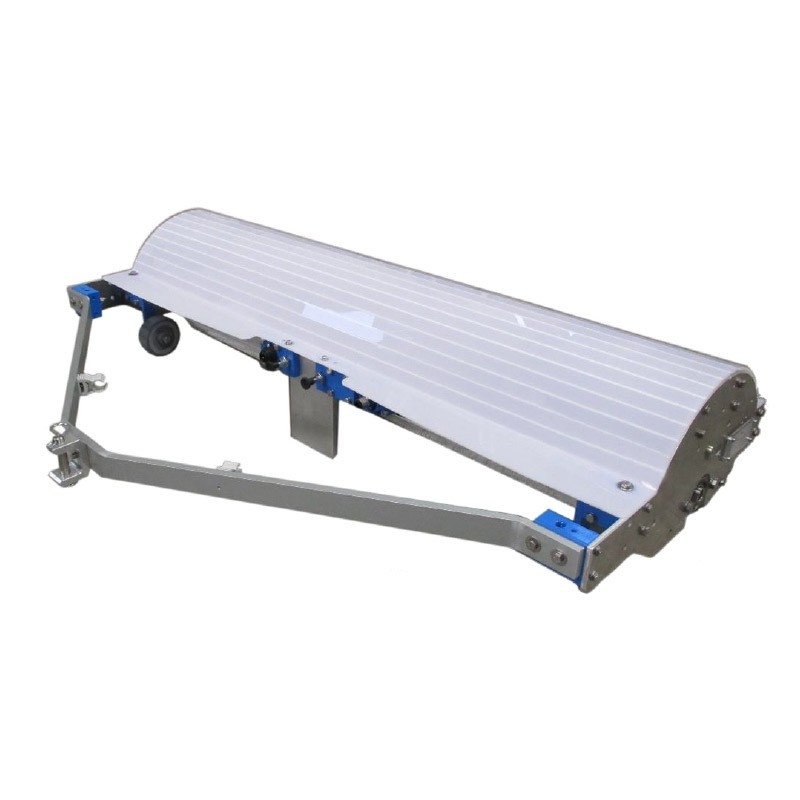

The brush is made of particularly resistant and lightweight stainless steel and is covered with anti-UV PVC material, extremely easy to handle even for non-professional operators.

WAVY DESIGN

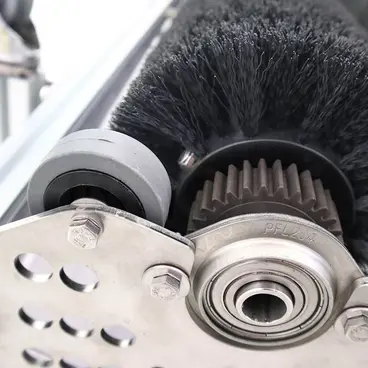

Fly MIDI 10 PRO offers particularly simple and versatile maneuverability , it features a special wavy anti-scratch nylon sector design , which retains water without causing splashes outside the cleaning area.

IDEAL FOR CLEANING WATER BASEMENTS IN GRAVITY

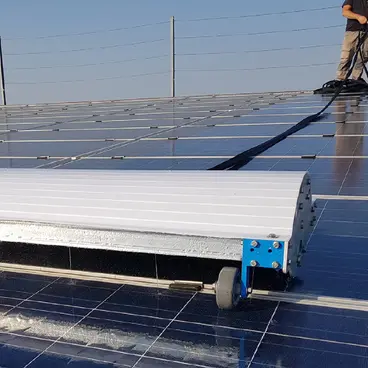

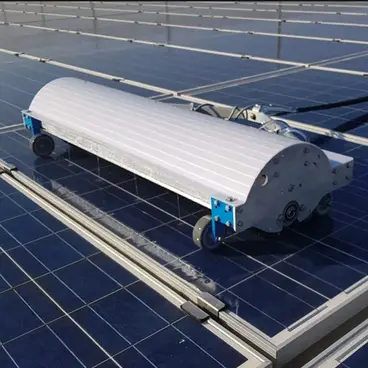

Fly MIDI 10 PRO is a motorized brush for cleaning photovoltaic panels. Thanks to a special cord (sheath) that integrates the power cable and water hose, the PRO is the ideal machine for cleaning GRAVITY FLOORS . It can also be used on sheds using the TGX trolley . The brush's reverse direction is useful for facilitating recovery by the alternator.

USE

Using the Fly MIDI 10 PRO brush is simple, just insert the rubber into the classic household water tap.

Fields of application

• Medium and large surfaces
• Photovoltaic panel systems that cannot be reached with telescopic poles

Watch the videos

The brush is used with:

• Brush + 230V Power Supply
  It will be sufficient to connect it to the electrical network with the appropriate 230V power supply.

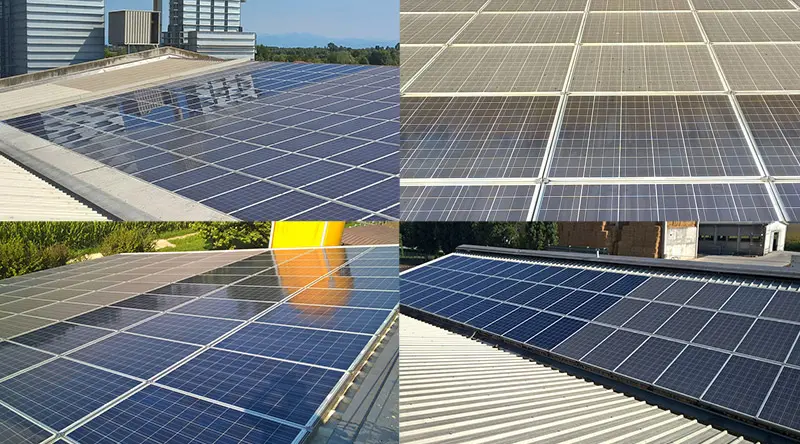

Before/After Examples

Characteristics

• Motorized brush designed for deep cleaning
• For medium and large sized panels
• Applicable on SHED via TGX trolley
• 2 24 Vdc gearmotors

Standard equipment

• Sheath with water pipe and 10-meter connections
• Junction box with controls
• Transformer (portable power supply)
• Rudder
• Instruction manual

Optional equipment

• 9m telescopic pole kit
• Sheathing kit with rudder L. 10 m
• Sheathing kit with rudder L. 15 m
• Sheathing kit with rudder L. 20 m
• Portable power supply kit 20A - 24 Vdc with remote control
• Portable Power Supply Kit 20A- 24 Vdc
• Kit of 2 Side Wheels D.125
• Kit of 2 swivel wheels
