Leo LGP Water Charges
Petrol Motor Pump 6.5 HP

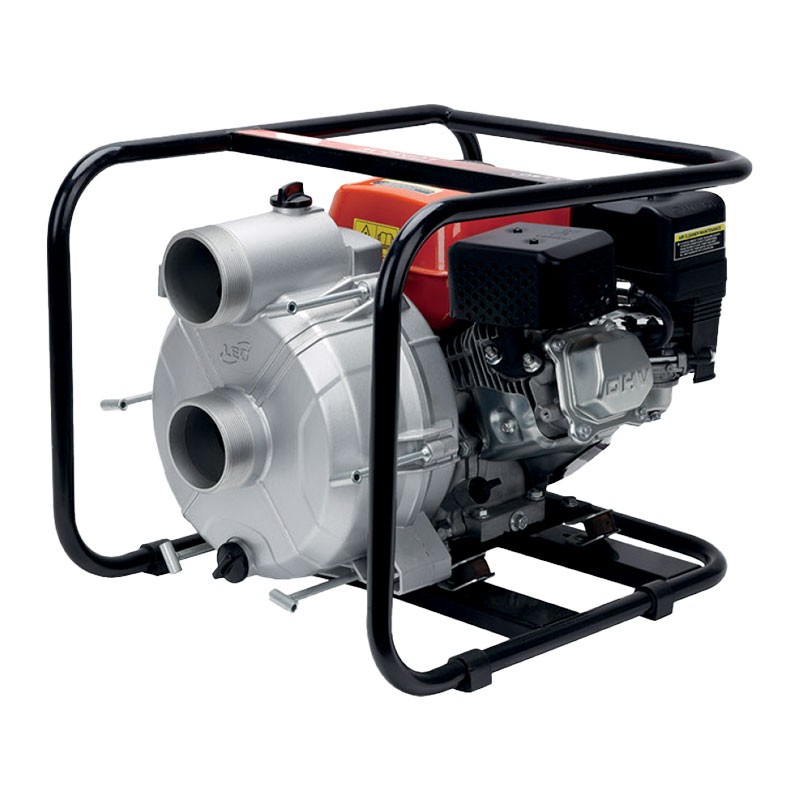

Leo LGP LGP30W Waste Water - Drainage Motor Pump 6.5 HP

The Leo LGP30-W petrol water pump for dirty water is the ideal solution for those who need a powerful, reliable and resistant water pump for the transfer of liquids containing debris . Designed to face the challenges of harsh environments such as mines, quarries, construction sites and municipal facilities, this pump is also perfect for agricultural and industrial uses. Thanks to the 6.5 HP 4-stroke petrol engine , it guarantees high performance with low consumption.

Its compact and portable design, combined with high-quality materials such as anti-rust cast iron and silicon carbide seals, ensures durability and ease of maintenance. Able to move water loaded with debris up to 22 mm , the Leo LGP30-W is designed for those seeking efficiency and robustness. With a high suction capacity and a flow rate of up to 1000 L/min, it represents a strategic investment for professionals in the sector.

Pump

• Impeller and diffuser in rustproof cast iron
• Max suction 8 m
• 3'' input and output
• Diameter of suspended particles 22 mm
• Liquid temperature range 0-40°C

Motor

• Single cylinder, 4 stroke air cooled
• Power 6.5 HP
• Speed 3600 rpm
• Reliable and robust engine

Functional specifications

Motor pump for waste water

The Leo LGP30-W is designed to handle loaded liquids such as those containing sand, mud and small debris up to 22 mm . It is ideal for wastewater treatment in civil and industrial environments, but can also be used in irrigation, drainage and emergency operations. The solid and compact structure allows for easy use even in adverse environmental conditions.

Quality and long-lasting components

The pump is built with resistant materials: impeller and diffuser in anti-rust cast iron, mechanical seal in silicon carbide, easily removable body. These features not only increase the life of the device, but also simplify cleaning and repair operations, ensuring constant efficiency over time.

4 stroke petrol engine

At the heart of the LGP30-W is a 6.5 HP, single-cylinder, air-cooled, 4-stroke petrol engine . With a rated speed of 3600 rpm , it provides continuous, stable performance. The engine has been developed to reduce fuel consumption, making the pump suitable for extended use without excessive fuel consumption.

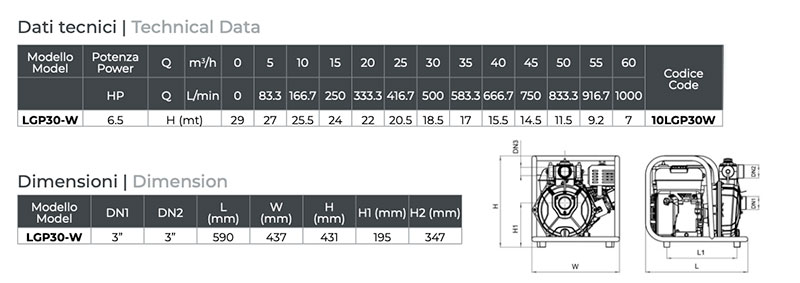

Technical Data and Dimensions

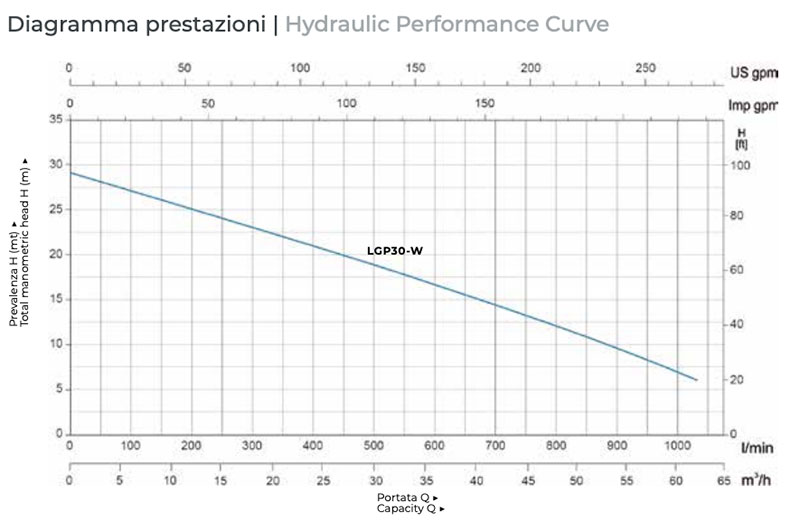

Operation Curve

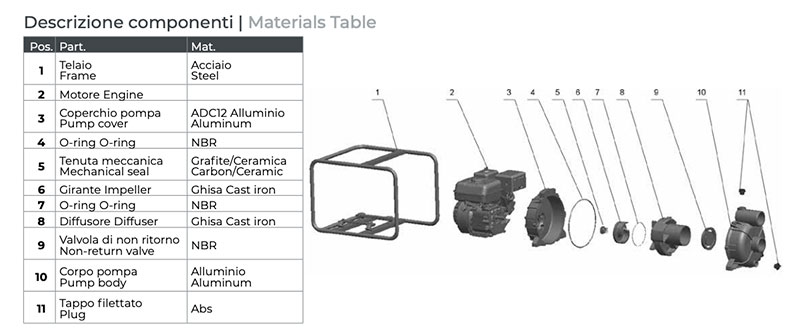

Components Description

Characteristics

• Petrol motor pump
• For heavy waters
• Power up to 6.5 HP
• Flow rate up to 1000 L/min
• Compact and resistant structure
• Anti-rust cast iron impeller
• Ideal for water supply and drainage
• Suction up to 8 m
