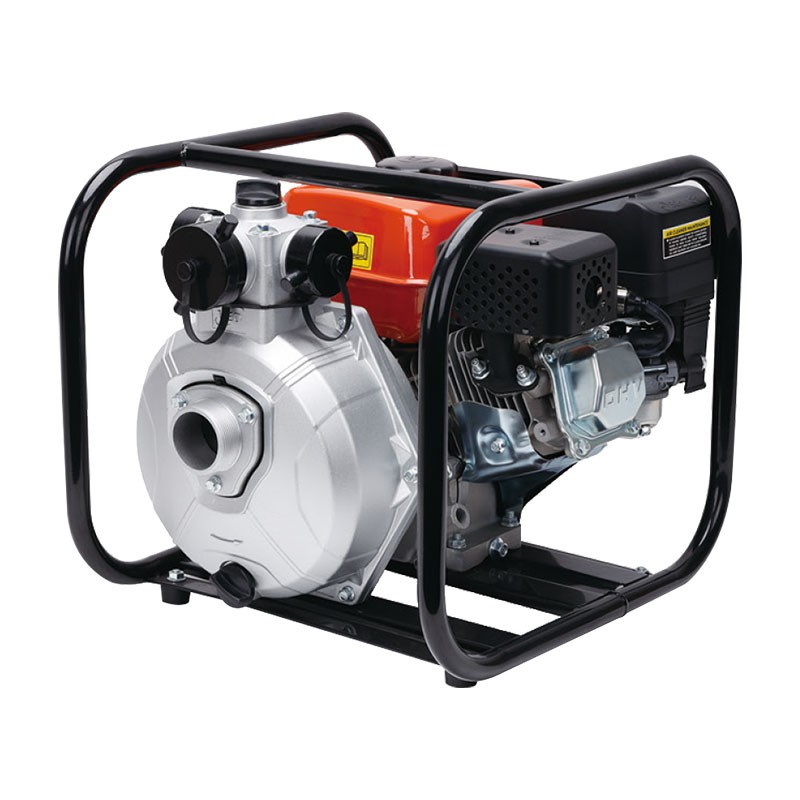

Leo LGP High Head
6.5 HP Petrol Motor Pump

Leo LGP High Head - 4 Stroke Petrol Motor Pump for Drainage

The Leo LGP High Head water pump represents a reliable, powerful and versatile solution for those who need efficient water movement in different operating contexts. This Leo petrol water pump is designed to meet the needs of professionals and private individuals who need a water pump for drainage in agricultural, industrial, municipal and civil environments. Equipped with a 4-stroke air-cooled engine and a power of 6.5 H P, the Leo LGP High Head water pump guarantees high performance with low fuel consumption, making it ideal for prolonged use .

The reinforced pump body of Leo LGP and the internal components in anti-rust materials ensure durability and resistance even in difficult environmental conditions. Thanks to its suction capacity of up to 8 m and an outlet adjustable in 5 positions , this motor pump is perfect for drainage , water supply , irrigation and discharge activities, offering maximum reliability in critical situations such as flooding or emptying construction sites.

Available models

Selectable from drop-down menu:

• • LGP20-H - 6.5 HP - cod. 10LGP20H
  • LGP20-2H - 5.5 HP - cod. 10LGP202H

Functional specifications

Motor pump with robust structure for water drainage

The Leo LGP High Head motor pump is designed to guarantee high performance in the transfer of clean water, with temperatures between 0 and 40°C . Thanks to its robust structure and advanced construction technology, it is the ideal solution for multiple applications: from the drainage of flooded environments such as garages and cellars, to agricultural irrigation, up to use in mines, factories and municipal plants.

Anti-rust materials and 8m suction

Leo LGP Alta Prevalenza is a professional motor pump that integrates components made with corrosion-resistant materials: the impeller and diffuser are made of anti-rust material , while the crankshaft is made of high-quality forged steel . The maximum suction reaches 8 m, with 50 mm (2”) connections both at the inlet and outlet , making it extremely versatile.

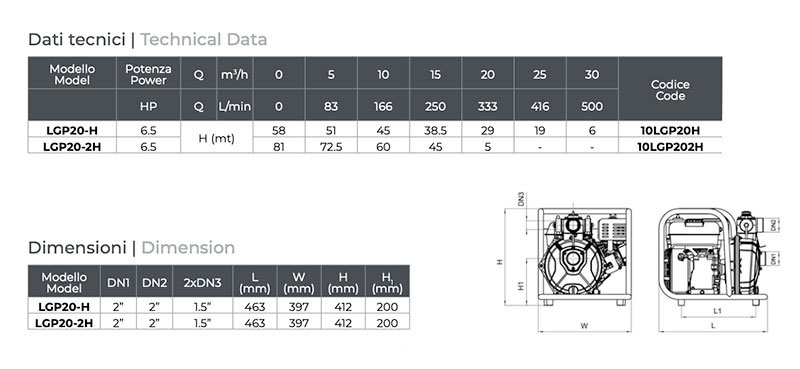

Technical Data and Dimensions

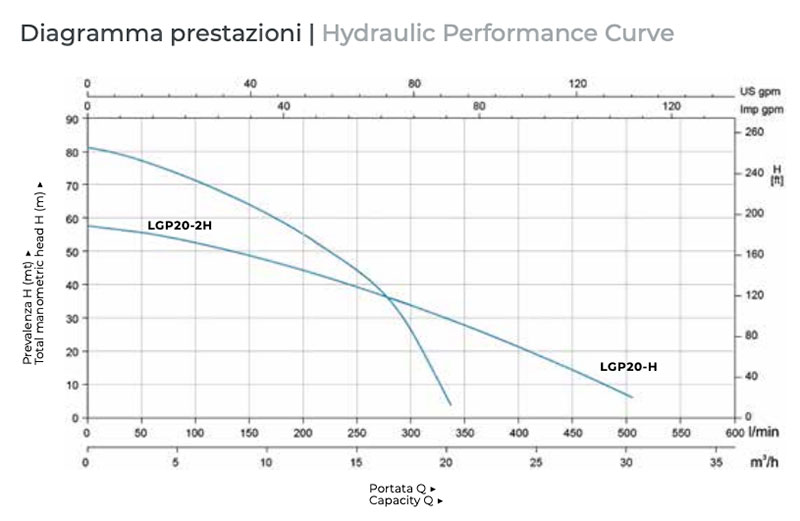

Operation Curve

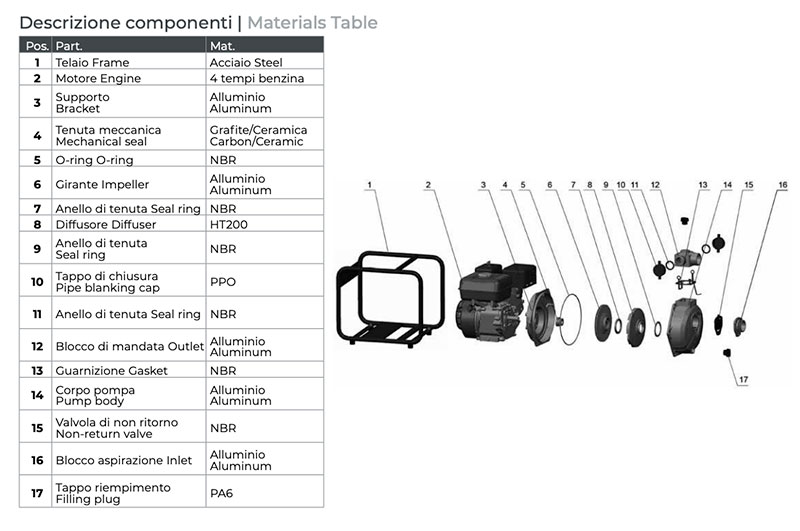

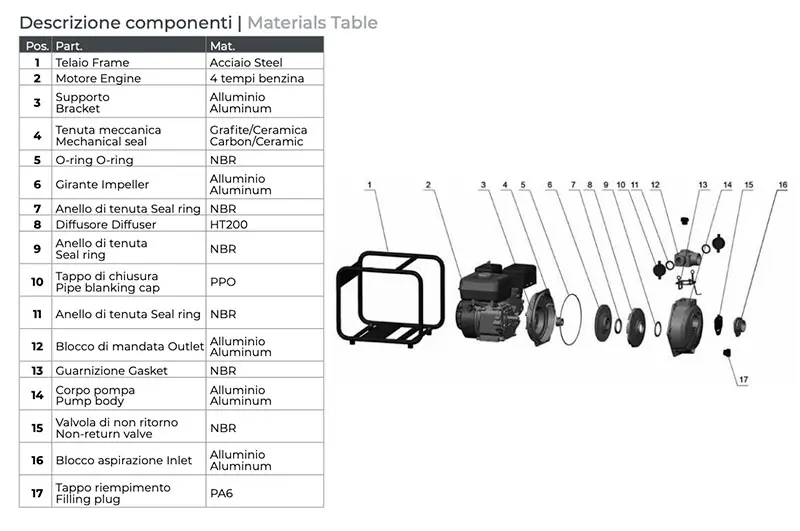

Components Description

Characteristics

• Petrol motor pump
• High Prevalence
• Power up to 6.5 HP
• Flow rate up to 500 L/min
• Suitable for drainage of construction sites/factories/structures
• 5-position adjustable output
• Pump with anti-rust material
• Suction up to 8 m
