Leo LGP
Petrol Motor Pump
from 3 to 6.5 HP
87÷196 cc - 3÷6.5 HP
1000 L/min - Heading 3.5÷32.7 m
Ø 1"1/2/ 2"/3"
€289.00
€236.89 tax excl.
Warranty 2 years
Shipped on Pallet

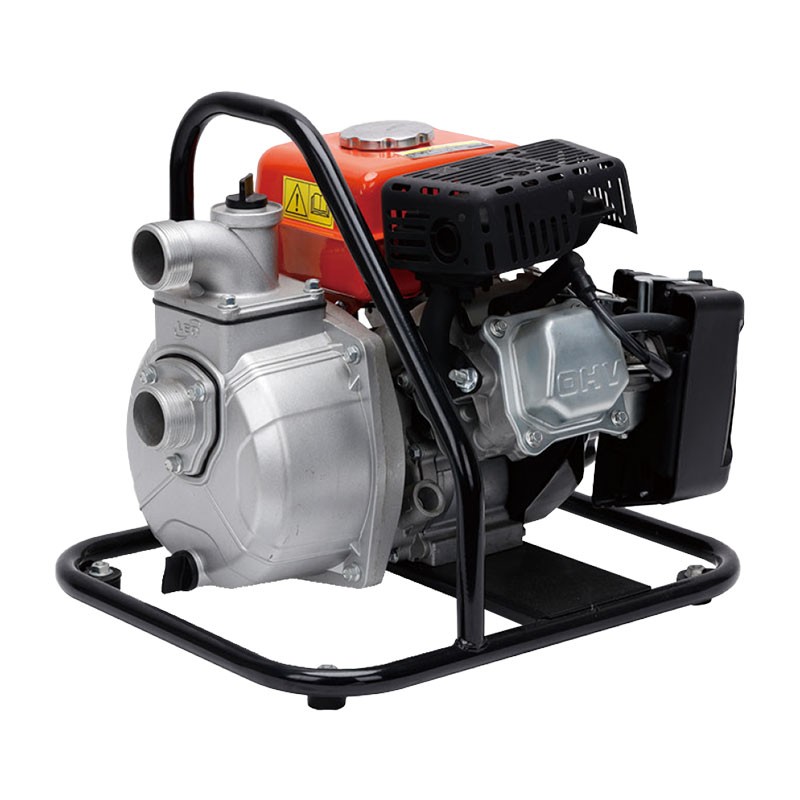

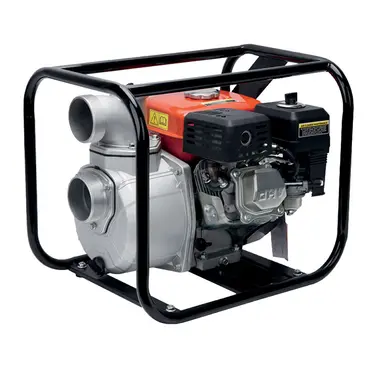

Leo LGP - 4 Stroke Petrol Motor Pump
The Leo LGP petrol water pump is a powerful and versatile machine, designed for the transfer of clean water in a wide range of applications, both domestic and industrial. Thanks to its 4-stroke air-cooled internal combustion engine, available in 3, 5.5 and 6.5 HP versions , it guarantees high performance with low consumption.
Ideal for emergency drainage , irrigation , water supply and drainage in settings such as mines, factories and municipal facilities. Constructed from corrosion-resistant materials and a forged steel shaft, it ensures long life and reliability. The pump can suck up to 8 meters and reaches a maximum flow rate of 1000 L/min. Adjustable outlets and a compact design make it practical and efficient to use.
Available models
Selectable from drop-down menu:
- LGP15A - 3 HP - cod. 10LGP15
- LGP20A - 5.5 HP - cod. 10LGP20
- LGP30A - 6.5 HP - cod. 10LGP30

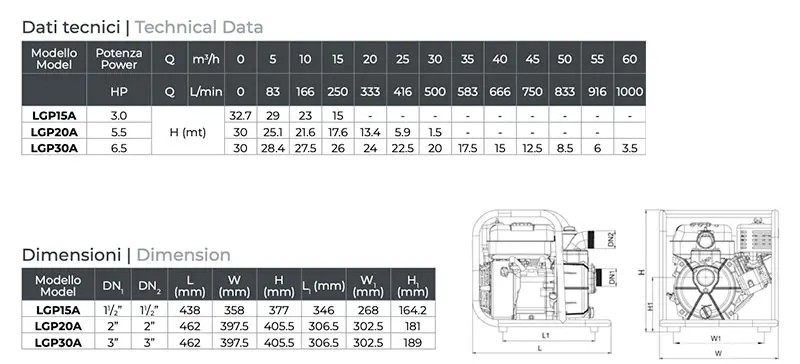

Technical Data and Dimensions

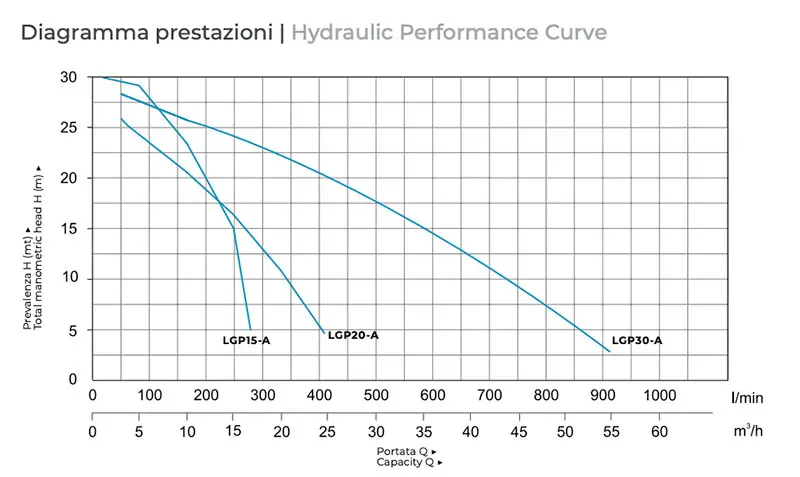

Operation Curve

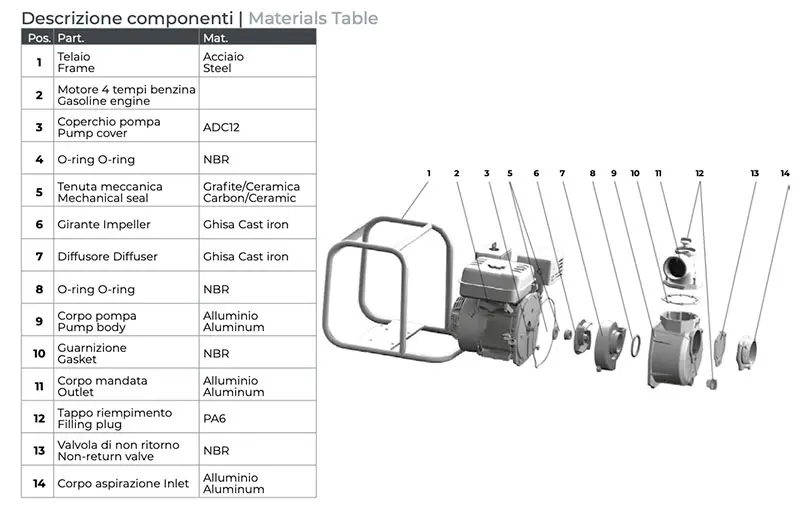

Components Description
Characteristics
- Petrol motor pump
- Power up to 6.5 HP
- Flow rate up to 1000 L/min
- Suitable for drainage of construction sites/factories/structures
- 5-position adjustable output
- Pump with anti-rust material
- Max suction 8 m / 120 s
- Input 38mm, 50mm, 80mm
- 4-stroke engine with selectable power
Technical Data
| Model | LGP15A | LGP20A | LGP30A |
| Code | 10LGP15 | 10LGP20 | 10LGP30 |
| Motor | 4 Stroke Petrol | 4 Stroke Petrol | 4 Stroke Petrol |
| Power | 3 HP - 87 cc | 5.5 HP - 163 cc | 6.5 HP - 196 cc |
| Engine revolution | 3600 rpm | 3600 rpm | 3600 rpm |
| Temperature | 0°- 40°C | 0°- 40°C | 0°- 40°C |
| Max Suction | 8 m / 120 s | 8 m / 120 s | 8 m / 120 s |
| Suction/Discharge Diameter | Ø 1 1/2'' | Ø 2'' | Ø 3'' |
| Flow rate | 15÷32.7 L/min | 1.5÷30 L/min | 3.5÷30 L/min |
| Prevalence | 15÷32.7 m | 1.5÷30 m | 3.5÷30 m |
| Dimensions | 43.8 x 37 x 35.8 cm | 46.2 x 39.7 x 40.5 cm | 46.2 x 39.7 x 40.5 cm |
| Weight | 14.5 kg | 21.5 kg | 23 kg |
Technical Data
| Model | LGP15A | LGP20A | LGP30A |
| Code | 10LGP15 | 10LGP20 | 10LGP30 |
| Motor | 4 Stroke Petrol | 4 Stroke Petrol | 4 Stroke Petrol |
| Power | 3 HP - 87 cc | 5.5 HP - 163 cc | 6.5 HP - 196 cc |
| Engine revolution | 3600 rpm | 3600 rpm | 3600 rpm |
| Temperature | 0°- 40°C | 0°- 40°C | 0°- 40°C |
| Max Suction | 8 m / 120 s | 8 m / 120 s | 8 m / 120 s |
| Suction/Discharge Diameter | Ø 1 1/2'' | Ø 2'' | Ø 3'' |
| Flow rate | 15÷32.7 L/min | 1.5÷30 L/min | 3.5÷30 L/min |
| Prevalence | 15÷32.7 m | 1.5÷30 m | 3.5÷30 m |
| Dimensions | 43.8 x 37 x 35.8 cm | 46.2 x 39.7 x 40.5 cm | 46.2 x 39.7 x 40.5 cm |
| Weight | 14.5 kg | 21.5 kg | 23 kg |
