ABAC CleanAir CLR
Compressore Medicale
€814.00
€667.21 tax excl.
Warranty 2 years
14 days to change your mind
Shipped on Pallet

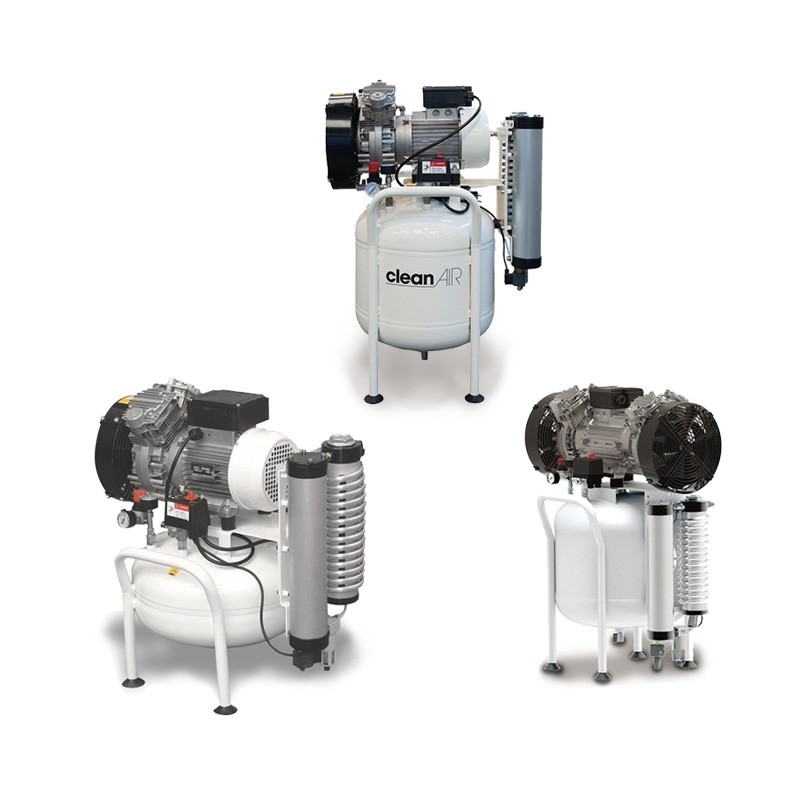

ABAC CleanAir CLR - Silent Oil-Free Compressor
The Abac CleanAir CLR are oil-free medical compressors , ideal for use in dental practices, laboratories, clinics, food companies and in all areas where clean, top-quality compressed air is required.
These compressors use an electric motor with automatic thermal protection , a motor/pump unit connection with minimal transmission losses and optimal performance and a high-capacity cooling fan; the tanks are treated internally with epoxy paint to prevent corrosion, thus ensuring long life and safe operation.
Abac CleanAir CLR units are built with high-quality materials and have a limited number of moving parts to ensure long-lasting durability with minimal maintenance. Being completely oil-free, they do not require any oil changes or filtration systems.
The entire range can be equipped with a dryer and water separator ; the dryer ensures a supply of dry air down to a dew point of -40 °C and the water separator is able to collect most of the water droplets.
Characteristics
- Oil-free operation
- Ideal for medical, dental and food use
- Tank treated with epoxy paint
- Low noise
- Quality materials
- Available with dryer and water separator
Technical Data
| CLR 15/25 | CLR 15/50 | CLR 20/25 | CLR 20/50 | CLR 25/50 | |
| Power Supply | 230V | 230V | 230V | 230V | 230V |
| Intake Air | 240 L/min | 240 L/min | 350 L/min | 350 L/min | 480 L/min |
| Pressure | 8 bars | 8 bars | 8 bars | 8 bars | 8 bars |
| Engine Power | 1.5 HP | 1.5 HP | 2 HP | 2 HP | 2.5 HP |
| Engine RPM | 1400 RPM | 1400 RPM | 1400 RPM | 1400 RPM | 1400 RPM |
| Reservoir | 25 L | 50 L | 25 L | 50 L | 50 L |
| Noise | 70.8 dB | 70.8 dB | 73.6 dB | 73.6 dB | 77 dB |
| Dimensions without dryer | 47 x 43 x 67 cm | 45 x 47 x 85 cm | 47 x 47 x 70 cm | 45 x 47 x 85 cm | 64 x 47 x 89 cm |
| Dimensions with dryer | 52.5 x 47 x 66.5 cm | 60 x 47 x 85 cm | 55 x 47 x 70 cm | 60 x 47 x 85 cm | 64 x 47 x 89 cm |
| Weight without dryer | 31 kg | 36 kg | 36 kg | 40 kg | 52 kg |
| Weight with dryer | 43 kg | 47 kg | 50 kg | 54 kg | 60 kg |
Technical Data
| CLR 15/25 | CLR 15/50 | CLR 20/25 | CLR 20/50 | CLR 25/50 | |
| Power Supply | 230V | 230V | 230V | 230V | 230V |
| Intake Air | 240 L/min | 240 L/min | 350 L/min | 350 L/min | 480 L/min |
| Pressure | 8 bars | 8 bars | 8 bars | 8 bars | 8 bars |
| Engine Power | 1.5 HP | 1.5 HP | 2 HP | 2 HP | 2.5 HP |
| Engine RPM | 1400 RPM | 1400 RPM | 1400 RPM | 1400 RPM | 1400 RPM |
| Reservoir | 25 L | 50 L | 25 L | 50 L | 50 L |
| Noise | 70.8 dB | 70.8 dB | 73.6 dB | 73.6 dB | 77 dB |
| Dimensions without dryer | 47 x 43 x 67 cm | 45 x 47 x 85 cm | 47 x 47 x 70 cm | 45 x 47 x 85 cm | 64 x 47 x 89 cm |
| Dimensions with dryer | 52.5 x 47 x 66.5 cm | 60 x 47 x 85 cm | 55 x 47 x 70 cm | 60 x 47 x 85 cm | 64 x 47 x 89 cm |
| Weight without dryer | 31 kg | 36 kg | 36 kg | 40 kg | 52 kg |
| Weight with dryer | 43 kg | 47 kg | 50 kg | 54 kg | 60 kg |
