Towerlux LUMINITE LED
Portable 230V Light Tower
for Work, Events, Emergencies

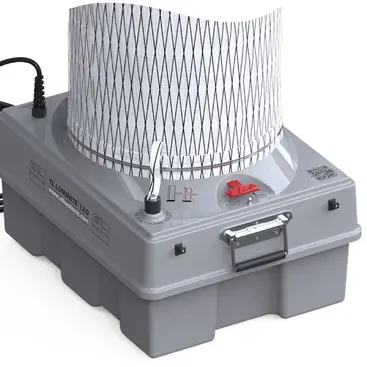

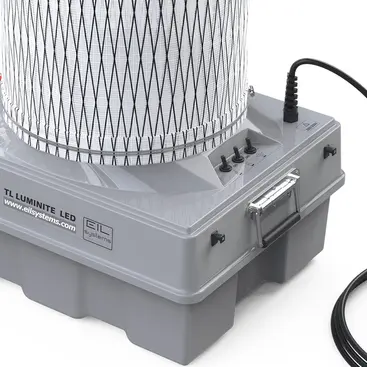

Towerlux LUMINITE LED - Inflatable Light Tower for Lighting Large Spaces

The Towerlux LUMINITE LED inflatable light tower represents a revolutionary solution for illuminating large spaces. Thanks to its inflatable supporting structure, Towerlux LUMINITE is an inflatable light tower that, while being extremely lightweight , durable, and easy to transport , is capable of illuminating an area of 10,000 m2 with a perceived output of 130,000 lumens . Installation and activation take just 15 seconds, allowing a single operator to operate it without the need for tools or additional equipment.

Designed to illuminate events and also for use in emergency situations , Towerlux LUMINITE LED is an effective and space-saving solution compared to traditional light towers, which are decidedly bulkier and noisier than the Towerlux inflatable light tower.

Illuminated area of 10,000 m2

Available on request TL Banner

Ideal for social communications , emergencies, and advertising, the TL Banner is a 5m2 adhesive that effectively diffuses printed colors. The TL Banner is easily interchangeable and allows you to convey emergency warnings , safety signals, and other visual information quickly and easily.

Examples of using TL Banner on Towerlux towers

The technologies used

• Eilight Technology
• Anti-glare fabric
• 360° lighting
• 15 second assembly
• LED technology
• Forced Air Cooling
• 130000 lm of illumination
• No Tools Required

Functional specifications

Portable LED light column

Developed with proprietary EILIGHT® technology, Towerlux LUMINITE uses a latest-generation LED source to guarantee unprecedented light output. The special anti-glare fabric diffuser ensures uniform 360° illumination , covering up to 10,000 m2.

Over 40,000 hours of lighting

LUMINITE guarantees extraordinary durability and optimal visibility in any conditions, thanks to its perceived power of over 130,000 lumens. EILIGHT®'s patented dual temperature control ensures optimal LED operating conditions, even in ambient temperatures ranging from -20°C to +40°C.

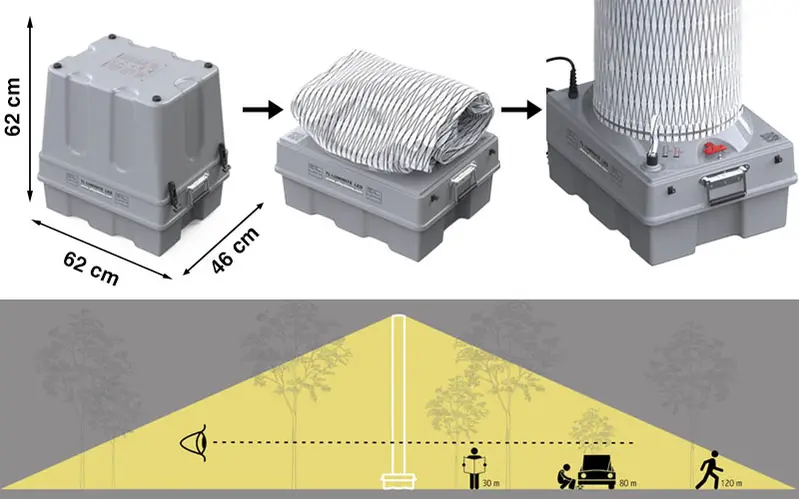

Easy to transport lighthouse tower that assembles in 15 seconds

The overall weight of just 35 kg makes Towerlux LUMINITE a device that can be easily transported even in a standard small car.

With a closed footprint of 60x40x80 cm, this light tower can be easily moved by a single operator, even when switched on, allowing it to quickly adapt to operational needs.

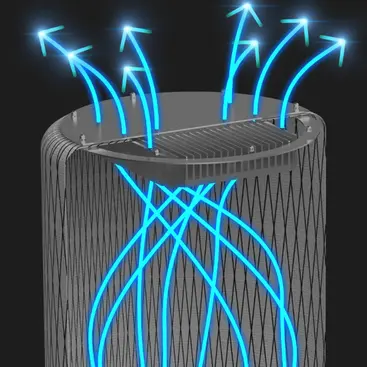

Forced air cooling system

Towerlux LUMINITE's forced air cooling system ensures continuous and efficient operation, preventing overheating and ensuring a long lifespan of the LED components.

Furthermore, the four-layer laminated fabric structure provides superior resistance to impacts, weather and UV rays , avoiding problems of corrosion or deterioration over time.

Inflatable Wind-Resistant Light Tower

Thanks to rigorous testing and EILIGHT®'s advanced technological solutions, Towerlux LUMINITE can withstand wind gusts of up to 110 km/h , comparable to those generated by helicopter blades. It can be used on any type of terrain, even in extreme weather conditions, maintaining impeccable stability.

Diffusion Silk Technology

The LUMINITE module fabric combines mechanical resistance and the diffusive qualities of silk , offering uniform, comfortable light without annoying glare. This combination ensures professional, high-quality lighting, ideal for any operational need.

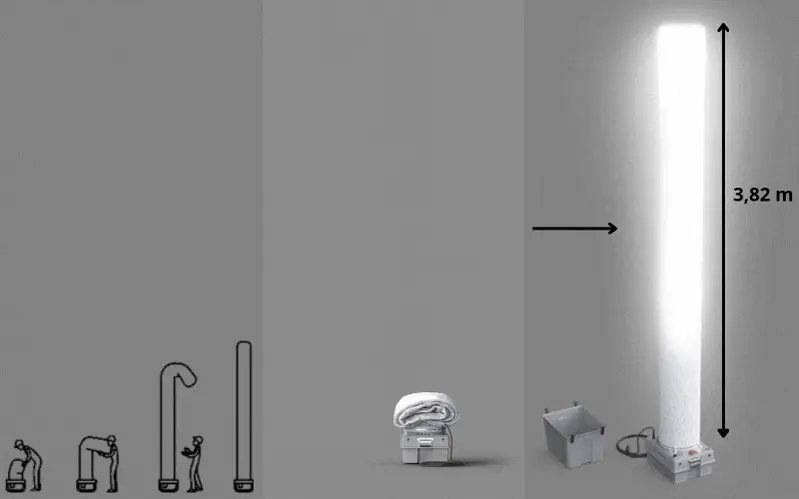

Single-operator assembly in 15 seconds

Installing Towerlux LUMINITE is quick and easy. Here are a few simple steps that allow for immediate installation by a single operator in just 15 seconds :

• Open the case and unroll the fabric
• Turn on the inflation pump and accompany the fabric
• Wait for the fabric to fully inflate
• Turn on the LED system

Control and safety through patented CES and CLS systems

Towerlux LUMINITE is equipped with innovative systems for always controlled inflation and deflation.

• CES (Controlled Elevation System) : EILIGHT® patent that ensures progressive vertical extension of the structure, thanks to sectors with bulkheads featuring holes of variable diameters. This pressure differential allows for rapid and stable lifting.
• CLS (Controlled Lowering System) : an elastic band applied at mid-height controls deflation, preventing sudden drops of the light source and ensuring safe, vertical folding.

Advantages over a traditional light tower

Compared to traditional light towers, the advantages of a Towerlux light tower can be summarized as follows:

• • Quick, tool-free installation : Luminite installs in just 15 seconds and requires no tools. A single operator can manage the entire process, saving significant time and labor.
  • Lightweight and Portable in a Small Car : Weighing just 35 kg, Luminite is easy to transport even in a small car, unlike traditional light towers, which are often bulky and heavy. Furthermore, it can be easily moved even when turned on.
  • Intense but non-glaring light : offers 360° diffused light without glare, improving operator safety.
  • Greater Safety and Wind Resistance : Thanks to the patented CES and CLS systems, Luminite guarantees controlled inflation and deflation, preventing sudden drops of the light source. It withstands wind gusts of up to 130 km/h, much more than conventional metal towers.
  • Superior LED Lifespan : LEDs last over 40,000 hours, reducing maintenance costs and ensuring consistent, efficient lighting in any weather condition.

Examples of use

• Emergency Use or Temporary Lighting
• Construction Sites and Emergency Interventions

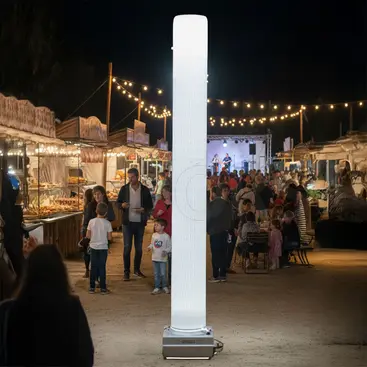

• Restaurants, Clubs and Concerts

Characteristics

• Movable inflatable lighthouse tower
• Ultra-Quick Installation
• Easy to Carry
• Wind Resistance
• 360° lighting
• Power 130,000 lumens
• Low beam and diffused light
• Long-lasting LEDs
• Air Cooling
• Safe Use

Watch the videos

Assembly and storage instructions for the LUMINITE Inflatable Lighthouse Tower

Example of Towerlux LUMINITE emergency use

Example of use of LUMINITE for agricultural use

Towerlux - Leader in the design of portable lighting towers

Towerlux is an Italian company specializing in the design of portable light towers for all sectors, from private use to public safety and security applications. The first patent was filed in 1999, giving rise to the Towerlux brand. For over 20 years, Towerlux has invested in research and development, offering advanced technology for simple, safe, and fast operations.
