CGM TP
Multi LED Lighting Tower 230V
Telescopic Pole 7 m

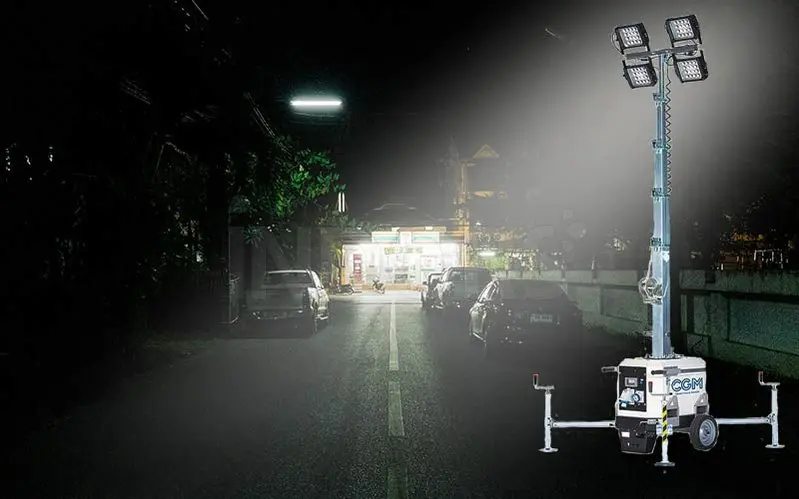

CGM TP Multi LED Lighting Tower with 7 m Telescopic Pole

The CGM TP 230V Lighting Towers are available in 2 different models to choose from based on your work needs. Equipped with a 16A 3P power socket and plug , these Lighting Towers can be connected in series to the same energy source . The telescopic pole with manual lifting system reaches 7 m in height and can rotate 360° . This machine has a maximum wind resistance of 80 km/h .

Model TP4-160L

The CGM TP4-160L model is equipped with 4 160W LED headlights of 20350 lm (Lumen) each and a lightable area of 2600 m² @ 5 lux .

Model TP6-75L

The CGM TP6-75W model is equipped with 6 75W LED headlights of 9225 lm (Lumen) each and a lightable area of 2400 m² @ 5 lux .

Functional Specifications

The CGM TP Lighting Towers are the ideal solution for night work or in difficult visibility conditions , allowing you to illuminate up to 2600 m² . LED lamps work with high energy efficiency . Available in 2 variants, you can choose the version with 4 160W LED lights or 6 75W LED lights.

Technical specifications

The TP Lighting Towers have a telescopic pole that can be manually extended up to 7 m in height. Wind stability up to 80 km/h is guaranteed by the presence of 4 stabilizers . The CGM TP models can illuminate up to 2600 m².

Fields of Application

• Gas, oil and mining extraction sites
• Buildings
• Emergency
• Military applications
• Special events
• Hard to reach areas

Watch the video

Characteristics

• Multi LED Light Tower
• Manual hydraulic telescopic rod
• Telescopic pole height 7 m
• Input plug and output socket 16A 230V
