CGM PR
Multi LED Lighting Tower
Telescopic Pole 5.5 m
5.5m - 4 x 160W
Integrated generator 4.3÷10.4 kW
2200 m²

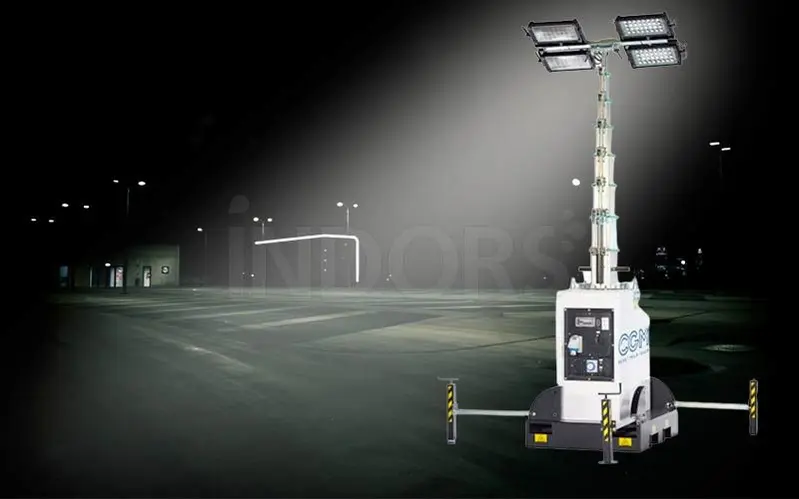

CGM PR Multi LED Light Tower with 5.5 m Telescopic Pole and Generator Included
The CGM PR Lighting Towers with integrated 230 V power generator are available with CGM petrol , HONDA or KOHLER diesel engines, depending on performance needs. Equipped with a manual towing trolley and practical handles for retractable handling , the CGM PR Lighting Towers can be attached to a mobile unit for road transport .
The telescopic pole has a manual headlight lifting system that reaches a height of 5.5 m and a rotation of 355° . The 4x160W multi LED headlights with 20350 lm (Lumen) each, allow you to illuminate up to 2200 m² . This machine can tolerate adverse weather conditions , with a maximum wind resistance of 80 km/h .
MODEL PR4-160L 6000SP SUPER POWER
14HP CGM ENGINE
The CGM PR4-160L 6000SP model is equipped with a CGM 14HP 10.4 kW petrol engine with 25 L tank capacity, 420 cc displacement and CGM alternator .
AUTONOMY UP TO 20 H
The characteristics of this engine allow the 6000SP Super Power Lighting Tower to operate with a continuous power of 5.4 kW and to have an autonomy with working lights of 20 hours .
PR4-160L CX5000 DELUXE MODEL
HONDA GSX270 ENGINE
The CGM PR4-160L CX5000 model is equipped with a HONDA GSX270 5.8 kW petrol engine with 15 L tank capacity, 270 cc displacement and NSM/LINZ ELECTRIC alternator .
AUTONOMY UP TO 20 H
The characteristics of this engine allow the CX5000 Deluxe Light Tower to operate with a continuous power of 4.5 kW and to have an autonomy with working lights of 20 hours .
MODEL PR4-160L DS4000 QUIET
KOHLER KD350 ENGINE
The CGM PR4-160L DS4000 model is equipped with a KOHLER KD350 4.3 kW diesel engine with a 30 L tank capacity, 349 cc displacement and, like the CX5000 model, has an NSM/LINZ ELECTRIC alternator .
AUTONOMY UP TO 60 H
The characteristics of this engine allow the DS4000 Quiet Light Tower to operate with a continuous power of 3.6 kW and to have an autonomy with working lights of 60 hours .
SILENCED LIGHT TOWER
The cabin containing the generator engine of the CGM DS4000 Quiet model is soundproofed and allows maintaining a low noise level , not exceeding 70 dB(A) at 7 m .
FUNCTIONAL SPECIFICATIONS
The efficient CGM PR Light Tower is the ideal solution for night work or in difficult visibility conditions , allowing you to illuminate areas of up to 2200 m² . The 4 160W LED lamps work with high energy efficiency . The engines available for the three variants are equipped with AVR regulator , electric starter with battery or recoil , are extremely compact and have high efficiency . For a silent and low consumption solution, the DS4000 Quiet model has a KOHLER KD350 diesel engine contained in a silenced cab.
TECHNICAL SPECIFICATIONS
The PR Lighting Towers with generator included have a telescopic pole that can be extended up to a maximum height of 5.5 m with manual lifting . Wind stability up to 80 km/h is guaranteed by the presence of 3 stabilizers . The multi LED headlights of the CGM PR models can illuminate up to 2200 m².
FIELDS OF APPLICATION
- Gas, oil and mining extraction sites
- Buildings
- Emergency
- Military applications
- Special events
- Hard to reach areas
WATCH THE VIDEO
CHARACTERISTICS
- Light Tower with Generator Included
- Trolley approved for road transport
- Telescopic pole height 5.5 m
- CGM 14HP Petrol Powered Generator (model PR4-160L 6000SP)
- HONDA GSX270 Petrol Powered Generator (model PR4-160L CX5000)
- KOHLER KDW350 Diesel Powered Generator (model PR4-160L DS4000)
Technical data
Model | PR4-160L 6000SP | PR4-160L CX5000 | PR4-160L DS4000 |
Voltage | 230V | 230V | 230V |
Motor | CGM 14 HP | HONDA GSX270 | KOHLER KDW350 |
Power Supply | Gas | Gas | Diesel |
Continuous Power | 6 kVA - 5.4 kW cos φ 0.9 | 5 kVA - 4.5 kW cos φ 0.9 | 4 kVA - 3.6 kW cos φ 0.9 |
Poles / Motor Revolutions | 2 / 3000 RPM | 2 / 3000 RPM | 2 / 3000 RPM |
Displacement | 420 cc | 270 cc | 349 cc |
Tank capacity | 25 L | 15 L | 30 L |
Lighthouses | 4 x 160W LEDs | 4 x 160W LEDs | 4 x 160W LEDs |
Maximum Extension | 5.5 m | 5.5 m | 5.5 m |
Lift | Manual | Manual | Manual |
Generator | Included | Included | Included |
Max. Illumination | 2200 m² | 2200 m² | 2200 m² |
Stabilizers | 3 | 3 | 3 |
Wind stability | up to max. 80 km/h | up to max. 80 km/h | up to max. 80 km/h |
Lamp autonomy | 20 hours | 20 hours | 60 hours |
Open dimensions | 130 x 550 x 90 cm | 130 x 550 x 90 cm | 130 x 550 x 90 cm |
Weight | 280kg | 280kg | 280kg |
