CGM FX
Multi LED / Metal Halide Lighting Tower

CGM FX Multi LED / Metal Halide Light Tower with Generator Included

The CGM FX model light towers with integrated 230V power generator are available with KOHLER motor in different models based on needs. Equipped with a towing trolley , the CGM FX Lighting Towers can be attached to a mobile unit for road transport . The motorized telescopic pole has a hydraulic lifting system that reaches a height of 7.5 m and a rotation of 355° . This machine can tolerate adverse weather conditions , with a maximum wind resistance of 100 km/h .

Model FXS4-320L

Illuminable area 4500 m²

The CGM FXS4-320L model has 4 320W LED headlights of 41550 lm (Lumen) each and a lightable area of 4500 m² @ 5 lux .

KOHLER KD350 engine

Equipped with single-phase alternator and KOHLER KD350 4.3 kW 2-pole 3000 RPM diesel engine and a tank capacity of 40L .

Silenced Light Tower

The cabin containing the generator engine of this Light Tower is soundproofed and allows maintaining a low noise level , not exceeding 68 dB(A) at 7 m .

Autonomy Up to 84 h

The characteristics of this engine allow the CGM FXS4-320L Lighting Tower to operate with a power of 4.2 kW and to have an autonomy with working lights of 84 hours .

Model FX4-1000JM

Illuminable area 4300 m²

The CGM FX4-1000JM model has 4 1000W metal halide spotlights of 96000 lm (Lumen) each and a lightable area of 4300 m² @ 5 lux .

KOHLER KDW1003 engine

Equipped with single-phase alternator and KOHLER KDW 7.6 kW 4 pole 1500 RPM diesel engine and a tank capacity of 105 L.

Silenced Light Tower

The cabin containing the generator engine of this Light Tower is soundproofed and allows maintaining a low noise level , not exceeding 65 dB(A) at 7 m .

Autonomy Up to 70 h

The characteristics of this engine allow the CGM FX4-1000JM Lighting Tower to operate with a power of 5 kW and to have an autonomy with working lights of 70 h .

Model FX4-320L

Illuminable area 4500 m²

The CGM FX4-320L model has 4 320W LED headlights of 41550 lm (Lumen) each and a lightable area of 4500 m² @ 5 lux .

KOHLER KDW702 engine

Equipped with single-phase alternator and KOHLER KDW702 4.9 kW 4 pole 1500 RPM diesel engine and a tank capacity of 105 L.

Silenced Light Tower

The cabin containing the generator engine of this Light Tower is soundproofed and allows maintaining a low noise level , not exceeding 65 dB(A) at 7 m .

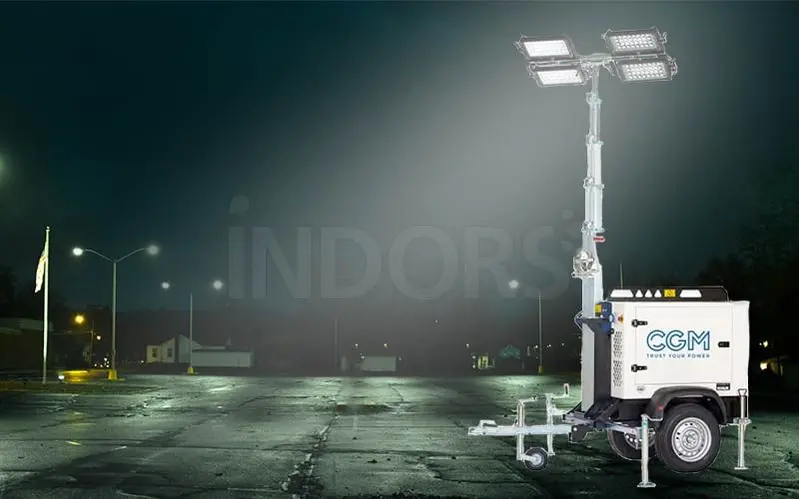

Autonomy Up to 210 h

The characteristics of this engine allow the CGM FX4-320L Lighting Tower to operate with a power of 3.5 kW and to have an autonomy with working lights of 210 h .

Functional Specifications

The efficient CGM FX Lighting Tower is the best solution for night work or in difficult visibility conditions , allowing you to illuminate areas of up to 4500 m² . The long-lasting lamps work with high energy efficiency ; the KOHLER engine is extremely compact and has a very high output , silent and with low fuel consumption .

Technical specifications

The FX Lighting Towers with generator included have a telescopic pole that can be extended up to a maximum height of 7.5 m with hydraulic lifting . Wind stability up to 100 km/h is guaranteed by the presence of 4 adjustable stabilizers . The CGM FX models, thanks to their powerful headlights, can illuminate up to 4500 m².

Fields of Application

• Gas, oil and mining extraction sites
• Buildings
• Emergency
• Military applications
• Special events
• Hard to reach areas

Watch the video

CHARACTERISTICS

• Light Tower with Generator
• Trolley approved for road transport
• Telescopic pole height 7.5 m
• KOHLER KD305 Diesel Powered Generator (model FXS4-320L)
• KOHLER KDW1003 Diesel Powered Generator (model FX4-1000JM)
• KOHLER KDW702 Diesel Powered Generator (model FX4-320L)
