CGM OK
Torre Faro Multi LED

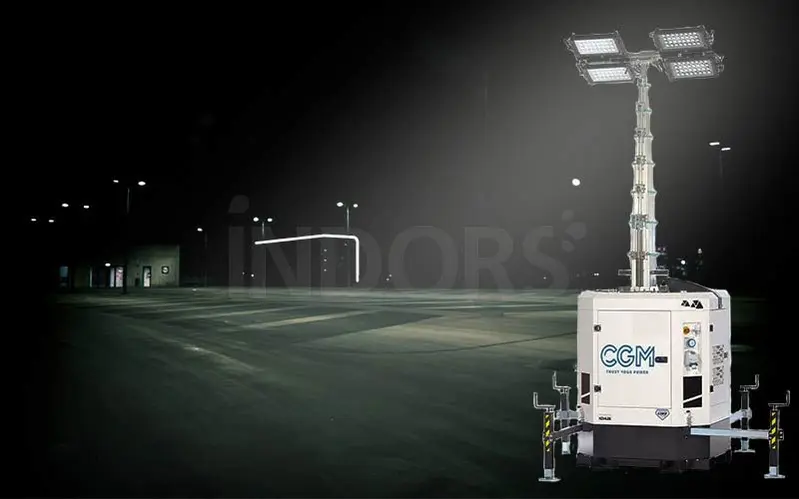

CGM OK Multi LED Light Tower with Generator Included

The OK model CGM Lighting Towers with integrated 230V power generator are available with a KOHLER KDW702 diesel engine for the OK4-320L and OK6-160L models, while the OKB4-160L model is powered by a 2V AGM battery . Equipped with a towing trolley , the CGM OK Lighting Towers can be attached to a mobile unit for road transport . The motorized telescopic pole has a hydraulic lifting system that reaches 8.5 m in height and has a rotation of 359° . This machine can tolerate adverse weather conditions, with a maximum wind resistance of 110 km/h .

Model OK4-320L

Illuminable area 5000 m²

The CGM OK4-320L model with 4 320W LED headlights of 41550 lm (Lumen) each and a lightable area of 5000 m² @ 5 lux .

KOHLER KDW702 engine

Equipped with single-phase alternator and KOHLER KDW702 4.9 kW diesel engine , 4 poles , 1500 RPM and a tank capacity of 140 L.

Silenced Light Tower

The cabin containing the generator engine of this Light Tower is soundproofed and allows maintaining a low noise level , not exceeding 61 dB(A) at 7 m .

Autonomy Up to 280 h

The characteristics of this engine allow the CGM OK4-320L Lighting Tower to operate with a maximum power of 3.5 kW and to have an autonomy with working lights of 280 h .

Model OK6-160L

Illuminable area 4200 m²

The CGM OK6-160L model with 6 160W LED headlights of 20350 lm (Lumen) each and a lightable area of 4200 m² @ 5 lux .

KOHLER KDW702 engine

Equipped with single-phase alternator and KOHLER KDW702 4.9 kW diesel engine , 4 poles , 1500 RPM and a tank capacity of 1 20 L.

Silenced Light Tower

As in the OK4-320L model, the engine of this generator is also contained in a soundproof cabin which allows it not to exceed 61 dB(A) , allowing its use near operational areas .

Autonomy Up to 250 h

The characteristics of this engine allow the CGM OK6-160L Lighting Tower to operate with a maximum power of 3.5 kW and to have an autonomy with working lights of 290 h .

Model OKB4-160L

Illuminable area 3000 m²

The OKB4-160L model with 4 160W LED headlights of 20350 lm (Lumen) each and a lightable area of 3000 m² @ 5 lux .

Powered by 400 Ah battery

Powered by 400 Ah battery with inverter control technology. The charging time is 12 hours , while the battery life is 400 cycles .

Zero Maintenance Costs

This battery-powered CGM Lighting Tower reduces maintenance and fuel costs and reduces pollution thanks to the total absence of noise and polluting emissions .

Autonomy Up to 60 h

The use of this Light Tower with lights operating at 30% allows an autonomy of 60 hours .

Functional specifications

The efficient CGM OK Lighting Tower is the best solution for night work or in difficult visibility conditions . The long-lasting lamps work with high energy efficiency ; the engine of the OK4-320L and OK6-160L models is extremely compact and has a very high output , silent and with low fuel consumption , while the battery-powered OKB4-160L model is ideal for those looking for an even quieter solution, without the cost of maintenance and without polluting emissions.

Technical specifications

The CGM OK Lighting Towers with generator included have a telescopic pole that can be extended up to max. 8.5 meters high with hydraulic lifting . Wind stability up to 110 km/h is guaranteed by the presence of 4 adjustable stabilizers . The CGM OK models, thanks to their powerful LEDs, can illuminate up to 5000 m² .

Fields of application

• Gas, oil and mining extraction sites
• Buildings
• Emergency
• Military applications
• Special events
• Hard to reach areas

Watch the video

Characteristics

• Light Tower with Generator
• Trolley approved for road transport
• Telescopic pole height 8.5 m
• KOHLER KDW702 Diesel Powered Generator (models OK4-320L and OK6-160L)
• 2V AGM Battery Powered Generator (model OKB4-160L)
