MOSA TF KIT I 9
Light Tower on Base
9 m - 4 x 280÷1500 W
Senza Generatore
Max. 4200 m²
Warranty 2
years
Shipped on Pallet

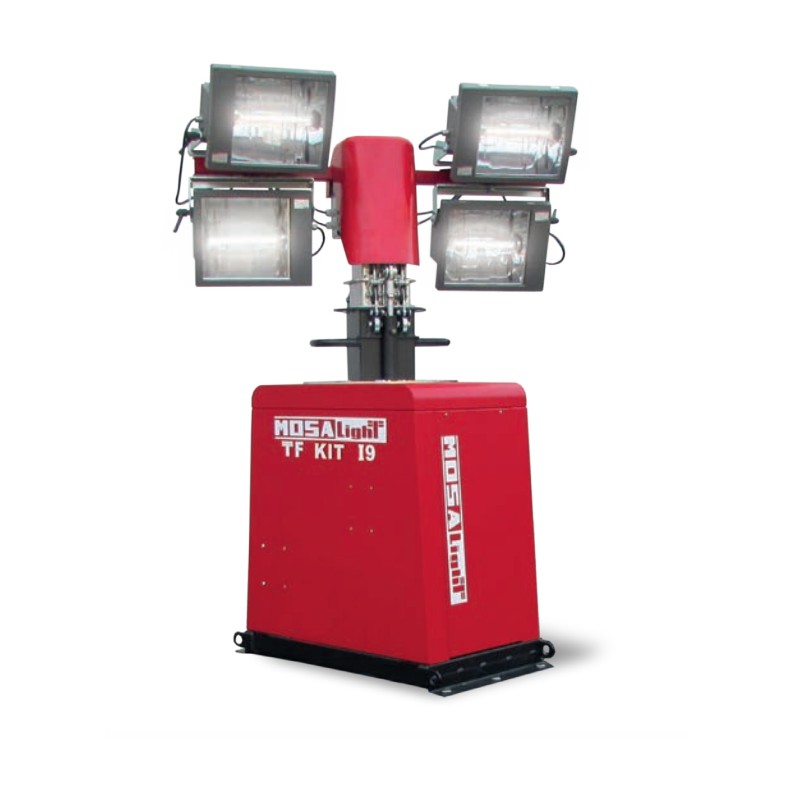

MOSA TF KIT I 9 - Mobile Light Tower on Base
MOSA TF KIT I 9 is a lighting tower mounted on a base designed for mounting on a frame . This lighting tower is supplied without an integrated generator and is ideal for positioning and transport on mobile vehicles such as trucks, vans, or on a special trailer approved for road circulation. Ideal for use in the construction, rental, events, and emergency sectors, it can reach a height of 9 meters . MOSA
MOSA TF KIT I 9 is available in three different types of lamps depending on the use, options selectable from the drop-down menu:
- 4 LED lamps 240 W
- 4 LED lamps 350 W
- 4 1000W metal halide lamps
The lamps can illuminate up to 2500 m2, 4800 m2 and 4200 m2 respectively and it is also possible to manually rotate the pole by 340° .
Available Versions
The MOSA TF KIT I 9 lighting tower with base is available in three different lamp versions:
TF KIT I 9 J-4x1000
- 4 1000W metal halide lamps with single-phase power cable
- Illuminated area: 4200 m2 - 25 Lux average
- Total Lumens: 340000
- Weight: 790 kg (excluding generator)
TF KIT I 9 L-4X240
- 4 x 240W LED lamps
- Illuminated area: 2500 m² - 42 Lux average
- Total lumens: 153480
- Battery life: 44 hours
TF KIT I 9 L-4x350
- 4 x 350 W - LED
- Illuminated area: 4800 m2
- Average Lux: 30
- Total Lumens: 223,820
Technical Specifications
The MOSA TF KIT I 9 Lighting Tower has a base designed for mounting on a frame and 4 extendable and foldable stabilizers together with a convenient front wheel for movement. Its galvanized telescopic pole can reach 9 meters in height with hydraulic lifting . This lighting tower also features lifting hooks . The pole can be manually rotated 340° and the light projectors can be manually adjusted on two axes.
This light tower perfectly combines long-lasting, energy-efficient lamps with a design that allows for easy maintenance of the light tower and a rounded-edge fairing designed to drain off rainwater.
Fields of application
- Gas, oil and mining sites
- Constructions
- Emergency
- Military applications
- Special Events
- Hard-to-reach areas
Characteristics
- Lighthouse Tower without Generator
- Structure on base for fixing on frame
- Height 9 m
- LED or METAL HALIDE or HALOGEN headlights
- Ideal Construction Site / Night Work / Emergency Response
- Hydraulic lifting
Technical Data
| Model | TF KIT I 9 L-4X240 | TF KIT I 9 J-4x1000 | TF KIT I 9 L-4X350 |
| Towing | - | - | - |
| Power Supply | Single-phase | Single-phase | Single-phase |
| Headlights | 4 x 240W LEDs | 4 x 1000W metal halide lamps | 4 x 350W LEDs |
| Maximum Extension | 9 m | 9 m | 9 m |
| Lifting | hydraulic | hydraulic | hydraulic |
| Generator | not included | not included | not included |
| Max. reachable surface area. | 2500 m² | 4200 m² | 4800 m² |
| Structure | Galvanized | Galvanized | Galvanized |
| Stabilizers | 4 extendable and foldable | 4 extendable and foldable | 4 extendable and foldable |
| Motor | - | - | - |
| Dimensions when open | 141 x 60 x 860 cm | 141 x 60 x 860 cm | 141 x 60 x 860 cm |
| Dry weight | 400 kg | 400 kg | 400 kg |
