MOSA TF II 9 Y
Lighting Tower on Approved Trolley

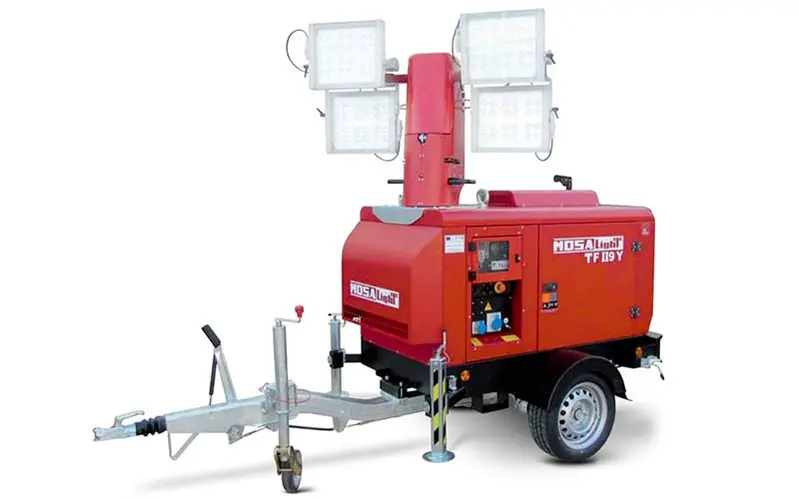

MOSA TF II 9 Y - Telescopic Lighting Tower on Approved Road Towing Trolley

MOSA TF II 9 Y is a Lighting Tower equipped with trailer approved for road towing and with integrated generator available with two different YANMAR 3TNV80 or KOHLER KDW 1003 engines. The presence of the towing trolley allows the lighting tower to be coupled to a mobile unit for road transport.
The galvanized telescopic pole capable of reaching 9 meters in height together with the possibility of choosing three different types of lamps depending on the use make this lighting tower with trailer the perfect choice for construction sites, road works , events and rentals.

Equipped with a 8 kVA single-phase 4-pole Super Silenced Generator, it can illuminate up to 4,800 m2. It is an easily transportable lighting tower capable of offering an autonomy of up to 230 ha depending on the type of light used (LED or METAL HALIDE). The telescopic pole is hydraulically lifted and it is also possible to manually rotate the pole by 340° .

Versions Available

The MOSA TF II 9 Y light tower with road trolley is available in three different lamp versions:

TF II 9 Y J-4x1000

• 4 x 1000 W - METAL HALIDE
• Illuminated area: 4200 m2
• Average lux: 25
• Total lumens: 340,000

TF II 9 Y L-4x240

• 4 x 240W - LEDs
• Illuminated area: 4800 m2
• Average lux: 21
• Total lumens: 153,476

TF II 9 Y L-4x350

• 4 x 240W - LEDs
• Illuminated area: 4800 m2
• Average lux: 30
• Total Lumens: 223,820

It is also possible to choose between two different motors to mount on your Light Tower by selecting between:

Functional specifications

Thanks to the presence of the trolley approved for road towing, the MOSA TF II 9 Y Lighting Tower can be easily transported and moved to the various construction sites and/or places of need. This Lighting Tower perfectly combines four elements that make it the best solution for night work or in difficult visibility conditions. These elements are the long-lasting and energy-efficient lamps ; the engine that combines extremely compact dimensions with very high performance, super silent and with low fuel consumption; the low-maintenance single-phase alternator ; the design that allows easy maintenance of the light tower and with rounded edges fairing designed to drain the rain.

Technical specifications

MOSA TF II 9 Y has a galvanized telescopic mast that can be extended up to max. 9 meters high with hydraulic lift . This light tower guarantees wind stability up to 80 km/h also thanks to the presence of two adjustable stabilizers . This Street Lighting Tower has a large 110 L tank with water cooling . Degree of protection IP 44.

Fields of application

• Gas, oil and mining sites
• Buildings
• Emergency
• Military applications
• Special events
• Hard to reach areas

Characteristics

• Lighthouse Tower with Generator
• Equipped with trolley approved for road transport
• Height 9m
• Diesel generator 8 kVA
• LED or METAL HALIDE lights
• Ideal Construction Site / Night Work / Emergency
• Hydraulic lift
