MOSA TF II 9 Y
Lighthouse Tower with Telescopic Base

9m - 4 x 240÷1000W
Integrated generator 8 kVA
Max. 4800 m²

MPN: C04Q10F0

Motore

MPN: C04Q10F0

Lamps
description Quotation Request
Private Negotiation
Private Negotiation
Personalised Quotations
Tested Product
Tested Product
Ready to Use
Need Help?
Need Help?
Ask The Expert
reso facile Warranty 2 years
reso facile 15 days to return
spedizione su bancale Shipped on Pallet
  • paypal
  • visa
  • mastercard
  • contrassegno
  • soisy
  • bonifico
  • scalapay
You can choose the Secure Payment method you prefer

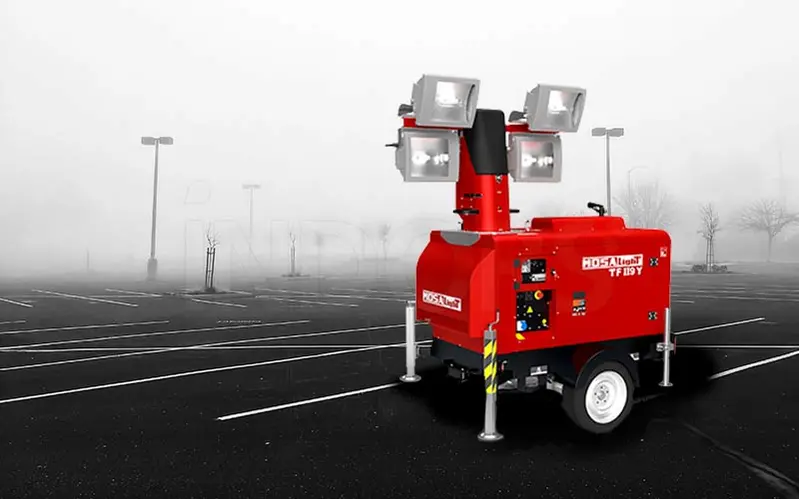

MOSA TF II 9 Y - Telescopic Lighting Tower on Base

MOSA TF II 9 Y light tower with integrated generator available with two different YANMAR 3TNV80 or KOHLER KDW 1003 engines. The galvanized telescopic pole capable of reaching 9 meters in height together with the possibility of choosing three different types of lamps depending on the use make this lighting tower the perfect choice for construction sites, road works, events and rentals.

Equipped with a 8 kVA single-phase 4-pole Super Silenced Generator, it can illuminate up to 4,800 m2. It is an easily transportable lighting tower capable of offering an autonomy of up to 230 ha depending on the type of light used (LED or METAL HALIDE). The telescopic pole is hydraulically lifted and it is also possible to manually rotate the pole by 340° .

MOSA TF II 9 Y - Telescopic Lighting Tower on Mobile Base

Versions Available

The MOSA TF II 9 Y light tower is available in three different lamp versions:

TF II 9 Y J-4x1000

  • 4 x 1000 W - METAL HALIDE
  • Illuminated area: 4200 m2
  • Average lux: 25
  • Total lumens: 340,000

MOSA TF II 9 Y - Lighting Tower with 4 1000 W iodide lights

TF II 9 Y L-4x240

  • 4 x 240W - LEDs
  • Illuminated area: 4800 m2
  • Average lux: 21
  • Total lumens: 153,476

MOSA TF II 9 Y - Torre Faro lighting construction sites 4800 sq.m

TF II 9 Y L-4x350

  • 4 x 240W - LEDs
  • Illuminated area: 4800 m2
  • Average lux: 30
  • Total Lumens: 223,820

MOSA TF II 9 Y - Lighting tower for mobile road works

It is also possible to choose between two different motors to mount on your Light Tower by selecting between:

Model Diet Goodwill Stand-by power PRP potency Cylinders / Displacement Regime Cooling down
YANMAR 3TNV80 Diesel Electric 9kW (12.2hp) 8.2kW (11.1hp) 3 / 1267 cm³ 1500 rpm Waterfall
KOHLER KDW 1003 Diesel Electric 8.5kW (11.3hp) 7.7kW (10.3HP) 3 / 1028 cm³ 1500 rpm Waterfall

Functional specifications

The MOSA TF II 9 Y Lighting Tower perfectly combines four elements that make it the best solution for night work or in difficult visibility conditions. These elements are the long-lasting and energy-efficient lamps ; the engine that combines extremely compact dimensions with very high performance, super silent and with low fuel consumption; the low-maintenance single-phase alternator ; the design that allows easy maintenance of the light tower and with rounded edges fairing designed to drain the rain.

Technical specifications

MOSA TF II 9 Y has a galvanized telescopic mast that can be extended up to max. 9 meters high with hydraulic lift . This light tower guarantees wind stability up to 80 km/h also thanks to the presence of two adjustable stabilizers . This Street Lighting Tower has a large 110 L tank with water cooling . Degree of protection IP 44.

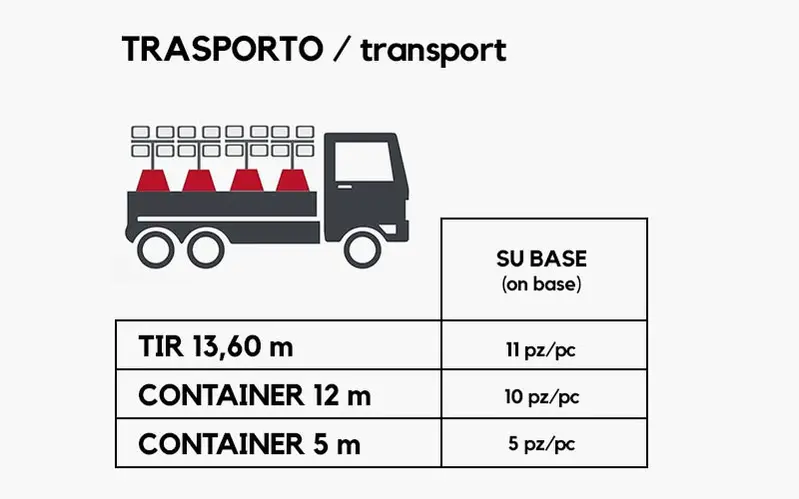

MOSA TF II 9 Y lighting tower for events and construction sites

Fields of application

fields of application Genmac Bellatrix - Motorized Lighting Tower

  • Gas, oil and mining sites
  • Buildings
  • Emergency
  • Military applications
  • Special events
  • Hard to reach areas

Characteristics

  • Lighthouse Tower with Generator
  • Height 9m
  • Diesel generator 8 kVA
  • LED or METAL HALIDE lights
  • Ideal Construction Site / Night Work / Emergency
  • Hydraulic lift

Technical data

Model TF II 9 Y J-4x1000 TF II 9 Y L-4x240 TF II 9 Y L-4x350
Power Supply Diesel Diesel Diesel
Lighthouses 4 x 1000W metal halide 4 x 240W LEDs 4 x 350W LEDs
Maximum Extension 5.5m 5.5m 5.5m
Lift hydraulic hydraulic hydraulic
Generator included - 8 kVA included - 8 kVA included - 8 kVA
Reachable area max. 4200 m² 4800 m² 4800 m²
Structure Galvanized Galvanized Galvanized
stabilizers 2 adjustable 2 adjustable 2 adjustable
Protection Class IP44 IP44 IP44
Insulation class h h h
Wind stability up to max. 80 km/h up to max. 80 km/h up to max. 80 km/h
Motor YANMAR 3TNV80 / KOHLER KDW 1003 YANMAR 3TNV80 / KOHLER KDW 1003 YANMAR 3TNV80 / KOHLER KDW 1003
Autonomy Lamps 75 hours 230 hours 158 h
Open size 113 x 221 x 205h cm 113 x 221 x 205h cm 113 x 221 x 205h cm
Dry weight 910 Kg 885 kgs 895 kgs

Technical data

Model TF II 9 Y J-4x1000 TF II 9 Y L-4x240 TF II 9 Y L-4x350
Power Supply Diesel Diesel Diesel
Lighthouses 4 x 1000W metal halide 4 x 240W LEDs 4 x 350W LEDs
Maximum Extension 5.5m 5.5m 5.5m
Lift hydraulic hydraulic hydraulic
Generator included - 8 kVA included - 8 kVA included - 8 kVA
Reachable area max. 4200 m² 4800 m² 4800 m²
Structure Galvanized Galvanized Galvanized
stabilizers 2 adjustable 2 adjustable 2 adjustable
Protection Class IP44 IP44 IP44
Insulation class h h h
Wind stability up to max. 80 km/h up to max. 80 km/h up to max. 80 km/h
Motor YANMAR 3TNV80 / KOHLER KDW 1003 YANMAR 3TNV80 / KOHLER KDW 1003 YANMAR 3TNV80 / KOHLER KDW 1003
Autonomy Lamps 75 hours 230 hours 158 h
Open size 113 x 221 x 205h cm 113 x 221 x 205h cm 113 x 221 x 205h cm
Dry weight 910 Kg 885 kgs 895 kgs
