MOSA TF IM 5.5 Y
Compact Lighthouse Tower

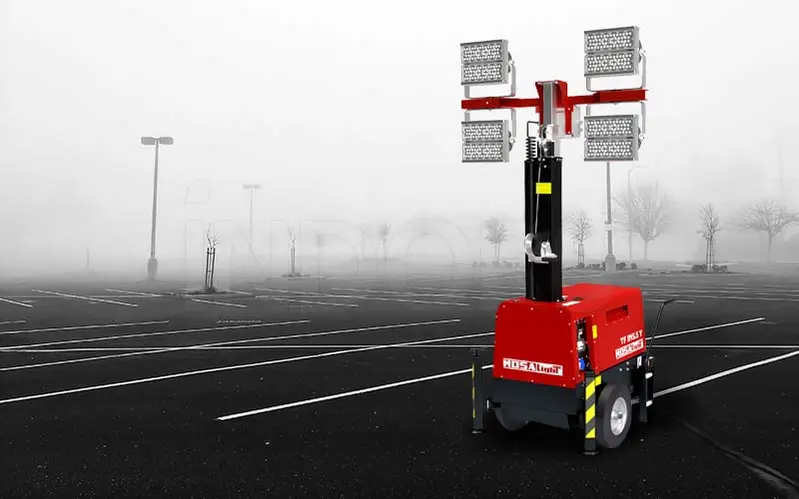

MOSA TF IM 5.5 Y - Compact Lighting Tower with Integrated Generator

Compact Lighting Tower easy to maneuver and with telescopic extension up to 5.5 m . Equipped with a super-silenced 4.2 kVA generator , it can illuminate up to 2,500 m2 thanks to the various lamp options available (4x150 W LED, 4x240 W LED, 4x400 W METAL HALIDE). It is an easily transportable light tower able to offer an autonomy of 44 hours (LED).
The telescopic mast is manually lifted while the engine is a Yanmar Stage 5 single cylinder .

Versions Available

The MOSA TF IM 5.5 Y light tower is available in three versions with different lamps:

TF IM5.5Y L-4X150

• 4 x 150W LED lamps
• Illuminated area: 2000 m² - 30 Lux average
• Total lumens: 89900
• Autonomy: 44 hours

TF IM5.5Y L-4X240

• 4 x 240W LED lamps
• Illuminated area: 2500 m² - average 42Lux
• Total lumens: 153480
• Autonomy: 44 hours

TF IM5.5Y J-4X400

• 4 W metal halide lamps
• Illuminated area: 1800 m2 - 19 Lux average
• Total lumens: 140000
• Autonomy: 32 hours

Functional specifications

The MOSA TF IM 5.5 Y Lighting Tower perfectly combines four elements that make it the best solution for night work or in difficult visibility conditions. These elements are the long-lasting and energy-efficient lamps ; the engine that combines extremely compact dimensions with very high performance, super silent and with low fuel consumption; the low-maintenance single-phase alternator ; the design that allows easy maintenance of the light tower and with rounded edges fairing designed to drain the rain.

Technical specifications

MOSA TF IM 5.5 Y has a galvanized telescopic mast that can be extended up to max. 5.5 meters high with manual lift . This light tower guarantees wind stability up to 80 km/h also thanks to the presence of two adjustable and removable stabilizers . The generator tank has a capacity of 23 L of Diesel while its engine is of the Yanmar L70 type with electric start , max. 4.5 kW , displacement 320 cm³ for 3000 rpm . Cooling is by air .

The size of MOSA TF IM 5.5 Y when closed is 1125 x 1256 x 2236 mm while when open it is 1853 x 1380 x 5500 mm for a total dry weight of 335 kg.
Acoustic power LpA 68 dbA@7m.

Fields of application

• Gas, oil and mining sites
• Buildings
• Emergency
• Military applications
• Special events
• Hard to reach areas

Characteristics

• Lighthouse Tower with Generator
• Compact and easy to manoeuvre
• Height 5.5m
• Diesel generator 4.2 kVA
• LED or METAL HALIDE lights
• Ideal Construction Site / Night Work / Emergency
