GenSet LT 5000 Y
Lighthouse Tower with Generator
MPN: LT 5000 Y
230V - 4 kW (kVA)
6 HP
DIESEL
Warranty 2 years
14 days to change your mind
Shipped on Pallet

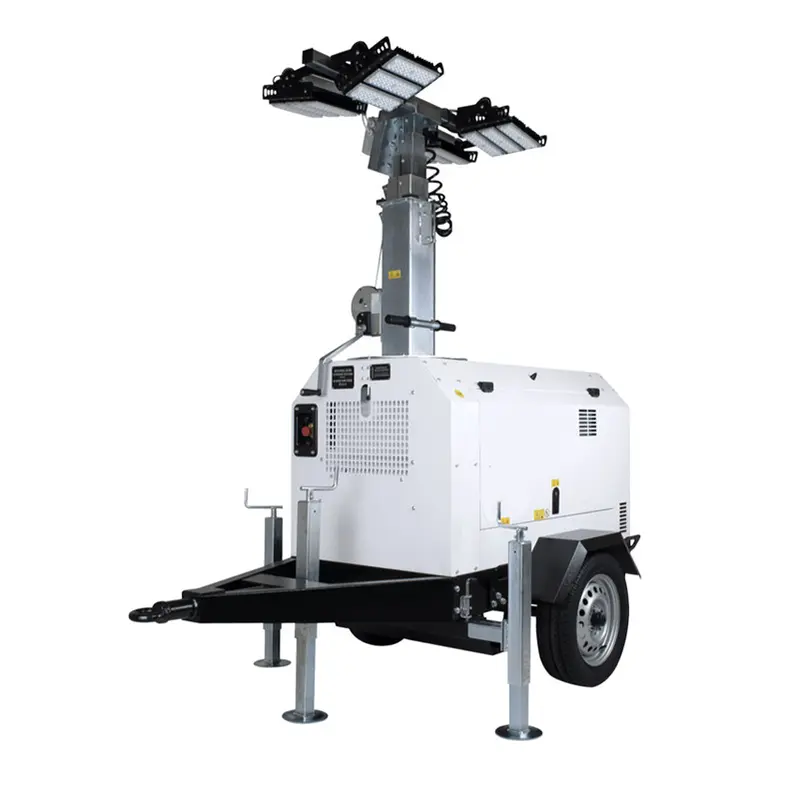

GenSet LT 5000 Y - Light Tower 8 m Yanmar engine
The GenSet LT 5000 Y is a light tower with a 4 KVA single-phase diesel generator with electric start. With a maximum height of 8 m and thanks to its 4 LED lamps of 150 W each , the GenSet LT 5000 Y light tower It can illuminate an area of 3400 m² .
GenSet LT 5000 Y has low fuel consumption: only 1 L/h at 75% load. The GenSet LT 5000 Y light tower, thanks to the high quality and efficiency of its components.
Ideal for illuminating various sites: from small sites to large construction sites . GenSet LT 5000 Y is a lighting tower designed for night-time maintenance, emergency response and civil protection work .
Functional specifications

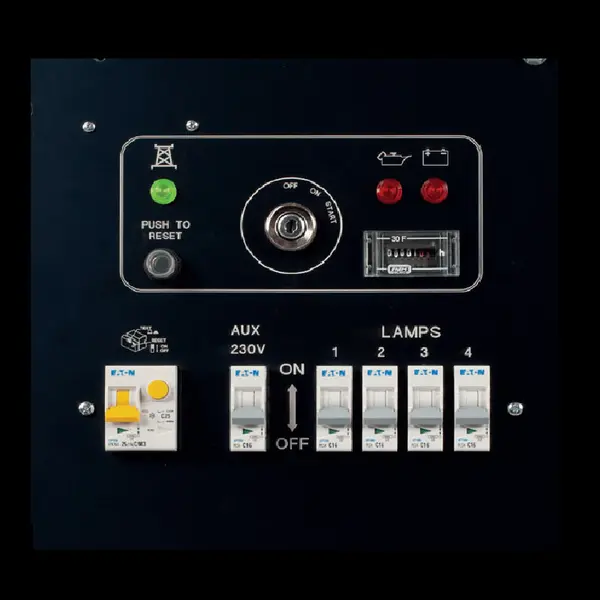

Complete control panel
This GenSet LT 5000 Y light tower with silenced generator is equipped with a Yanmar 3000 rpm engine. The GenSet light tower has a control panel with:
- Hour meter
- Differential thermal switch
- Lamp switch
Safety devices for light tower
GenSet LT 5000 Y is a professional lighting tower complete with:
- Automatic shutdown device (low oil pressure, battery failure)
- Alarm lamps (low pressure, charge failure, voltage presence)
- 12V battery
- Fuel gauge
- 3 stabilizers
- Trolley with 2 pneumatic wheels and tiller
Dimensions of the LT 5000 Y light tower in mm
This 8m high light tower (340° rotation) with - 4 x 150W LED lamps - 110,000 lm, illuminates an area of 3400 m².
Application sectors
- Small Sites
- Big Construction Sites
- Night Work Maintenance
- Emergency Response
- Civil Protection
Characteristics
- Lighthouse Tower with Generator
- Lightweight and Compact
- Yanmar engine 3000 rpm
- LED headlights
- Ideal Construction Site / Night Work / Emergency Response
Technical Data
| Power Supply | 230V |
| Max Power | 4kW (kVA) |
| AC Generator | Synchronous |
| Power Factor | what is 0.8 |
| Motor | Yanmar L70V |
| Engine RPM | 3000 rpm |
| Number of Cylinders | 1 |
| Power | 6 HP |
| Displacement | 320cc |
| Start-up | Electric |
| Fuel Tank | 100 L |
| Insulation Class | H |
| Protection Class | IP 23 |
| Room temperature | 40 °C |
| Altitude | 1000 m |
| Dimensions | 254.8 x 152 x 248.8 cm |
| Max Dimensions | 254.8 x 260.4 x 904 cm |
| Weight | 500 kg |
Technical Data
| Power Supply | 230V |
| Max Power | 4kW (kVA) |
| AC Generator | Synchronous |
| Power Factor | what is 0.8 |
| Motor | Yanmar L70V |
| Engine RPM | 3000 rpm |
| Number of Cylinders | 1 |
| Power | 6 HP |
| Displacement | 320cc |
| Start-up | Electric |
| Fuel Tank | 100 L |
| Insulation Class | H |
| Protection Class | IP 23 |
| Room temperature | 40 °C |
| Altitude | 1000 m |
| Dimensions | 254.8 x 152 x 248.8 cm |
| Max Dimensions | 254.8 x 260.4 x 904 cm |
| Weight | 500 kg |
